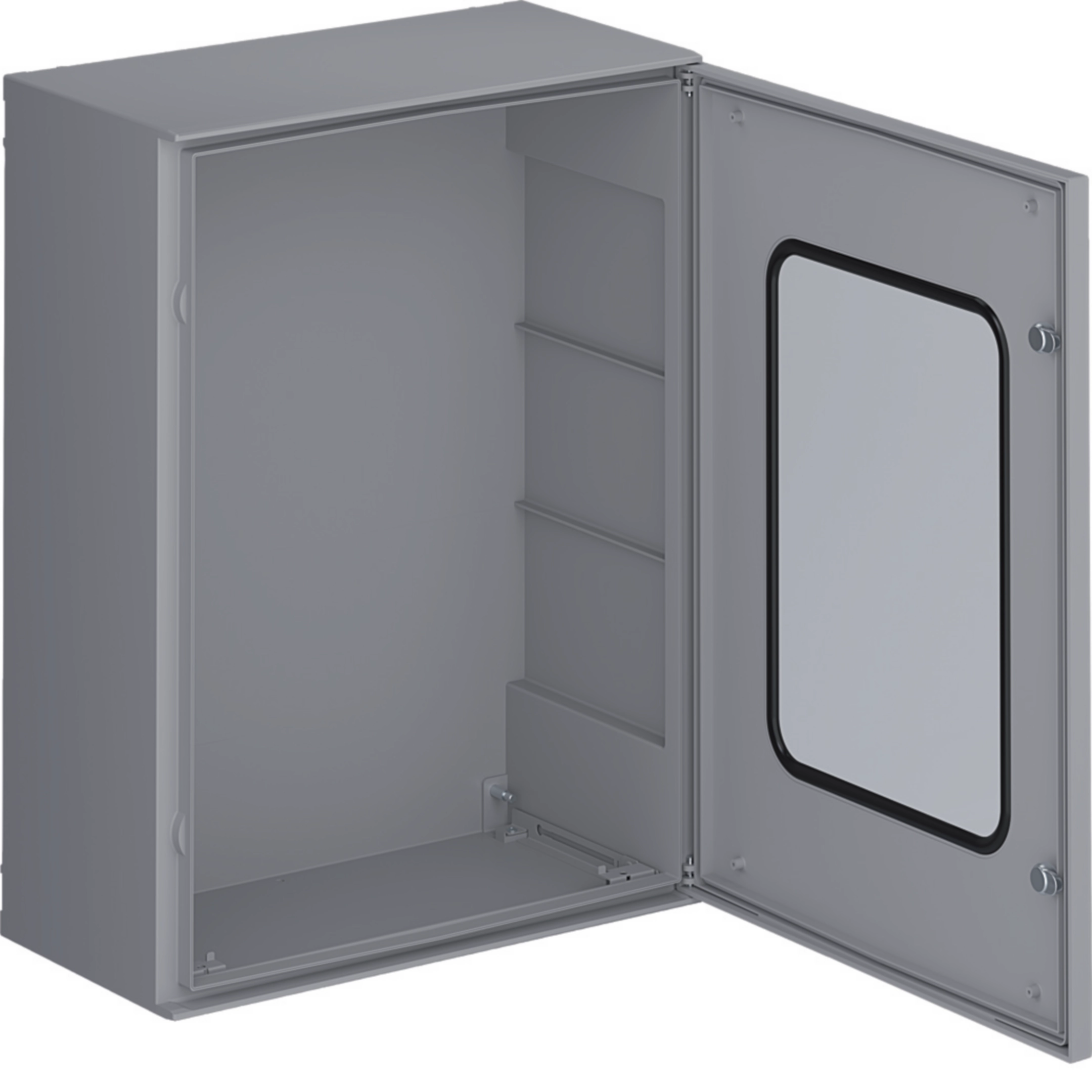

Polyester enclosure, Orion.Plus, glazed door 800x600x300 mm FL279B

EAN
3250610670965
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Polyester enclosure, Orion.Plus, glazed door 800x600x300 mm

FL279B

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (48)
    • Distrib­utor assembly for serial built-in device 5 products available
    • Mounting plate for distri­bu­tion board 8 products available
    • Lock system 5 products available
    • Door/­op­er­ating panel 2 products available
    • DIN rail 3 products available
    • Blanking plate for enclosure 4 products available

    Complete your system

    • Distrib­utor assembly for serial built-in device
    • Mounting plate for distri­bu­tion board
    • Lock system
    • Door/­op­er­ating panel
    • DIN rail
    • Blanking plate for enclosure
    • Key for enclos­ures/cab­inets
    • Heater for enclosure
    • Insert for lock system
    • Mounting accessories
    • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy
    • Accessor­ies/s­pare parts for earthing and light­ning
    • Cover strip
    • Vent­il­ator for enclosure
    • Base/­base element
    • FL996A

      MCB complete kit, Orion.Plus, 5x24M, 750x600 mm, System C
      0.00 €  / *
    • FL373A

      Kit MCCB x160, Orion.Plus, 300x600 mm
      0.00 €  / *
    • FL380AH

      Kit MCCB x250, Orion.Plus, 200x600 mm
      0.00 €  / *
    • FL364A

      Kit system MCB, Orion.Plus, 150x600 mm
      0.00 €  / *
    • FL368A

      Kit system MCB, Orion.Plus, 200x600 mm
      0.00 €  / *
    • FL479A

      Steel mounting plate, Orion.Plus, 780x543 mm
      0.00 €  / *
    • FL415A

      Steel mounting plate, Orion.Plus, 780x443 mm
      0.00 €  / *
    • FL429A

      Insulated mounting plate, Orion.Plus, 735x545 mm
      0.00 €  / *
    • FL316A

      Adjustable steel mounting plate, Orion.Plus, 404x145 mm
      0.00 €  / *
    • FL326A

      Adjustable steel mounting plate, Orion.Plus, 404x195 mm
      0.00 €  / *
    • FL336A

      Adjustable steel mounting plate, Orion.Plus, 404x295 mm
      0.00 €  / *
    • FL346A

      Adjustable steel mounting plate, Orion.Plus, 404x395 mm
      0.00 €  / *
    • FL705E

      Insulated front panel, Orion.Plus, 50x800 mm
      0.00 €  / *
    • FL96Z

      Triangular lock plus handle, Orion.Plus
      0.00 €  / *
    • FL95Z

      Pair leave inserts, Orion.Plus, 3 mm
      0.00 €  / *
    • FL93Z

      Pair triangle insert, Orion.Plus, 8 mm
      0.00 €  / *
    • FL80Z

      Pair square key inserts, Orion.Plus, 8 mm
      0.00 €  / *
    • FL82Z

      Pair square key inserts, Orion.Plus, 6 mm
      0.00 €  / *
    • FL555A

      Steel inner door, Orion.Plus steel, 800x600 mm
      0.00 €  / *
    • FL649A

      Polyester inner door, Orion.Plus polyester, 800x600 mm
      0.00 €  / *
    • FL502A

      Clamp DIN rail, Orion.Plus, 28 M W600 mm
      0.00 €  / *
    • FL495A

      Clamp bracket, Orion.Plus, W600 mm
      0.00 €  / *
    • FL466A

      Functional uprights, Orion.Plus, H800 mm
      0.00 €  / *
    • FL714E

      Insulated front panel, Orion.Plus, 150x600 mm
      0.00 €  / *
    • FL704E

      Insulated front panel, Orion.Plus, 50x600 mm
      0.00 €  / *
    • FL724E

      Insulated front panel, Orion.Plus, 200x600 mm
      0.00 €  / *
    • FL734E

      Insulated front panel, Orion.Plus, 300x600 mm
      0.00 €  / *
    • FL99Z

      Triangular key, Orion.Plus, RAL7046
      0.00 €  / *
    • FL259Z

      Thermostat, quadro.system, 10 A 230 V AC
      0.00 €  / *
    • FL254Z

      Heaters, quadro.system, 45 W 230 V AC/DC
      0.00 €  / *
    • FL255Z

      Heaters, quadro.system, 80 W 230 V AC/DC
      0.00 €  / *
    • FL256Z

      Heaters, quadro.system, 150 W 230 V AC/DC
      0.00 €  / *
    • FL98Z

      Pair inserts for key and sealing handle, Orion.Plus
      0.00 €  / *
    • FL97Z

      Pair leave inserts, Orion.Plus, 3 mm
      0.00 €  / *
    • FL94Z

      Pair triangle insert, Orion.Plus, 8 mm
      0.00 €  / *
    • FL81Z

      Pair square key inserts, Orion.Plus, 8 mm
      0.00 €  / *
    • FL77Z

      Insert lock for rotary handle, Orion.Plus, 6x6 mm
      0.00 €  / *
    • FL672E

      Sliding guides, Orion.Plus, L350 mm
      0.00 €  / *
    • FL450A

      Fixing bracket for mounting plate, Orion.Plus
      0.00 €  / *
    • FL863Z

      Wall ins. fixing brackets, Orion.Plus polyester
      0.00 €  / *
    • FL85Z

      Wall steel fixing brackets, Orion.Plus steel
      0.00 €  / *
    • FL874A

      Ground wire kit, Orion.Plus
      0.00 €  / *
    • FL871Z

      Blanking strips 4 Mod, Quadro.Plus, 6 pieces
      0.00 €  / *
    • FL216Z

      Fan, quadro.system, 67W 520m3/h
      0.00 €  / *
    • FL214Z

      Fan, quadro.system, 32W 240 m3/h
      0.00 €  / *
    • FL212Z

      Fan, quadro.system, 20W 115 m3/h
      0.00 €  / *
    • FL210Z

      Fan, quadro.system, 20W 57 m3/h
      0.00 €  / *
    • FL960A

      Plinth, Orion.Plus, H150 600x300 mm
      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      800 mm
    • Width
      600 mm
    • Depth
      300 mm
    • Thick­ness of side­wall
      3 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP66
    • Protec­tion class
      Isol­a­tion class II
    • Locking type
      3-Side 7 mm, Key lock
    • Impact resist­ance IK
      IK08
    Equip­ment
    • Number of flange plate open­ings
      0
    • Number of rows
      5
    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    • Suit­able for outdoor usage
      Yes
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Untreated
    • Material
      Glass rein­forced poly­ester
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      2
    • Door/­cover is trans­parent
      Yes
    Elec­tric current
    • Rated current
      125 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - Steel enclosure, Orion.Plus, plain door 650x500x200 mm (english)
    PDF
    3,44 MB
    Hager REACH declaration FL279B
    PDF
    Hager RoHS report FL279B
    PDF

    Downloads

    • Product image

      Image FL279B | Hager

      Product Image FL279B

    • Product datasheet

      Image Hager Product data sheet FL279B | Hager

      Hager Product data sheet FL279B

      Polyester enclosure, Orion.Plus, glazed door 800x600x300 mm

      PDF

    • BIM Revit objects

      Image Range : Orion Plus.Enclosure - IP66 - Class II - Depth 300 mm - English - Hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Orion Plus.Enclosure - IP66 - Class II - Depth 300 mm - English - Hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,81 MB
      Image Range : Orion Plus.Enclosure - IP66 - Class II - Depth 300 mm - English - Non hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Orion Plus.Enclosure - IP66 - Class II - Depth 300 mm - English - Non hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      2,51 MB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-07-06

      PDF
      195,93 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-02-24

      PDF
      818,77 kB
