Remote Control Dimmer universal 500W

EVN004

EVN004 - Remote Control Dimmer universal 500W
  • Modular devices

Remote Control Dimmer universal 500W EVN004

EAN
3250617573979
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • More products

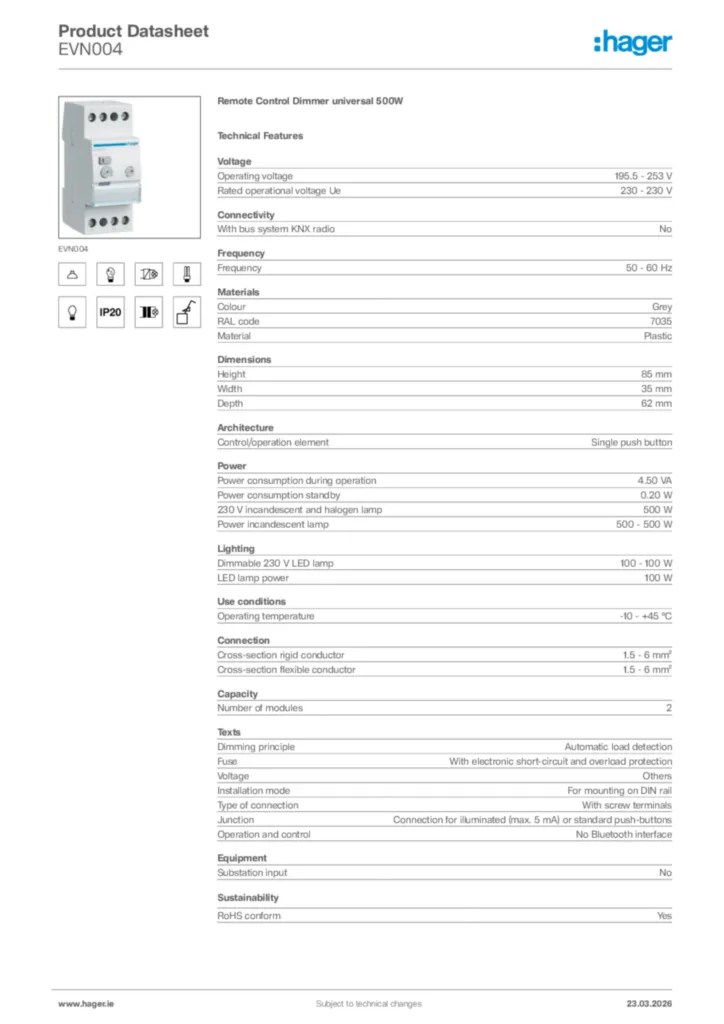

Download the data sheet

Complete your system

Optional accessories

  • Mech­anic accessories for low-voltage compon­ents 1 products available

Complete your system

  • Mech­anic accessories for low-voltage compon­ents
  • LZ060

    Heat dissipation insert

    0.00 €  / *
    Add to a list
    Add to a list

Technical properties

Voltage
  • Oper­ating voltage
    195.5 - 253 V
  • Rated oper­a­tional voltage Ue
    230 - 230 V
Connectivity
  • With bus system KNX radio
    No
Frequency
  • Frequency
    50 - 60 Hz
Mater­ials
  • Colour
    Grey
  • RAL code
    7035
  • Material
    Plastic
Dimen­sions
  • Height
    85 mm
  • Width
    35 mm
  • Depth
    62 mm
Archi­tec­ture
  • Control/­op­er­a­tion element
    Single push button
Power
  • Power consump­tion during oper­a­tion
    4.50 VA
  • Power consump­tion standby
    0.20 W
  • 230 V incan­des­cent and halogen lamp
    500 W
  • Power incan­des­cent lamp
    500 - 500 W
Lighting
  • Dimmable 230 V LED lamp
    100 - 100 W
  • LED lamp power
    100 W
Use condi­tions
  • Oper­ating temper­ature
    -10 - +45 °C
Connec­tion
  • Cross-sec­tion rigid conductor
    1.5 - 6 mm²
  • Cross-sec­tion flex­ible conductor
    1.5 - 6 mm²
Capa­city
  • Number of modules
    2
Texts
  • Dimming prin­ciple
    Auto­matic load detec­tion
  • Fuse
    With elec­tronic short-­cir­cuit and over­load protec­tion
  • Voltage
    Others
  • Install­a­tion mode
    For mounting on DIN rail
  • Type of connec­tion
    With screw terminals
  • Junc­tion
    Connec­tion for illuminated (max. 5 mA) or standard push-but­tons
  • Oper­a­tion and control
    No Bluetooth interface

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

REACH declaration EVN004 (english)
PDF
103,10 kB
RoHS declaration EVN004 (english)
PDF
103,84 kB
