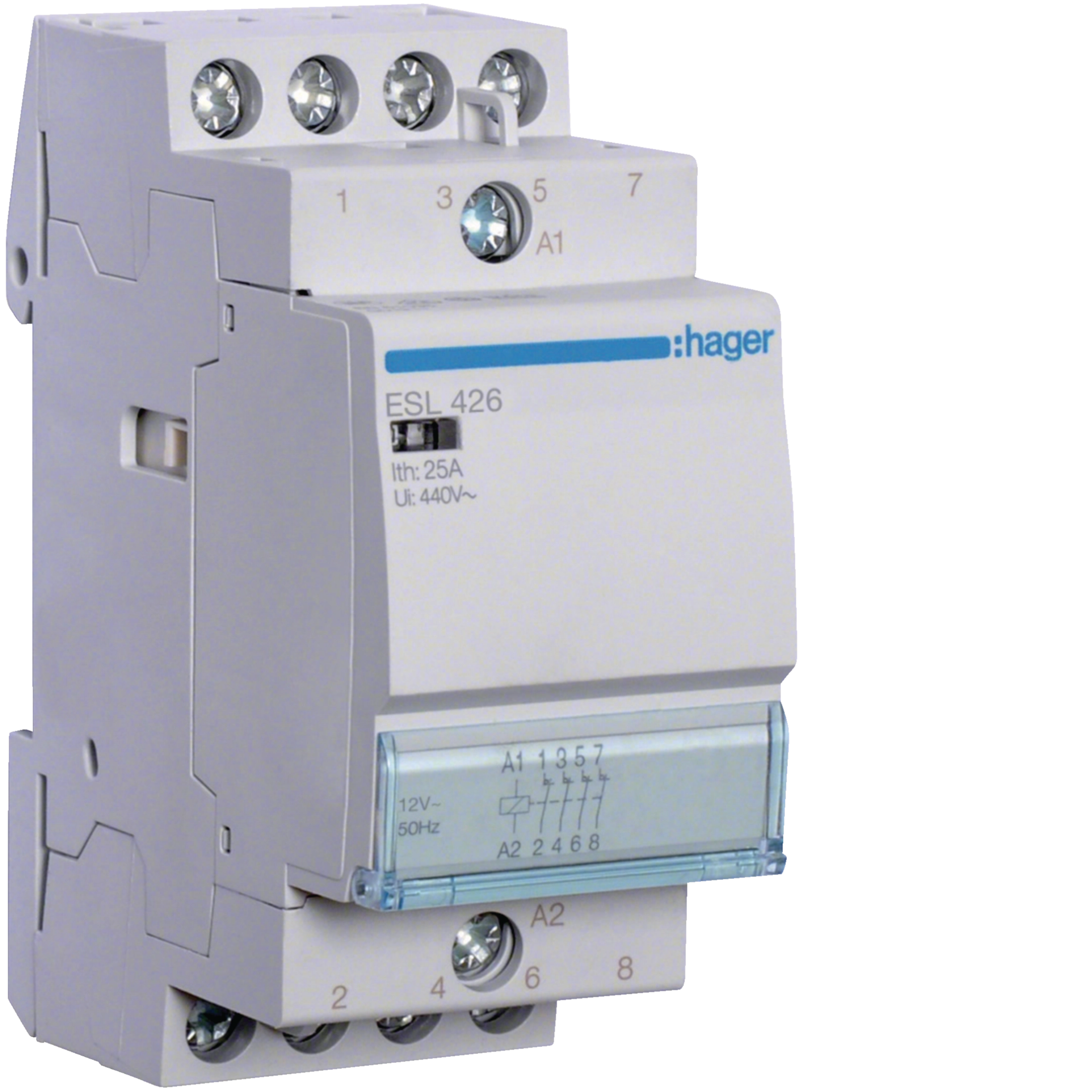

Contactor 25A, 4NC, 12V~ 50Hz ESL426
EAN
3250612400966
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliary device for distribution board devices 1 products available -
Mechanic accessories for low-voltage components 1 products available -
Safety transformer 1 products available
Technical properties
Connection
-
Type of contacts4NC
-
Number of contacts4
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1 - 10 mm²
Electric current
-
Rated current25 A
Capacity
-
Number of modules2
Frequency
-
Frequency50 - 50 Hz
Voltage
-
Rated impulse withstand voltage Uimp4,000 V
-
Rated insulation voltage Ui440 V
-
Rated operational voltage Ue400 - 400 V
-
Command voltage AC12 - 12 V
-
Command voltage DC0 - 0 V
Use conditions
-
Operating temperature-10 - 50 °C
-
Storage/transport temperature-40 - 80 °C
Endurance
-
Number of mechanical operations100,000
-
Electric endurance in number of cycles30,000
Power
-
Total power loss under IN6 W
-
Inrush power absorbed21 VA
Dimensions
-
Height83 mm
-
Width35.75 mm
-
Depth60 mm
Equipment
-
Number of NO contacts0
-
Number of NC contacts4
-
With switch for manual switchNo
Installation, mounting
-
Nominal tightening torque1.20 - 1.20 Nm
