    EAN
    3250612231454
    Packaging
    1 Piece
    • Energy meters

    3 Phase kWhmeter via CT 1A or 5A 4M MODBUS MID ECR300C

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    3 Phase kWhmeter via CT 1A or 5A 4M MODBUS MID

    ECR300C

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Archi­tec­ture
    • Bus system
      MODBUS
    • Type of pole
      3P+N
    Elec­tric current
    • Rated current
      5 A
    • Maximum meas­uring circuit current
      6 A
    Capa­city
    • Number of modules
      4
    Connectivity
    • Connectivity type
      ModBus RS-485 3 wires
    Dimen­sions
    • Height
      90 mm
    • Width
      72 mm
    • Depth
      60 mm
    Equip­ment
    • Type of pulse gener­ator
      Optical
    Compat­ib­ility
    • Suit­able for
      Purchase/supply
    Connec­tion
    • Connect­or/plug type Bus system
      Bus connec­tion terminal
    Install­a­tion, mounting
    • Nominal tight­ening torque
      1 - 1 Nm
    • Mounting on
      DIN rail
    Mech­an­ical features
    • Nominal tight­ening torque digital terminal
      0.50 - 0.50 Nm
    Meas­ure­ment
    • Meas­uring system
      Meas­ure­ment trans­former
    • Type of meas­uring instru­ment
      Elec­tronic
    • Current meas­ure­ment range
      0.01 - 6.0 A
    • Meas­ure­ment range voltage Ph-N
      92 - 276 V
    • Meas­ure­ment range voltage Ph-Ph
      160 - 480 V
    • Frequency meas­uring range
      45 - 65 Hz
    Power supply
    • Number of phases for power supply
      4
    Func­tions
    • Accuracy class
      B
    • Tariff type
      T1...T2 (230V AC)/T1...T8 Modbus
    • Is calib­rated
      Yes
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 55 °C
    • Stor­age/trans­port temper­ature
      -25 - 70 °C
    Power
    • Power consump­tion VA
      2 VA
    • Total power loss under IN
      0.60 W
    Frequency
    • Frequency
      50 - 50 Hz

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Hager REACH declaration ECR300C
    PDF
    Hager RoHS report ECR300C
    PDF

    Downloads

    • Product image

      Image ECR300C | Hager

      Product Image ECR300C

    • Product datasheet

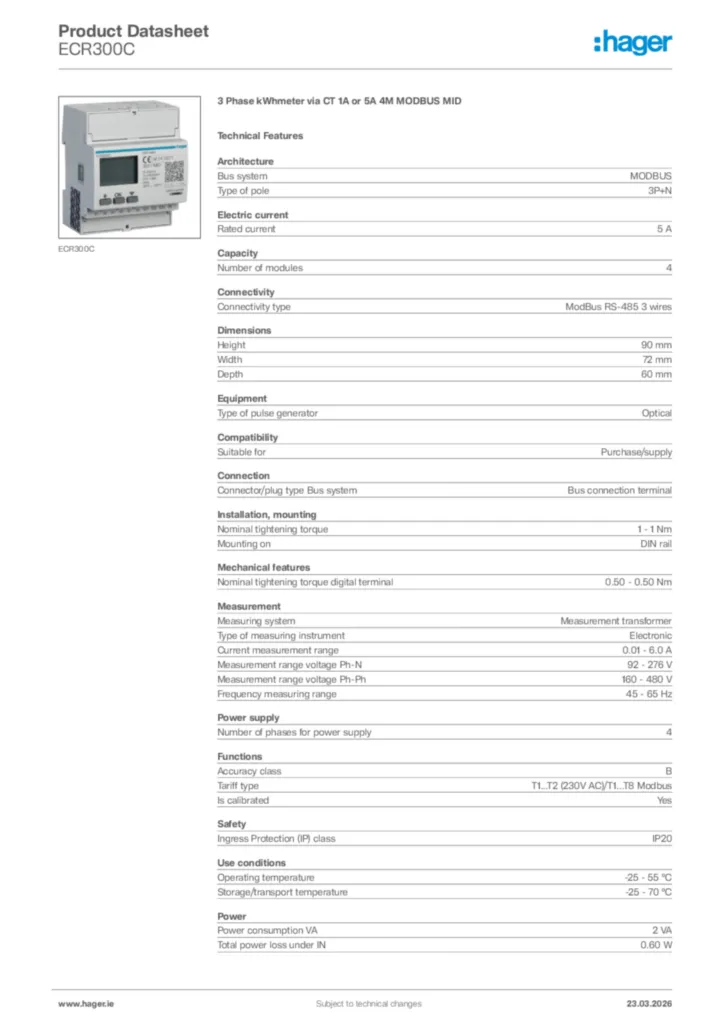

      Image Hager Product data sheet ECR300C | Hager

      Hager Product data sheet ECR300C

      3 Phase kWhmeter via CT 1A or 5A 4M MODBUS MID

      PDF

    • Instruction manual

      Image Instruction manual International 2024-02-21 | Hager

      Instruction manual International 2024-02-21

      PDF
      311,47 kB

    • Product attachment

      Image Modbus table Summary V1 14 | Hager

      Modbus table Summary V1 14

      Product attachment International 2022-10-04

      PDF
      836,11 kB

    • Manual

      Image Installer leaflet ECR300C | Hager

      Installer leaflet ECR300C

      Manual de-DE, en-GB 2024-01-29

      PDF
      3,09 MB

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager

      EU Declaration of Conformity

      Declaration of conformity en-GB 2024-04-15

      PDF
      465,71 kB
