    Current Transformer with RJ45 output BGUK 3-Phase 125A/330mV Class 1 pitch 35mm EC25125CT

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Current Transformer with RJ45 output BGUK 3-Phase 125A/330mV Class 1 pitch 35mm

    EC25125CT

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Specific iden­ti­ficaton attrib­utes for Protec­tion
    • Filter Type product
      3-phase current trans­former replace­ment
    Func­tions
    • Accuracy class
      1
    Dimen­sions
    • Height
      80 mm
    • Width
      105 mm
    • Depth
      54 mm
    • Height of opening
      25 mm
    • Width of opening
      21 mm
    Connectivity
    • Type of connec­tion
      Plug-in connec­tion
    Frequency
    • Frequency
      50 - 50 Hz
    Voltage
    • Rated insu­la­tion voltage Ui
      3,000 V
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 50 °C
    • Stor­age/trans­port temper­ature
      -40 - 85 °C
    Elec­tric current
    • Max. intensity of primary
      125 A
    Install­a­tion, mounting
    • Mounting on
      Busbar, Cable

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    Hager REACH declaration EC25125CT
    PDF
    Hager RoHS report EC25125CT
    PDF

    Downloads

    • Product image

      Image EC25125CT | Hager

      Product Image EC25125CT

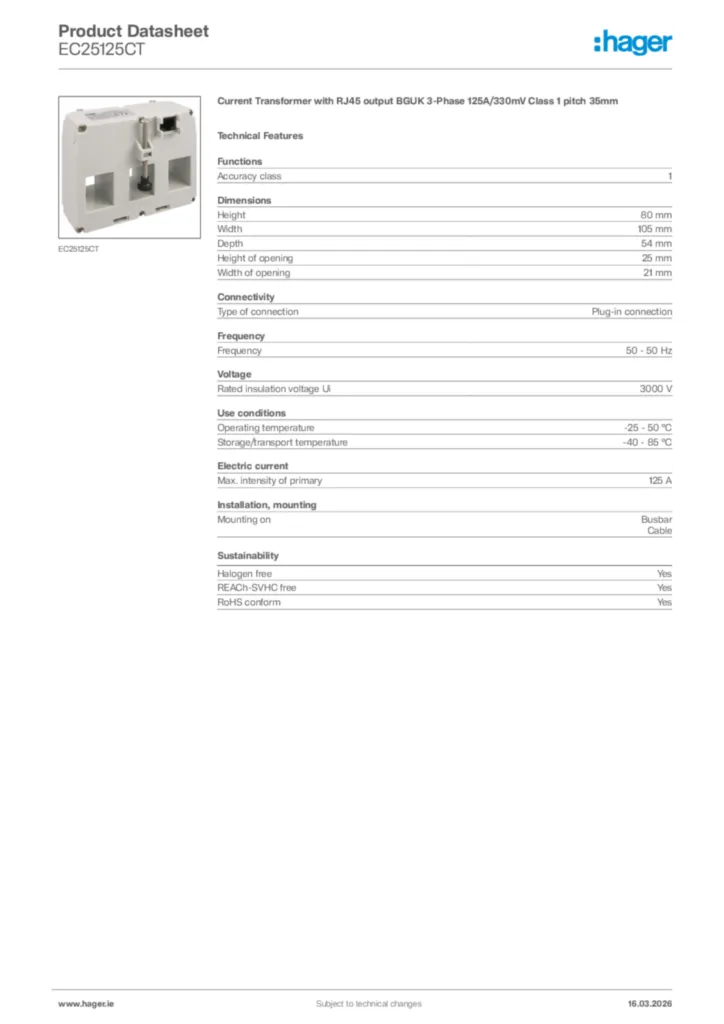

    • Product datasheet

      Image Hager Product data sheet EC25125CT | Hager

      Hager Product data sheet EC25125CT

      Current Transformer with RJ45 output BGUK 3-Phase 125A/330mV Class 1 pitch 35mm

      PDF

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-08-23

      PDF
      142,96 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-08-23

      PDF
      132,32 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      302,50 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      296,11 kB
      Image Declaration of conformity en-GB 2025-07-07 | Hager

      Declaration of conformity en-GB 2025-07-07

      PDF
      255,65 kB
      Image Declaration of conformity en-GB 2025-07-07 | Hager

      Declaration of conformity en-GB 2025-07-07

      PDF
      246,50 kB
      Image Declaration of conformity en-GB 2025-07-07 | Hager

      Declaration of conformity en-GB 2025-07-07

      PDF
      244,86 kB
      Image Declaration of conformity en-GB 2025-07-07 | Hager

      Declaration of conformity en-GB 2025-07-07

      PDF
      257,00 kB
