Residual Current Circuit Breaker (RCCBs / RCDs)

RCCB 4P 63A 300mA A Class CF463J

catalog.pageproduct.productbar_accessories.link
catalog.pageproduct.tab_additional_title.link
catalog.pageproduct.title_sustainability.h2
catalog.pageproduct.title_documents.h2
catalog.pagelevel.related_heading_range.link

product.page.accessories.title

Mechanic accessories for low-voltage components 1 product.page.accessories.products-available

catalog.pageproduct.tab_additional_title.link

Type of pole

3P+N
Number of poles

4

Rated current IN

63 A
Rated residual operating current Idn

300 mA
Breaking and opening capacity Idm

1.50 kA
Rated conditional short-circuit current Inc according to EN61008-1

6 kA
Rated current at -25°C

63 A
Rated current at -20°C

63 A
Rated current at -15°C

63 A
Rated current at -10°C

63 A
Rated current at -5°C

63 A
Rated current at 0°C

63 A
Rated current at 5°C

63 A
Rated current at 10°C

63 A
Rated current at 15°C

63 A
Rated current at 20°C

63 A
Rated current at 25°C

63 A
Rated current at 30°C

63 A
Rated current at 35°C

63 A
Rated current at 40°C

63 A
Rated current at 45°C

60 A
Rated current at 50°C

58 A
Rated current at 55°C

55 A
Rated current at 60°C

51 A
Rated current at 65°C

48 A
Rated current at 70°C

45 A

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect
Nominal tightening torque

2.80 - 2.80 Nm

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Rated operational voltage Ue

230 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4,000 V
Max. operating voltage

440 V

Frequency

50 - 50 Hz

Number of modules

4

Suitable for DIN Rail

catalog.pageproduct.attribute_boolean.yes

Residual current type

A
Ingress Protection (IP) class

IP20

Cross-section of output with screws, for massive conductors

1 - 25 mm²
Cross-section of output with screws, for flexible conductors

1 - 16 mm²
Cross-section flexible conductor

16 mm²
Cross-section rigid conductor

25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²

Power dissipation at IN

19.70 W

Max. altitude

2,000 m
Operating temperature

-25 - 40 °C

Electric endurance in number of cycles

2,000
Number of mechanical operations

4,000

Height

83 mm
Width

70 mm
Depth

70 mm

catalog.pageproduct.title_sustainability.h2

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link

RoHS conform Yes

catalog.pageproduct.sustainability_block.downloads_h3

PEP - RCCB 4P 40A 30mA A Class (English)

PDF

23,23 MB

REACH declaration CF463J

PDF

RoHS report CF463J

PDF

catalog.pageproduct.title_asset.h2

Product image

catalog.pageproduct.title_product_image.div CF463J

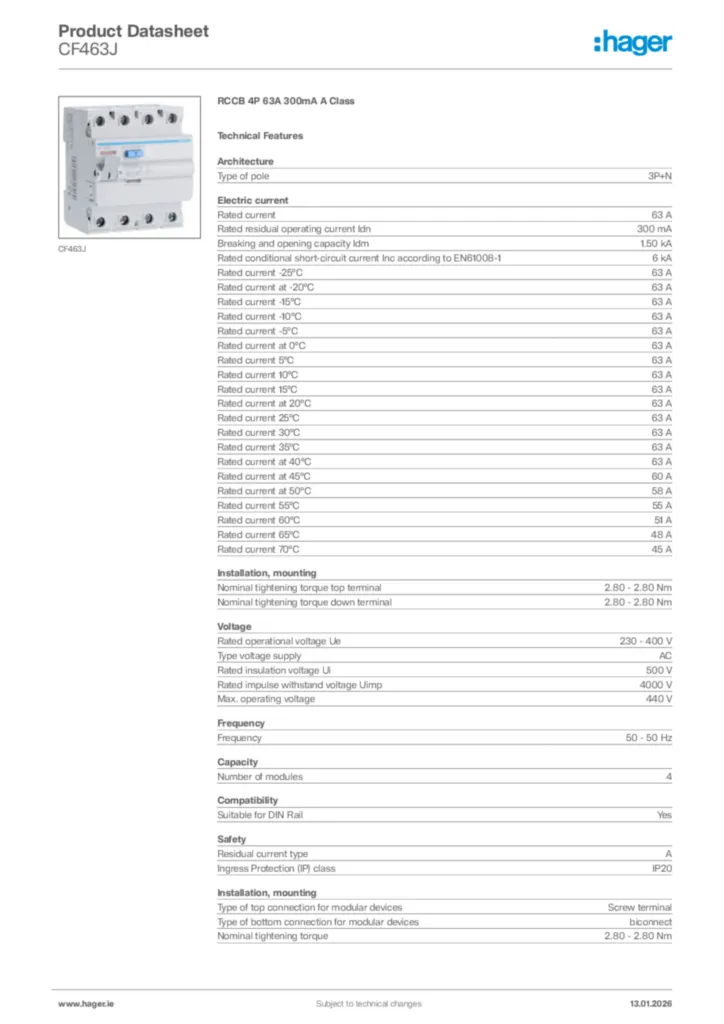

GeneratedProductDatasheet
