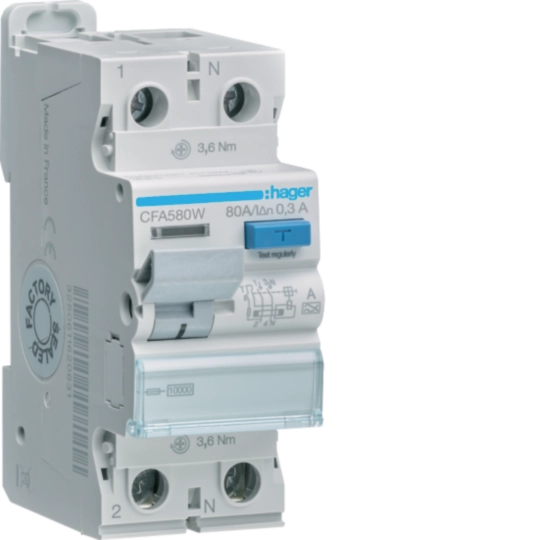

CFA580W

RCCB 1P+N 80A 300mA A

CF425J

RCCB 4P 25A 300mA A Class

Modular devices

RCCB 2P 63A 30mA A Class CDA263U

Name: CDA263U
Brand: Hager
SKU: CDA263U2

EAN

3250611614913

Packaging

1 Piece

Accessories
Technical properties
Environmental value
Documentations
More products

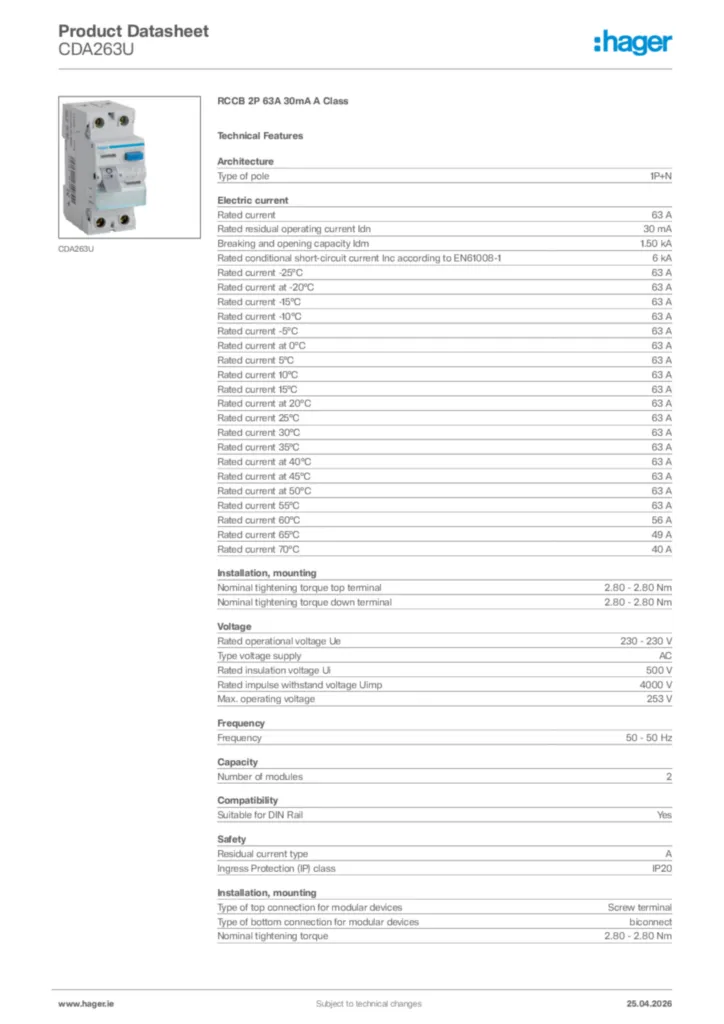

Download the data sheet

Complete your system

Optional accessories

Mechanic accessories for low-voltage components 1 products available

Technical properties

Type of pole

1P+N

Rated current

63 A
Rated residual operating current Idn

30 mA
Breaking and opening capacity Idm

1.50 kA
Rated conditional short-circuit current Inc according to EN61008-1

6 kA
Rated current -25°C

63 A
Rated current at -20°C

63 A
Rated current -15°C

63 A
Rated current -10°C

63 A
Rated current -5°C

63 A
Rated current at 0°C

63 A
Rated current 5°C

63 A
Rated current 10°C

63 A
Rated current 15°C

63 A
Rated current at 20°C

63 A
Rated current 25°C

63 A
Rated current 30°C

63 A
Rated current 35°C

63 A
Rated current at 40°C

63 A
Rated current at 45°C

63 A
Rated current at 50°C

63 A
Rated current 55°C

63 A
Rated current 60°C

56 A
Rated current 65°C

49 A
Rated current 70°C

40 A

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect
Nominal tightening torque

2.80 - 2.80 Nm

Rated operational voltage Ue

230 - 230 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4,000 V
Max. operating voltage

253 V

Frequency

50 - 50 Hz

Number of modules

2

Suitable for DIN Rail

Yes

Residual current type

A
Ingress Protection (IP) class

IP20

Cross-section of input and output with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section flexible conductor

16 mm²
Cross-section rigid conductor

25 mm²

Total power loss under IN

8.10 W

Max. Altitude

2,000 m

Electric endurance in number of cycles

2,000
Number of mechanical operations

4,000

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

35 mm
Depth

70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
