RCBO with dangerous arc detection 1M 20A B curve 6kA Type A 30mA LFL 1m ARL920U

Name: ARL920U
Brand: Hager
SKU: ARL920U

EAN

3250611028086

Packaging

1 Piece

Accessories
Technical properties
Environmental value
Documentations
More products

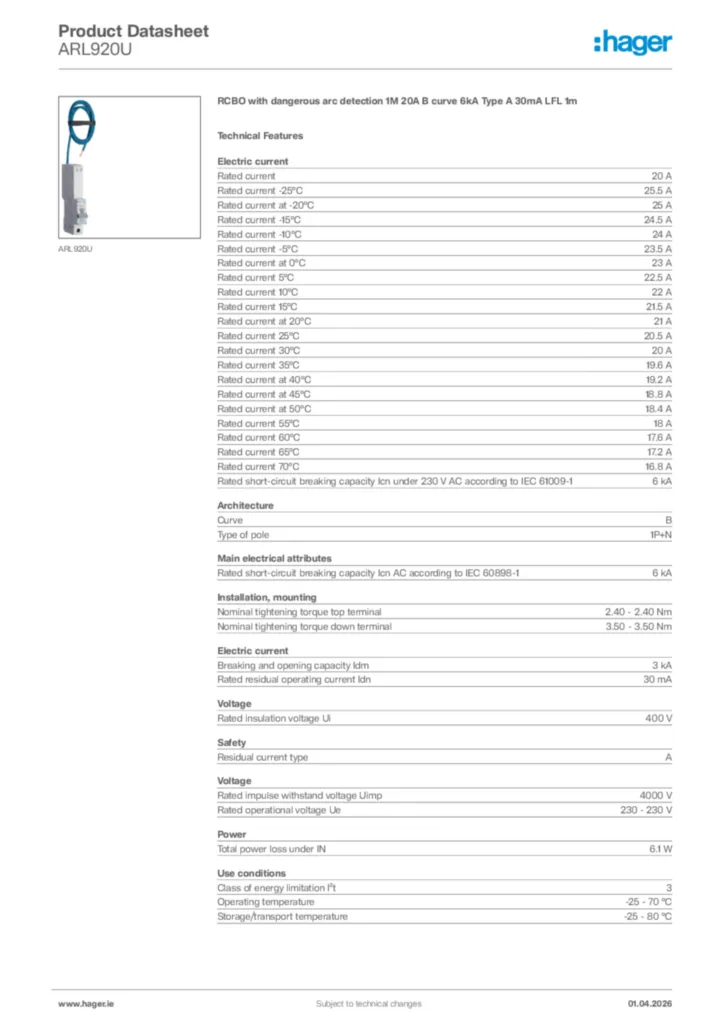

Download the data sheet

Complete your system

Locking interlocking functions 1 products available

Technical properties

Rated current

20 A
Rated current -25°C

25.5 A
Rated current at -20°C

25 A
Rated current -15°C

24.5 A
Rated current -10°C

24 A
Rated current -5°C

23.5 A
Rated current at 0°C

23 A
Rated current 5°C

22.5 A
Rated current 10°C

22 A
Rated current 15°C

21.5 A
Rated current at 20°C

21 A
Rated current 25°C

20.5 A
Rated current 30°C

20 A
Rated current 35°C

19.6 A
Rated current at 40°C

19.2 A
Rated current at 45°C

18.8 A
Rated current at 50°C

18.4 A
Rated current 55°C

18 A
Rated current 60°C

17.6 A
Rated current 65°C

17.2 A
Rated current 70°C

16.8 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 61009-1

6 kA
Breaking and opening capacity Idm

3 kA
Rated residual operating current Idn

30 mA

Curve

B
Type of pole

1P+N

Nominal tightening torque top terminal

2.40 - 2.40 Nm
Nominal tightening torque down terminal

3.50 - 3.50 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Residual current type

A

Rated insulation voltage Ui

400 V
Rated impulse withstand voltage Uimp

4,000 V
Rated operational voltage Ue

230 - 230 V

Total power loss under IN

6.1 W

Class of energy limitation I²t

3
Operating temperature

-25 - 70 °C
Storage/transport temperature

-25 - 80 °C

Number of mechanical operations

8,000
Electric endurance in number of cycles

2,000

Number of modules

1

Height

125 mm
Width

17.50 mm
Depth

70 mm

Frequency

50 - 50 Hz

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
