    RCBO 1P+N 6kA 127V C-16A 30mA A Class QC&QB ADS967D

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    Phase out product: please contact your electrical wholesaler for availability

    Follow-up products :

    ADS917D

    RCBO 1P+N 6kA 127V C-16A 30mA A Class QC&QB

    ADS967D

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    Download the data sheet

    Complete your system

    Optional accessories

    • Modular phase busbar 4 products available
    • Shunt release 1 products available
    • Auxil­i­aries contact block 2 products available

    Complete your system

    • Modular phase busbar
    • Shunt release
    • Auxil­i­aries contact block
    • KDN263B

      Insulated busbar 2P 63A fork 10mm² 57M
      0.00 €  / *
    • KDN451D

      Insulated busbar 3x(P+N) 80A fork 16mm² 12M
      0.00 €  / *
    • KDN280B

      Insulated busbar 2P 80A fork 16mm² 57M
      0.00 €  / *
    • KDN451E

      Insulated busbar 3x(P+N) 80A fork 16mm² 54M
      0.00 €  / *
    • MZ203

      Shunt trip 230-415V AC 110-130V DC
      0.00 €  / *
    • MZ202

      Alarm contact 1C+1O 6A 240V AC
      0.00 €  / *
    • MZ201

      Auxiliary contact 1C+1O 6A 240V AC
      0.00 €  / *

    Technical properties

    Archi­tec­ture
    • Type of pole
      1P+N
    Elec­tric current
    • Rated current
      16 A
    • Rated residual oper­ating current Idn
      30 mA
    • Rated current -25°C
      18.50 A
    • Rated current at -20°C
      18.30 A
    • Rated current -15°C
      18.10 A
    • Rated current -10°C
      17.90 A
    • Rated current -5°C
      17.70 A
    • Rated current at 0°C
      17.40 A
    • Rated current 5°C
      17.20 A
    • Rated current 10°C
      17 A
    • Rated current 15°C
      16.70 A
    • Rated current at 20°C
      16.50 A
    • Rated current 25°C
      16.20 A
    • Rated current 30°C
      16 A
    • Rated current 35°C
      15.80 A
    • Rated current at 40°C
      15.60 A
    • Rated current at 50°C
      15.20 A
    • Rated current 55°C
      15 A
    • Rated current 60°C
      14.80 A
    • Correc­tion factor of rating current for 2 devices placed side by side
      1
    • Correc­tion factor of rating current for 3 devices placed side by side
      0.95
    • Correc­tion factor of rating current for 4 and 5 devices placed side by side
      0.90
    • Correc­tion factor of rating current for 6 devices placed side by side
      0.85
    • Min./max. threshold value of the AC thermal oper­a­tion
      1.13 - 1.45 A
    • Rated short-­cir­cuit breaking capa­city Icn under 230 V AC according to IEC 60898-1
      6 kA
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Main elec­trical attrib­utes
    • Rated short-­cir­cuit breaking capa­city Icn AC according to IEC 60898-1
      6 kA
    Connectivity
    • Type of connec­tion
      quickconnect
    Voltage
    • Rated insu­la­tion voltage Ui
      500 V
    • Rated impulse with­stand voltage Uimp
      4,000 V
    • Max. oper­ating voltage
      127 V
    • Rated oper­a­tional voltage Ue
      127 - 127 V
    • Overvoltage category according to IEC 60947-1
      3
    Power
    • Total power loss under IN
      5.20 W
    Frequency
    • Frequency
      50 - 50 Hz
    Use condi­tions
    • Max. Alti­tude
      2,000 m
    • Class of energy limit­a­tion I²t
      3
    • Oper­ating temper­ature
      -25 - 40 °C
    • Stor­age/trans­port temper­ature
      -25 - 70 °C
    Endur­ance
    • Elec­tric endur­ance in number of cycles
      2,000
    • Number of mech­an­ical oper­a­tions
      2,000
    Connec­tion
    • Cross-sec­tion of input with screws, for flex­ible conductors
      1.5 - 4.0 mm²
    • Cross-sec­tion of input with screws, for massive conductors
      1.5 - 4.0 mm²
    • Cross-sec­tion of output with screws, for flex­ible conductors
      1 - 16 mm²
    • Cross-sec­tion of output with screws, for massive conductors
      1 - 25 mm²
    Install­a­tion, mounting
    • Nominal tight­ening torque
      2.1 - 2.1 Nm
    • Type of top connec­tion for modular devices
      quickconnect
    • Type of bottom connec­tion for modular devices
      bicon­nect, quickbusbar
    Capa­city
    • Number of modules
      2
    Dimen­sions
    • Height
      94 mm
    • Width
      35 mm
    • Depth
      68 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    RCBO 1P+N 6kA B-16A 30mA A
    PDF
    16,18 MB
    Hager REACH declaration ADS967D
    PDF
    RoHS report ADS967D
    PDF

    Downloads

    • Product image

      Image ADS967D | Hager

      Product Image ADS967D

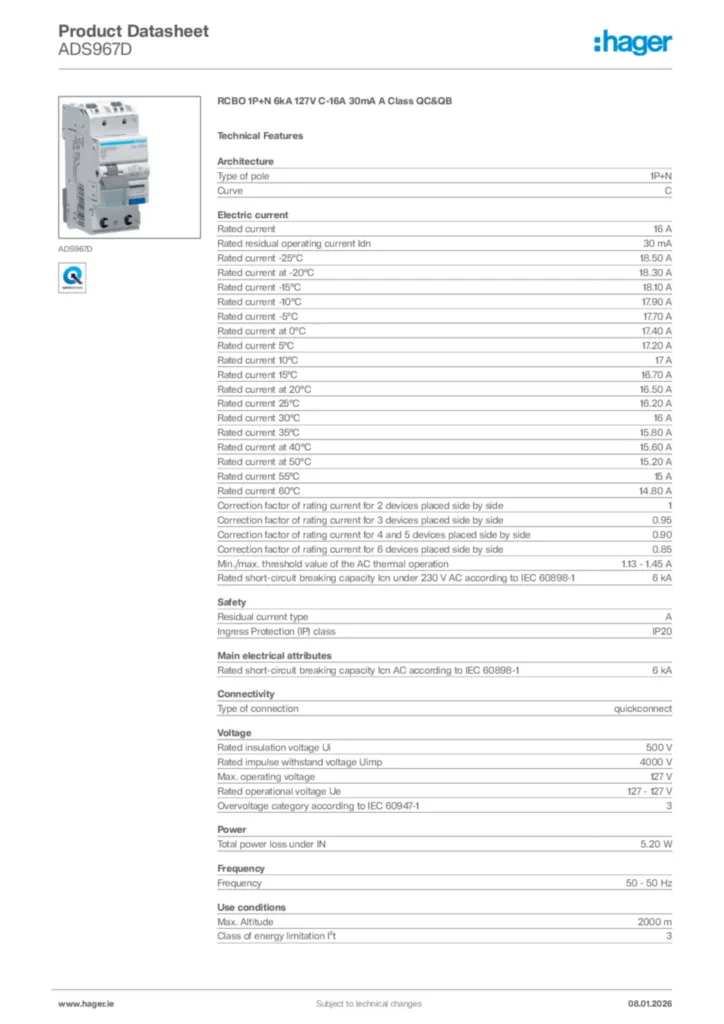

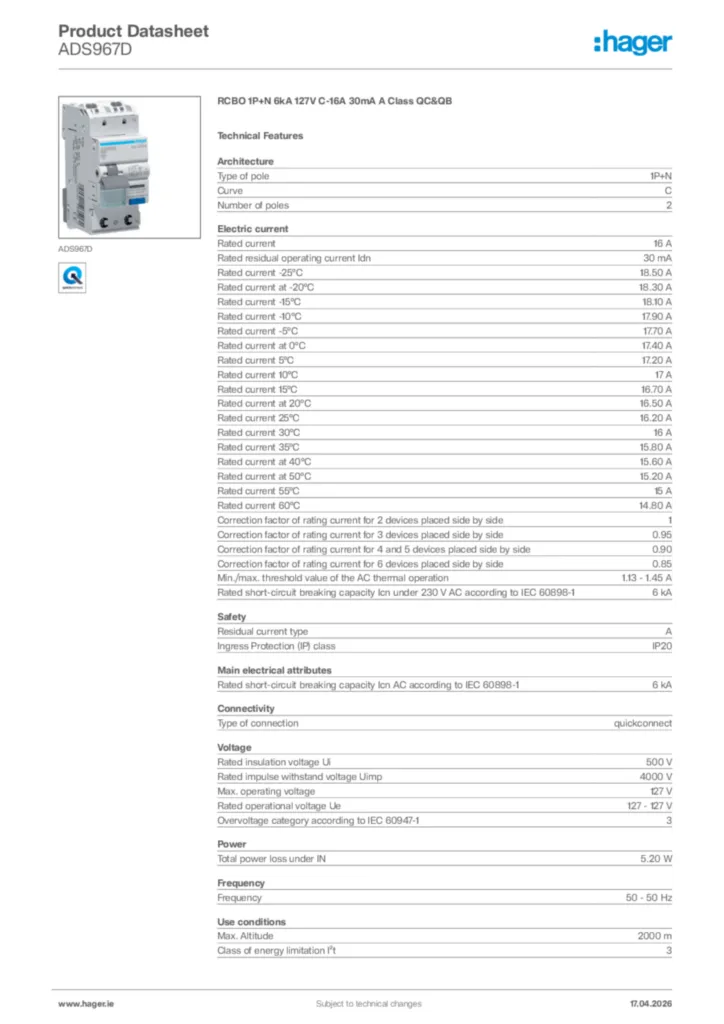

    • Product datasheet
