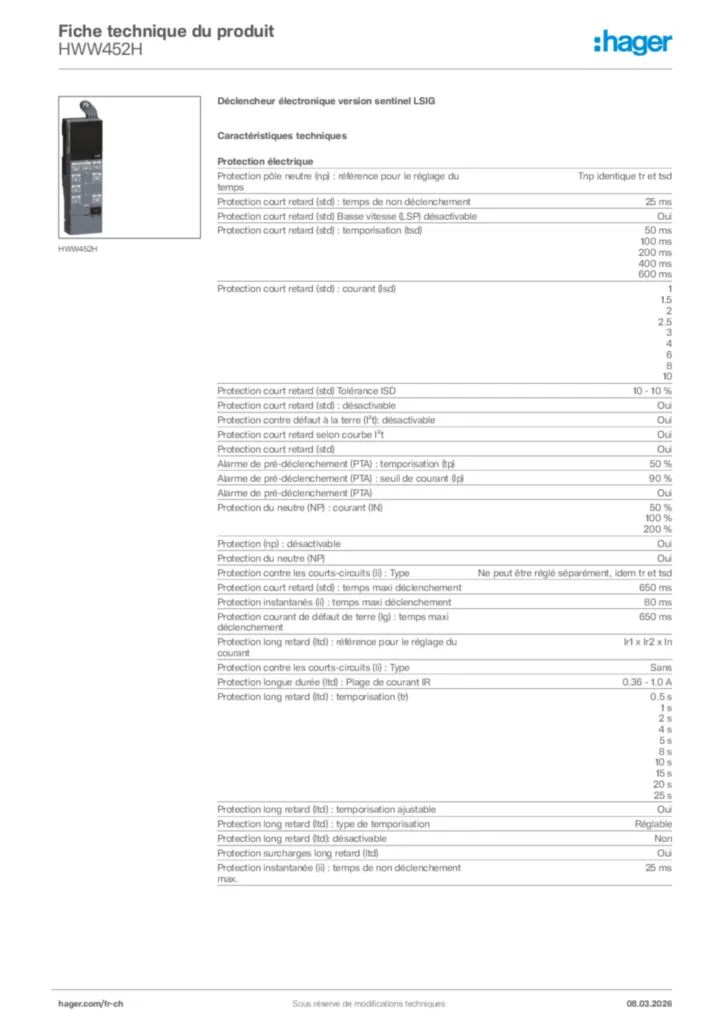

Déclencheur électronique version sentinel LSIG HWW452H
Connectez-vous pour créer une liste de produits
Vous devez être connecté à votre compte myHager pour créer des listes de produits
Complétez votre système
Accessoires optionnels
-
Calibreur 20 produit(s) disponible(s)
Complétez votre système
Caractéristiques techniques
-
Protection pôle neutre (np) : référence pour le réglage du tempsTnp identique tr et tsd
-
Protection court retard (std) : temps de non déclenchement25 ms
-
Protection court retard (std) Basse vitesse (LSP) désactivableOui
-
Protection court retard (std) : temporisation (tsd)50 ms, 100 ms, 200 ms, 400 ms, 600 ms
-
Protection court retard (std) : courant (Isd)1, 1.5, 2, 2.5, 3, 4, 6, 8, 10
-
Protection court retard (std) Tolérance ISD10 - 10 %
-
Protection court retard (std) : désactivableOui
-
Protection contre défaut à la terre (I²t): désactivableOui
-
Protection court retard selon courbe I²tOui
-
Protection court retard (std)Oui
-
Alarme de pré-déclenchement (PTA) : temporisation (tp)50 %
-
Alarme de pré-déclenchement (PTA) : seuil de courant (Ip)90 %
-
Alarme de pré-déclenchement (PTA)Oui
-
Protection du neutre (NP) : courant (IN)50 %, 100 %, 200 %
-
Protection (np) : désactivableOui
-
Protection du neutre (NP)Oui
-
Protection contre les courts-circuits (li) : TypeNe peut être réglé séparément, idem tr et tsd
-
Protection court retard (std) : temps maxi déclenchement650 ms
-
Protection instantanés (ii) : temps maxi déclenchement80 ms
-
Protection courant de défaut de terre (Ig) : temps maxi déclenchement650 ms
-
Protection long retard (ltd) : référence pour le réglage du courantIr1 x Ir2 x In
-
Protection contre les courts-circuits (li) : TypeSans
-
Protection longue durée (ltd) : Plage de courant IR0,36 - 1,0 A
-
Protection long retard (ltd) : temporisation (tr)0.5 s, 1 s, 2 s, 4 s, 5 s, 8 s, 10 s, 15 s, 20 s, 25 s
-
Protection long retard (ltd) : temporisation ajustableOui
-
Protection long retard (ltd) : type de temporisationRéglable
-
Protection long retard (ltd): désactivableNon
-
Protection surcharges long retard (ltd)Oui
-
Protection instantanée (ii) : temps de non déclenchement max.25 ms
-
Protection instantanée (Ii) : sélecteur coefficient de réglage1.5, 2, 3, 4, 6, 8, 10, 12, 15
-
Protection instantanée (Ii) : référence pour le réglage du courantIi… x In
-
Protection instantanée (Ii) : désactivableOui
-
Protection instantanée (Ii)Oui
-
Protection instantanée (Ii) Précision15 - 15 %
-
Protection courant de défaut de terre (Ig) : crans de réglage0.1 %, 0.2 %, 0.3 %, 0.4 %, 0.5 %, 0.6 %, 0.7 %, 0.8 %, 0.9 %, 1 %
-
Protection contre les courts-circuits (li) : TypeRéglable
-
Protection défaut à la terre (GF) : temporisation (tg)50 ms, 100 ms, 200 ms, 400 ms, 800 ms
-
Protection contre défaut à la terre (GF) Basse vitesse (LSP) désactivableOui
-
Protection contre défaut à la terre (GF)Oui
