Insulated busbar 3P 63A fork 10mm² 57M KDN363B
EAN
3250613740962
Packaging
20 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 42 products available
Referenced by
-
MCN325MCB 3P 6kA C-25A 3M
-
NCN301MCB 3P 10kA/15kA C-1A 3M
-
MBN316MCB 3P 6kA B-16A 3M
-
NBN316MCB 3P 10kA/15kA B-16A 3M
-
MCN302MCB 3P 6kA C-2A 3M
-
NBN350MCB 3P 10kA/15kA B-50A 3M
-
MCN316MCB 3P 6kA C-16A 3M
-
MBN320MCB 3P 6kA B-20A 3M
-
MCN320MCB 3P 6kA C-20A 3M
-
MBN325MCB 3P 6kA B-25A 3M
-
MCN304MCB 3P 6kA C-4A 3M
-
MBN332MCB 3P 6kA B-32A 3M
-
MCN332MCB 3P 6kA C-32A 3M
-
MBN340MCB 3P 6kA B-40A 3M
-
MCN340MCB 3P 6kA C-40A 3M
-
MCN310MCB 3P 6kA C-10A 3M
-
MCN301MCB 3P 6kA C-1A 3M
-
MCN363MCB 3P 6kA C-63A 3M
-
MBN363MCB 3P 6kA B-63A 3M
-
MCN350MCB 3P 6kA C-50A 3M
Technical properties
Electric current
-
Rated current63 A
Architecture
-
Number of poles3
Dimensions
-
Length1,000 mm
Voltage
-
Rated impulse withstand voltage Uimp4,500 V
-
Rated operational voltage Ue230 - 400 V
Connection
-
Cross-section rigid conductor10 mm²
-
Connector/plug typePhase busbar with fork
Capacity
-
Number of modules57
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

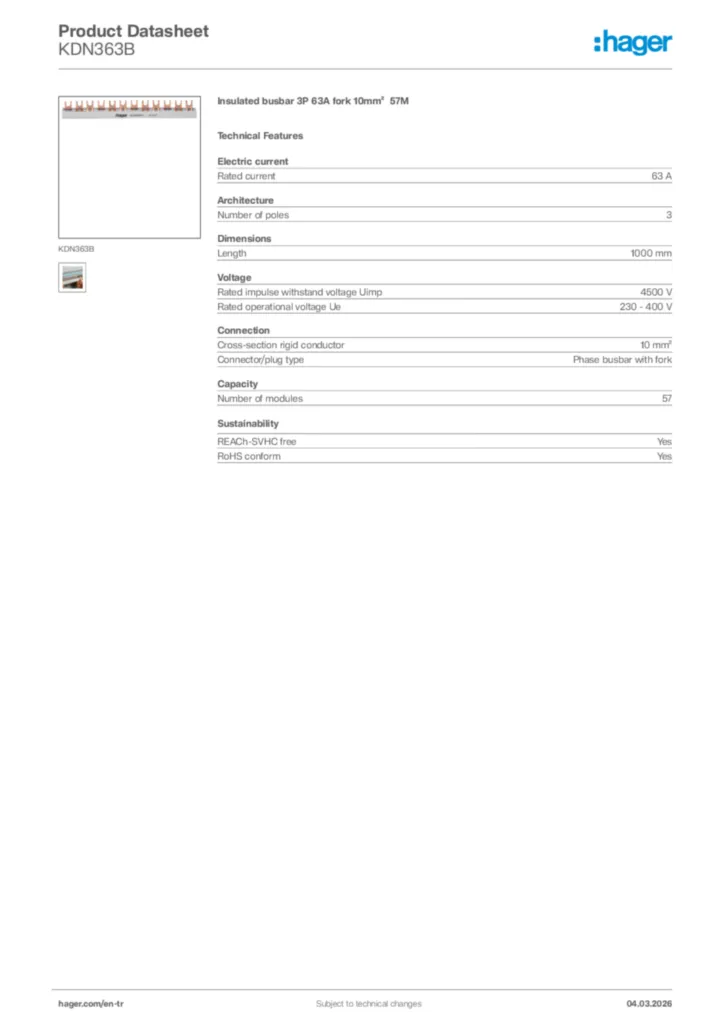

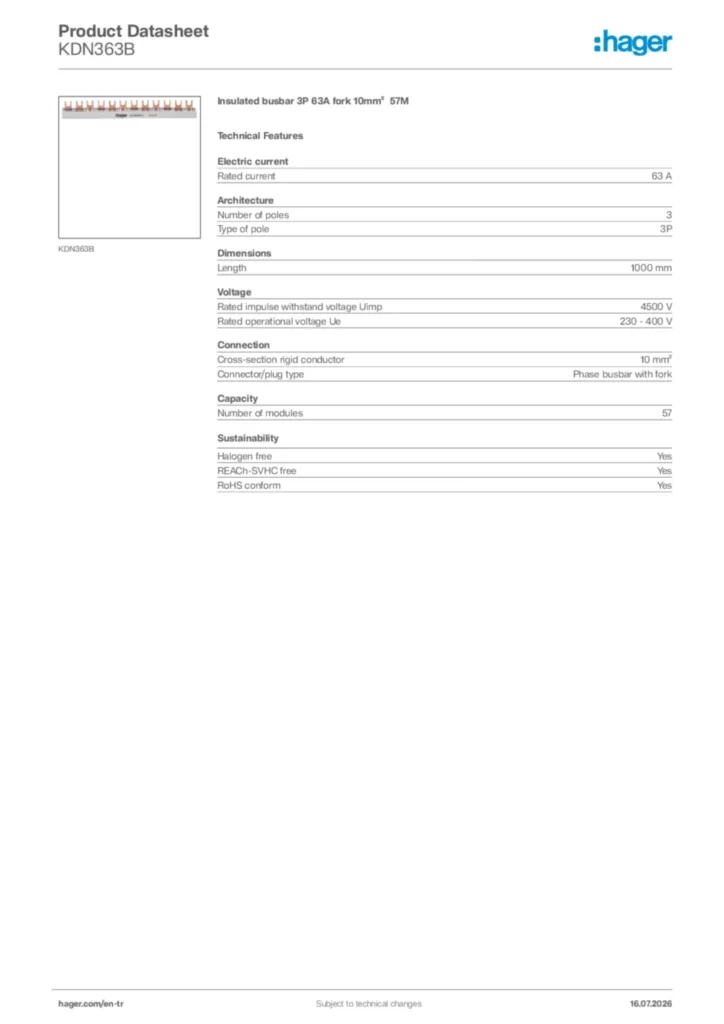

Product datasheet
Hager Product data sheet KDN363B
Insulated busbar 3P 63A fork 10mm² 57M
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2022-09-20
PDF342,73 kB
