Moulded Case Circuit Breaker h1600 3P 50kA 1600A LSI HNF990H

EAN
3250613349905
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Moulded Case Circuit Breaker h1600 3P 50kA 1600A LSI

HNF990H

  • Accessories
  • Technical properties
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • Motor oper­ator 1 products available

Complete your system

  • Motor oper­ator
  • HXF042H

    Motor operator H1250-H1600 200-230VAC
    0.00 €  / *

Technical properties

Elec­tric current
  • Rated current
    1,600 A
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 230 V AC IEC 60947-2
    100 kA
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
    100 kA
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
    50 kA
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 415 V AC IEC 60947-2
    50 kA
  • Breaking capa­city on 1-pole for AC 230 V IEC 60947-2
    60 kA
  • Breaking capa­city on 1-pole for AC 400 V IEC 60947-2
    9 kA
Archi­tec­ture
  • Number of poles
    3
  • Control/­op­er­a­tion element
    Toggle
  • Device construc­tion type
    Fixed built-in
Capa­city
  • Number of modules
    12
Trip­ping
  • Response time when opening
    10 ms
Settings
  • Magnetic protec­tion knob setting xIN
    2.5, 5, 10
  • Range of magnetic adjust­ment
    8960 A, 11200 A, 14000 A, 17920 A, 19200 A, 19200 A, 19200 A
  • Thermal protec­tion knob setting xIN
    0.4, 0.5, 0.63, 0.8, 0.9, 0.95, 1
  • Adjust­ment range short-term delayed short-­cir­cuit release
    0 - 0 A
Frequency
  • Frequency
    50 - 60 Hz
Install­a­tion, mounting
  • Nominal tight­ening torque
    65 - 65 Nm
  • Mount­ing-/­Con­nec­tion Posi­tion
    Front
Voltage
  • Rated impulse with­stand voltage Uimp
    8,000 V
  • Rated insu­la­tion voltage Ui
    800 V
  • Rated oper­a­tional voltage Ue
    220 - 690 V
Func­tions
  • Trip unit
    LSI
Main elec­trical attrib­utes
  • Magnetic protec­tion trip time
    100 - 200 ms
Power
  • Total power loss under IN
    168.90 W
  • Power loss per pole at In
    56.30 W
Endur­ance
  • Elec­tric endur­ance in number of cycles
    1,000
  • Number of mech­an­ical oper­a­tions
    4,000
Equip­ment
  • Number of auxil­iary contacts as change-over contact
    0
  • Number of auxil­iary contacts as normally closed contact
    0
  • Number of auxil­iary contacts as normally open contact
    0
Safety
  • Ingress Protec­tion (IP) class
    IP4X
Use condi­tions
  • Oper­ating temper­ature
    -25 - 70 °C
Connec­tion
  • Cross-sec­tion flex­ible conductor
    3x 240 mm²
  • Cross-sec­tion rigid conductor
    3x 240 mm²
  • Connect­or/plug type
    Terminal
Controls and indic­ators
  • Motor drive integ­rated
    No
Compat­ib­ility
  • Suit­able for DIN Rail
    No
Power supply
  • Posi­tion power supply
    Bidirec­tional

Downloads

  • Image HNF990H | Hager

    Product Image HNF990H

  • Product datasheet

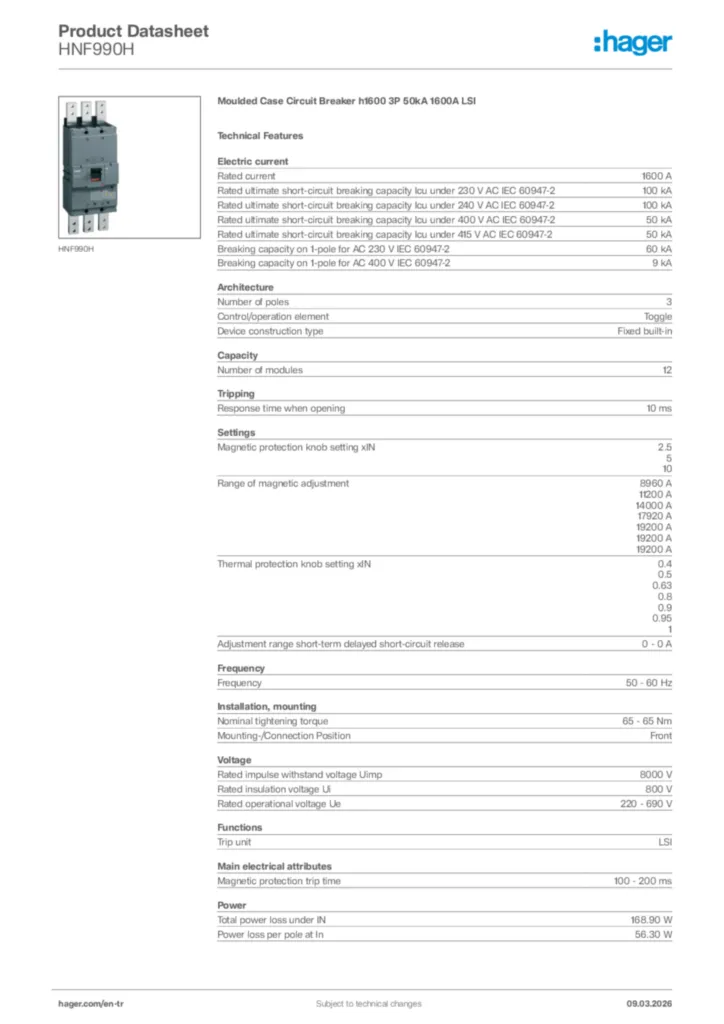

    Image Hager Product data sheet HNF990H | Hager

    Hager Product data sheet HNF990H

    Moulded Case Circuit Breaker h1600 3P 50kA 1600A LSI

    PDF

  • Installation manual

    Image Installation manual International 2021-06-07 | Hager

    Installation manual International 2021-06-07

    PDF
    3,62 MB

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-06-23

    PDF
    287,24 kB
More documentation

Discover more of this product range

    5
  • 1
