Push-button 1gang, + RGB LED, internal temp. sensor, KNX - R.1/R.3, p.white gl. 80161869
EAN
3250617153539
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
Compatible products
-
Referenced by 143 products available
Referenced by
-
10142114Frame 4gang, R.1, stainless steel/p. white
-
10112216Frame 1gang, R.3, glass black
-
10142209Frame 4gang, R.3, glass p. white
-
10132209Frame 3gang, R.3, glass p. white
-
10122209Frame 2gang, R.3, glass p. white
-
10112209Frame 1gang, R.3, glass p. white
-
10142245Frame 4gang, R.3, black glossy
-
10132245Frame 3gang, R.3, black glossy
-
10122245Frame 2gang, R.3, black glossy
-
10112245Frame 1gang, R.3, black glossy
-
10142289Frame 4gang, R.3, p. white glossy
-
10132289Frame 3gang, R.3, p. white glossy
-
10122289Frame 2gang, R.3, p. white glossy
-
10112289Frame 1gang, R.3, p. white glossy
-
10142104Frame 4gang, R.1, stainless steel/black
-
10132104Frame 3gang, R.1, stainless steel/black
-
10122104Frame 2gang, R.1, stainless steel/black
-
10112104Frame 1gang, R.1, stainless steel/black
-
10112174Frame 1gang, R.1, al./p. white
-
10132116Frame 3gang, R.1, glass black
Technical properties
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Electric current
-
Bus current consumption data transfer20 mA
Functions
-
With room temperature controllerNo
Dimensions
-
Depth17 mm
Equipment
-
Number of actuation points2
Controls and indicators
-
With LED indicationYes
Materials
-
ColourPolar white
-
RAL code9010
-
MaterialThermoplastic
-
Surface finishGlossy
Accessories
-
Has labelling fieldNo
Screen
-
With displayNo
Texts
-
FunctionFunction for manual interruption of automatic functions already triggered
-
ProtectionWith dismantling protection
-
TemperatureIntegrated temperature sensor with output of the measured values via object
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

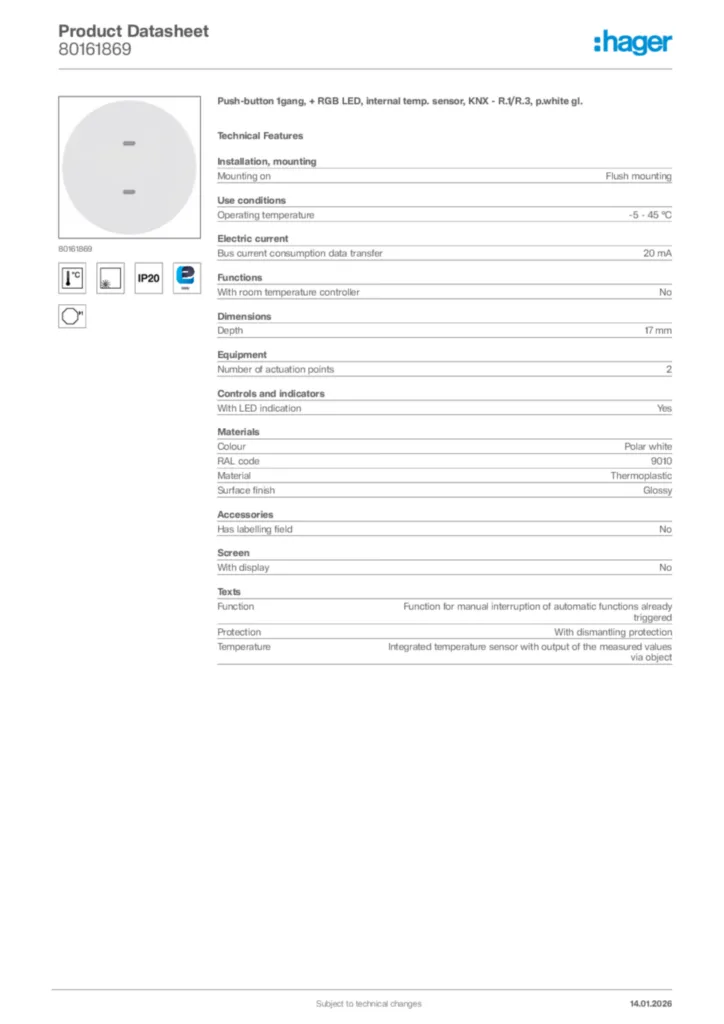

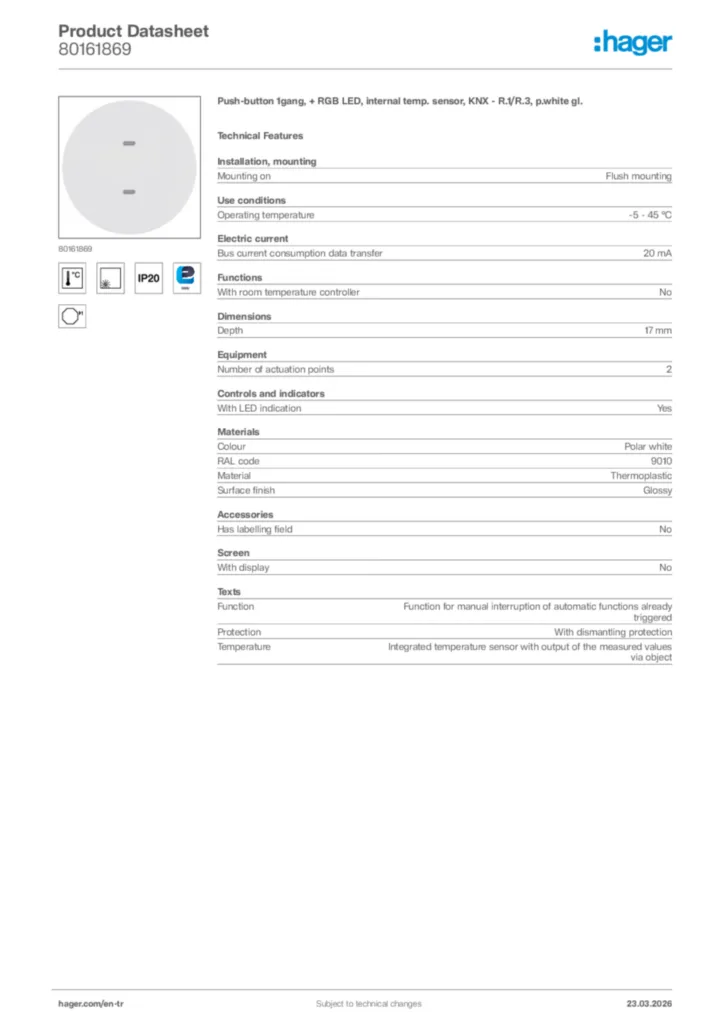

Hager Product data sheet 80161869
Push-button 1gang, + RGB LED, internal temp. sensor, KNX - R.1/R.3, p.white gl.
PDF -
Installation manual
Installation manual en-GB, tr-TR 2021-11-26
PDF1,08 MB -
KNX product database
ETS4-ETS5 - KNX Database for KNX Push Button xgang
KNX product database International 2020-01-01
KNXPROD1,08 MB -
Application Guide
Application description EASY for 8014X3XX, 8016X7XX, 8016X8XX - KNX Push button xgang (EN, 2022-01), easy link
Application Guide en-GB 2022-01-17
PDF3,00 MB
Application description EASY for 8014X3XX, 8016X7XX, 8016X8XX - KNX Push button xgang (EN, 2022-01), easy link
Application Guide en-GB 2022-01-17
PDF3,00 MB
Application description ETS for 8014X3XX-8016X7XX-8016X8XX - KNX Push Button (EN, 2021-10)
Application Guide en-GB 2021-10-12
PDF3,20 MB
Application description ETS for 8014X3XX-8016X7XX-8016X8XX - KNX Push Button (TR, 2021-08)
Application Guide tr-TR 2021-11-29
PDF3,31 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF307,84 kB
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF283,25 kB
