S.1/B.3/B.7 Push Button 2-gang, with Thermostat/Label, White/Polar White 75662780
EAN
4011334283430
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
75040001
Bus coupling unit flush-mtd, KNX
Compatible products
-
Referenced by 14 products available
Referenced by
-
10238919Frame 3gang hor., lab. field, S.1, p. white glossy
-
10228919Frame 2gang hor., lab. field, S.1, p. white glossy
-
10138919Frame 3gang vert., lab. field, S.1, p. white glossy
-
10128919Frame 2gang vert., lab. field, S.1, p. white glossy
-
10149909Frame 4gang, S.1, p. white, matt, plastic
-
10148989Frame 4gang, S.1, p. white glossy
-
10148982Frame 4gang, S.1, white glossy
-
10129909Frame 2gang, S.1, p. white, matt, plastic
-
10128989Frame 2gang, S.1, p. white glossy
-
10128982Frame 2gang, S.1, white glossy
-
10159909Frame 5gang, S.1, p. white, matt, plastic
-
10158989Frame 5gang, S.1, p. white glossy
-
10158982Frame 5gang, S.1, white glossy
-
10139909Frame 3gang, S.1, p. white, matt, plastic
Technical properties
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Functions
-
With room temperature controllerYes
Dimensions
-
Height55.30 mm
-
Width55.80 mm
-
Depth13.85 mm
Equipment
-
Number of actuation points6
Controls and indicators
-
With LED indicationYes
Materials
-
ColourWhite
-
RAL code1013
-
MaterialThermoplastic
-
Surface finishGlossy
Accessories
-
Has labelling fieldYes
Screen
-
With displayYes
Texts
-
FunctionFor switch, push-button, dimmer, blind and thermostat functions, With valve protection function
-
Operating modeController operating modes: comfort, standby, night and frost/heat protection mode
-
ProtectionWith dismantling protection
-
TemperatureTemperature measurement via internal and/or external sensor with mean value formation
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

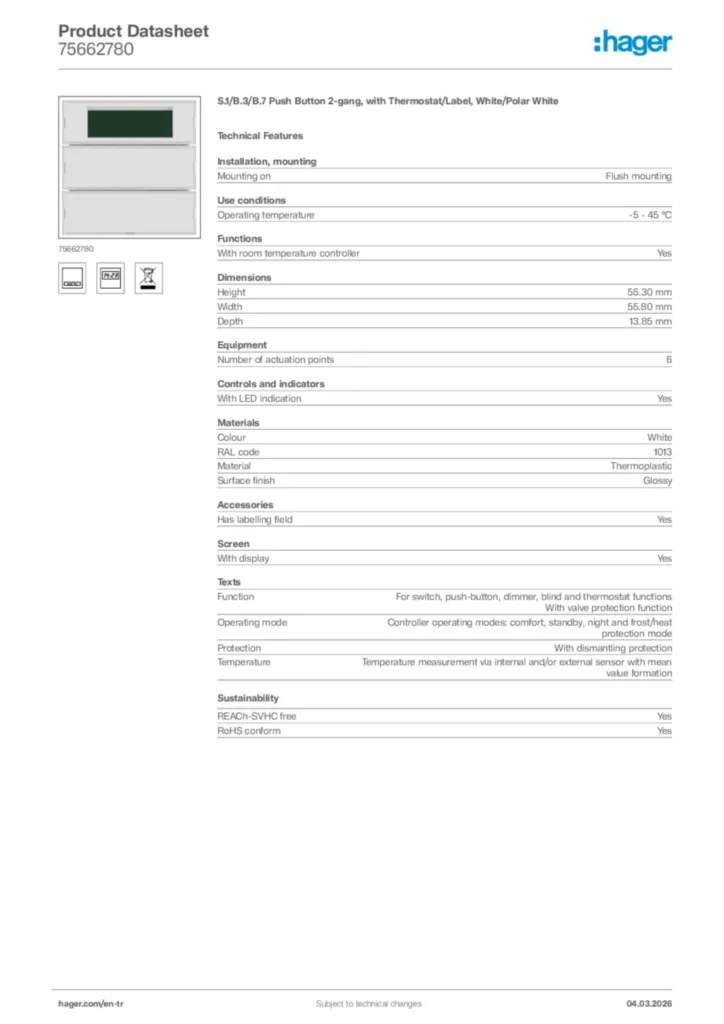

Product datasheet
Hager Product data sheet 75662780
S.1/B.3/B.7 Push Button 2-gang, with Thermostat/Label, White/Polar White
PDF -
Installation manual
Manual for 756627xx-756637xx-756657xx - Push-button 2gang with thermostat (EN, 2021-12)
Installation manual en-GB 2022-09-12
PDF1,35 MB -
Tool
Label templates (DesignPro 2000) for S.x/B.x touch sensors - 7516xx-7566xx, as from: 2013-01
Tool de-DE 2023-10-30
ZIP68,54 kB -
KNX product database
KNX plugin for 7566xx - Push-button with thermostat (V104)
KNX product database International 2023-08-25
EXE7,93 MB -
Application Guide
Application description ETS for 756627xx-756637xx-756657xx - Push-button with thermostat (EN, 2006-07)
Application Guide en-GB, pl-PL 2020-01-01
PDF2,04 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-03-05
PDF261,26 kB
Declaration of Conformity
Declaration of conformity International 2021-03-05
PDF262,21 kB
