Push-button 2gang with room thermostat, display, K.5, stainless steel 75662773
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
75040001
Bus coupling unit flush-mtd, KNX
Compatible products
-
Referenced by 18 products available
Referenced by
-
13437003Frame 4gang vert., K.5, al., al. anodised
-
13537004Frame 5gang vert., K.5, stainless steel, metal matt finish
-
13437004Frame 4gang vert., K.5, stainless steel, metal matt finish
-
13337004Frame 3gang vert., K.5, stainless steel, metal matt finish
-
13937004Frame 5gang hor., K.5, stainless steel, metal matt finish
-
13837004Frame 4gang hor., K.5, stainless steel, metal matt finish
-
13737004Frame 3gang hor., K.5, stainless steel, metal matt finish
-
13637004Frame 2gang hor., K.5, stainless steel, metal matt finish
-
13537003Frame 5gang vert., K.5, al., al. anodised
-
13137003Frame 1gang, K.5, al., al. anodised
-
13337003Frame 3gang vert., K.5, al., al. anodised
-
13937003Frame 5gang hor., K.5, al., al. anodised
-
13837003Frame 4gang hor., K.5, al., al. anodised
-
13737003Frame 3gang hor., K.5, al., al. anodised
-
13637003Frame 2gang hor., K.5, al., al. anodised
-
13237004Frame 2gang vert., K.5, stainless steel, metal matt finish
-
13237003Frame 2gang vert., K.5, al., al. anodised
-
13137004Frame 1gang, K.5, stainless steel, metal matt finish
Technical properties
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Functions
-
With room temperature controllerYes
Dimensions
-
Height55.10 mm
-
Width70.90 mm
-
Depth14.35 mm
Equipment
-
Number of actuation points6
Controls and indicators
-
With LED indicationYes
Materials
-
ColourStainless steel
-
RAL code9022
-
MaterialStainless steel, Thermoplastic
-
Surface finishMatt
Accessories
-
Has labelling fieldYes
Screen
-
With displayYes
Texts
-
FunctionFor switch, push-button, dimmer, blind and thermostat functions
-
Operating modeController operating modes: comfort, standby, night and frost/heat protection mode
-
ProtectionWith dismantling protection
-
TemperatureTemperature measurement via internal and/or external sensor with mean value formation
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

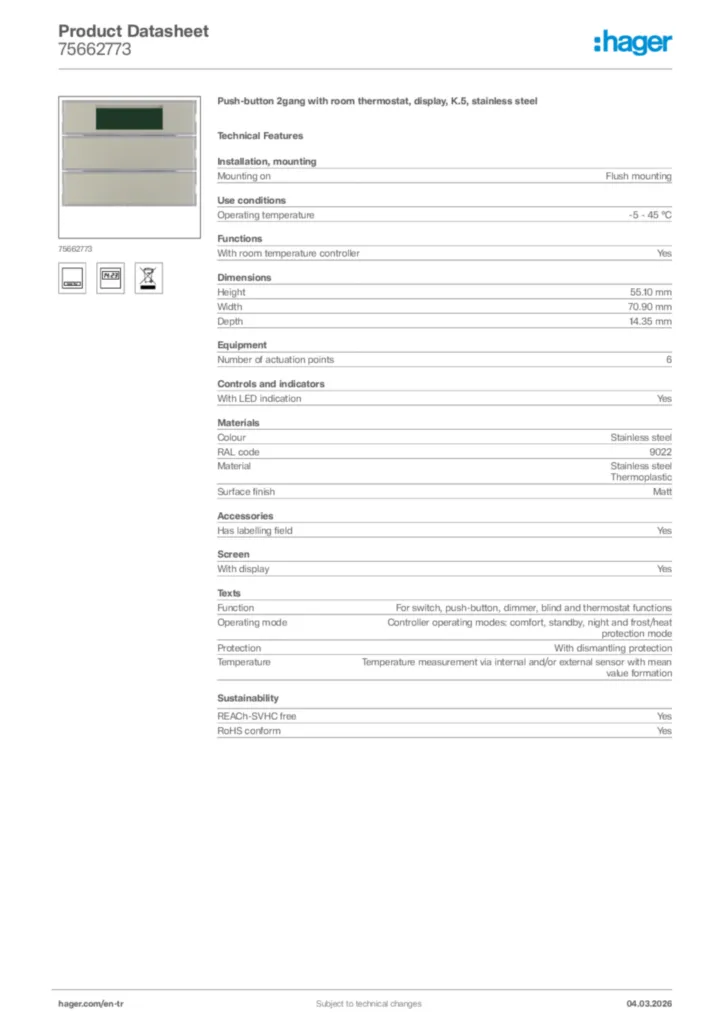

Product datasheet
Hager Product data sheet 75662773
Push-button 2gang with room thermostat, display, K.5, stainless steel
PDF -
Installation manual
Manual for 756627xx-756637xx-756657xx - Push-button 2gang with thermostat (EN, 2021-12)
Installation manual en-GB 2022-09-12
PDF1,35 MB -
Tool
Label templates (DesignPro 2000) for Kx touch sensors - 7516xx-7566xx, as from: 2013-01
Tool de-DE 2023-10-30
ZIP68,63 kB -
KNX product database
KNX plugin for 7566xx - Push-button with thermostat (V104)
KNX product database International 2023-08-25
EXE7,93 MB -
Application Guide
Application description ETS for 756627xx-756637xx-756657xx - Push-button with thermostat (EN, 2006-07)
Application Guide en-GB, pl-PL 2020-01-01
PDF2,04 MB
Application description ETS for 7566272xx-7566372xx-7566572xx - Push-button with thermostat (EN, 2009-03)
Application Guide en-GB, pl-PL 2020-01-01
PDF1,88 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-03-05
PDF261,26 kB
Declaration of Conformity
Declaration of conformity International 2021-03-05
PDF262,21 kB
