  • 75642039
  • Building manage­ment system KNX

Glass sensor, 2-gang, with thermosta Be 75642039

EAN
4011334317876
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Glass sensor, 2-gang, with thermosta Be

75642039

  • Accessories
  • Technical properties
  • Documentations
  • More products
Download the data sheet

Complete your system

Must-have accessories

Previous
Previous
TGA200
TGA200
Power supply 24 V DC 1A

Optional accessories

  • Accessor­ies/s­pare parts for room ther­mo­stat/c­lock ther­mo­stat 1 products available

Complete your system

  • Accessor­ies/s­pare parts for room ther­mo­stat/c­lock ther­mo­stat
  • 161

    Temp. sensor (33 kΩ), HVAC control
    0.00 €  / *

Technical properties

Install­a­tion, mounting
  • Mounting on
    Flush mounting
Use condi­tions
  • Oper­ating temper­ature
    -5 - 45 °C
Func­tions
  • With room temper­ature controller
    Yes
Power
  • Current consump­tion
    23 mA
Dimen­sions
  • Built-in depth flush-­mounted boxes
    27 mm
  • Height
    160 mm
  • Width
    86 mm
  • Depth
    5.70 mm
Equip­ment
  • Number of actu­ation points
    4
Controls and indic­ators
  • With LED indic­a­tion
    Yes
Mater­ials
  • Colour
    Polar white
  • RAL code
    9010
  • Material
    Glass
  • Surface finish
    Glossy
Accessories
  • Has labelling field
    No
Screen
  • With display
    Yes
Texts
  • Func­tion
    For switch, push-but­ton, dimmer, blind and ther­mo­stat func­tions, With valve protec­tion func­tion
  • Install­a­tion mode
    For vertical mounting
  • Oper­ating mode
    Controller oper­ating modes: comfort, standby, night and frost/heat protec­tion mode
  • Temper­ature
    Addi­tional connec­tion for external temper­ature sensor, Temper­ature meas­ure­ment via internal Temper­ature sensor or external commu­nic­a­tion object
  • Voltage
    Oper­a­tion with non-choked output of KNX voltage supply possible (pay atten­tion to current consump­tion), Separate auxil­iary power supply needed

Downloads

  • Image 75642039 | Hager

    Product Image 75642039

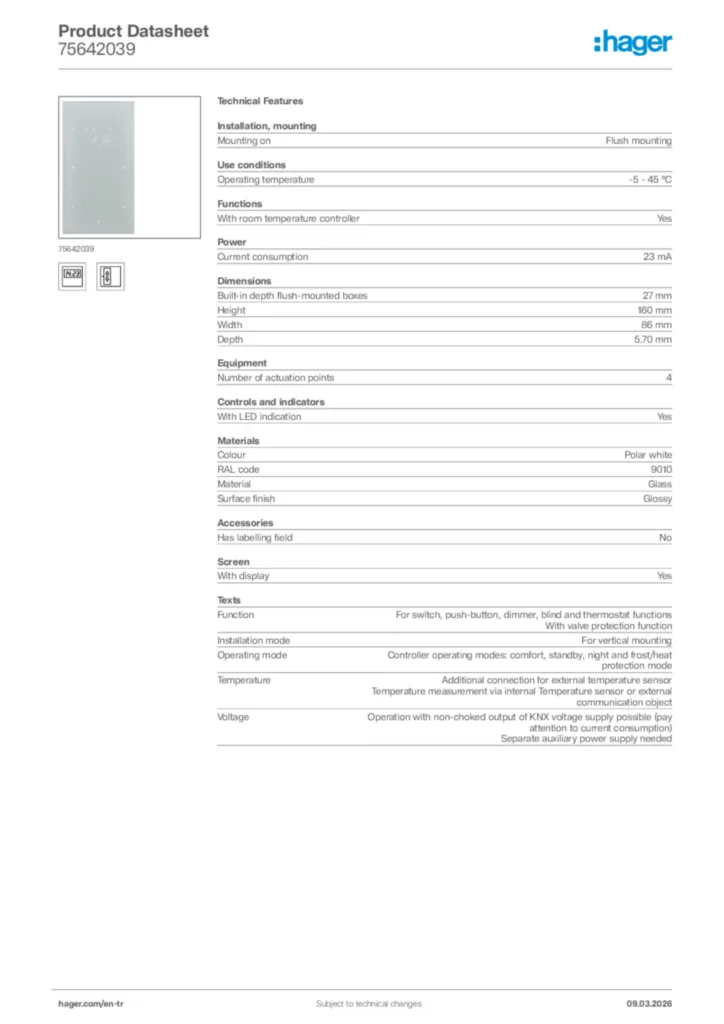

  • Product datasheet

    Image Hager Product data sheet 75642039 | Hager

    Hager Product data sheet 75642039

    Product data sheet en-GB 2025-11-08

    PDF

  • Installation manual

    Image Manual for 75642xx-75643xx - Touch-/glass sensor 2gang, 3gang with room thermostat (EN, 2013-09) | Hager

    Manual for 75642xx-75643xx - Touch-/glass sensor 2gang, 3gang with room thermostat (EN, 2013-09)

    Installation manual en-GB, pl-PL 2020-01-01

    PDF
    522,16 kB

  • KNX product database

    Image KNX Database (from ETS3) for 756420xx-756430xx - Glass sensor/Touch sensor with thermostat (2012-12) | Hager

    KNX Database (from ETS3) for 756420xx-756430xx - Glass sensor/Touch sensor with thermostat (2012-12)

    KNX product database International 2023-08-25

    VD4
    7,41 MB
    Image KNX Database (from ETS3) for 756420xx-756430xx - Glass sensor/Touch sensor with thermostat (2012-12) | Hager

    KNX Database (from ETS3) for 756420xx-756430xx - Glass sensor/Touch sensor with thermostat (2012-12)

    KNX product database International 2023-08-25

    VD4
    7,57 MB
    Image KNX Database (from ETS3) for 756420xx-756430xx - Glass sensor/Touch sensor with thermostat (2014-01) | Hager

    KNX Database (from ETS3) for 756420xx-756430xx - Glass sensor/Touch sensor with thermostat (2014-01)

    KNX product database International 2023-08-25

    VD4
    6,34 MB
    Image KNX Database (from ETS3) for 756420xx-756430xx - Glass sensor/Touch sensor with thermostat (2014-01) | Hager

    KNX Database (from ETS3) for 756420xx-756430xx - Glass sensor/Touch sensor with thermostat (2014-01)

    KNX product database International 2023-08-25

    VD4
    6,16 MB

  • Application Guide

    Image Application description ETS for 75642xxx-75643xxx - Glass sensor/Touch sensor with thermostat (EN, 2014-01) | Hager

    Application description ETS for 75642xxx-75643xxx - Glass sensor/Touch sensor with thermostat (EN, 2014-01)

    Application Guide en-GB, pl-PL 2020-01-01

    PDF
    5,19 MB
    Image Application description ETS for 756420xx-756430xx - Glass sensor/Touch sensor with thermostat (EN, 2009-01) | Hager

    Application description ETS for 756420xx-756430xx - Glass sensor/Touch sensor with thermostat (EN, 2009-01)

    Application Guide en-GB, pl-PL 2020-01-01

    PDF
    1,64 MB
