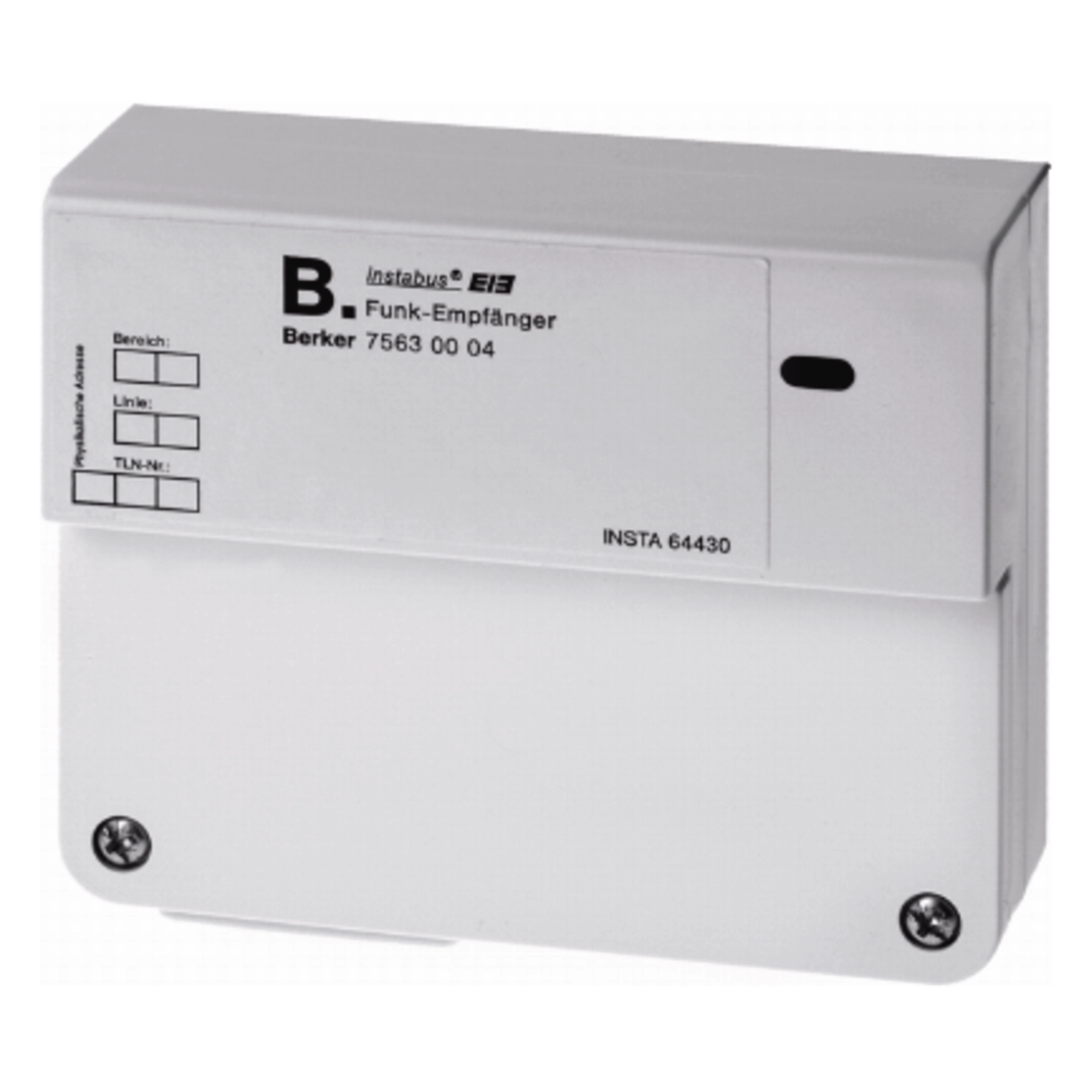

Radio receiver surface-mounted instabus 75630004
EAN
4011334217596
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories

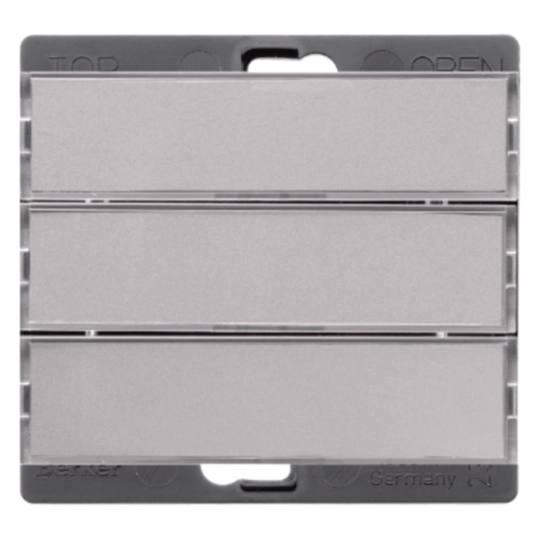

27237004
Compatible products
-
Referenced by 1 products available
Technical properties
Equipment
-
Web serverNo
Voltage
-
Operating voltage29 - 29 V
-
Operating voltage over bus21 - 32 V
Connectivity
-
Type of interface bus system/media gatewayMedia coupler
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-5 - 45 °C
Controls and indicators
-
With LED indicationYes
Dimensions
-
Width110 mm
-
Depth38 mm
Texts
-
FunctionFor switch, push-button, dimmer and shutter functions
-
Type of connectionWith screw terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

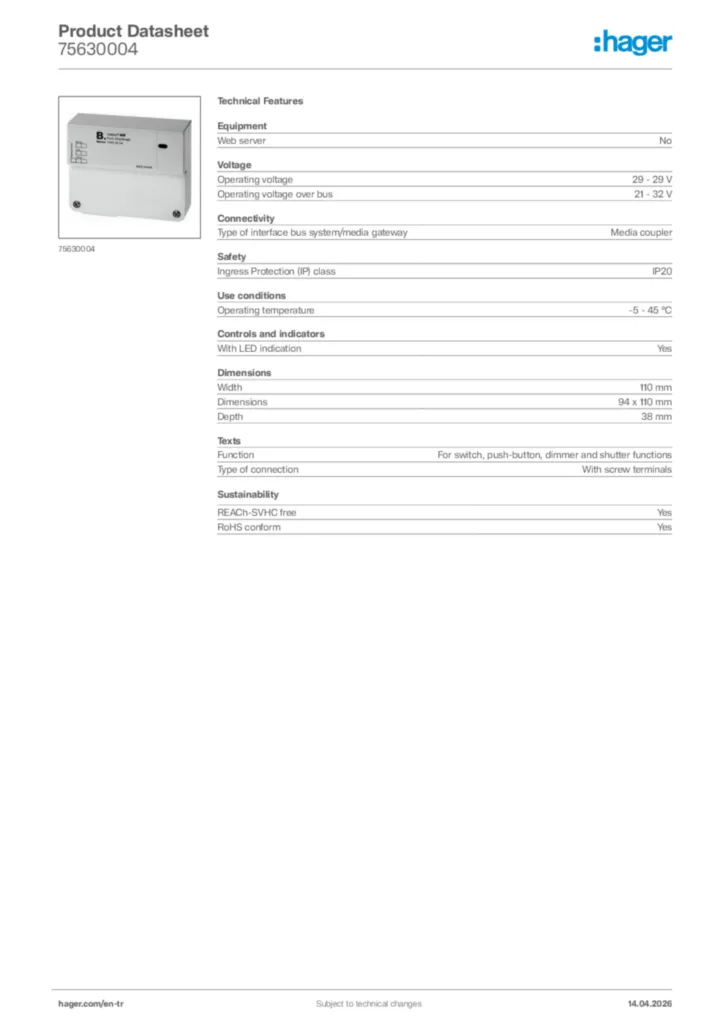

Product datasheet
Hager Product data sheet 75630004
Product data sheet en-GB 2025-11-03
PDF -
Installation manual
Manual for 75630004 - Radio receiver surface-mounted (EN, 2013-06)
Installation manual en-GB 2020-01-01
PDF1005,75 kB -
Tool
Software for 75630004 - Radio receiver surface-mounted (DE, 2008-06)
Tool de-DE 2023-10-30
EXE304,58 kB -
KNX product database
KNX Database (from ETS2) for 75630004 - Radio receiver surface-mounted (2005-11)
KNX product database International 2023-08-25
VD1162,18 kB
KNX Database (from ETS2) for 75630004 - Radio receiver surface-mounted (2005-11)
KNX product database International 2023-08-25
VD1130,11 kB -
Application Guide
Application description ETS for 75630004 - Radio receiver surface-mounted (EN, 2001-07)
Application Guide en-GB 2020-01-01
PDF214,09 kB
