    • Home
    • Catalog
    • Building manage­ment system KNX
    • Sensors
    • Push button sensors B.IQ
    • 75163594
    EAN
    4011334257561
    Packaging
    1 Piece
    • Push button sensors B.IQ

    B.IQ push-button 3gang comf, KNX - B.IQ, al., al. anodised 75163594

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    B.IQ push-button 3gang comf, KNX - B.IQ, al., al. anodised

    75163594

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Must-have accessories

    Previous
    Previous
    75040001
    75040001
    Bus coupling unit flush-mtd, KNX
    Add to a list
    Add to a list

    Technical properties

    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 45 °C
    Func­tions
    • With room temper­ature controller
      No
    Dimen­sions
    • Height
      88.50 mm
    • Width
      88.50 mm
    • Depth
      16.65 mm
    Equip­ment
    • Number of actu­ation points
      6
    Controls and indic­ators
    • With LED indic­a­tion
      Yes
    Mater­ials
    • Colour
      Aluminium
    • RAL code
      9006
    • Material
      Aluminium
    • Surface finish
      Matt
    Accessories
    • Has labelling field
      No
    Screen
    • With display
      No
    Texts
    • Func­tion
      For switch, push-but­ton, dimmer and shutter func­tions
    • Protec­tion
      With dismant­ling protec­tion

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    REACh-SVHC free Yes

    Certifications and documents

    Push-button module 2gang, intg temp. sensor+bus coupl. unit,KNX-S.1/B.3/B.7
    PDF
    1,50 MB
    REACH declaration 75163594
    PDF

    Downloads

    • Image 75163594 | Hager

      Product Image 75163594

    • Product datasheet

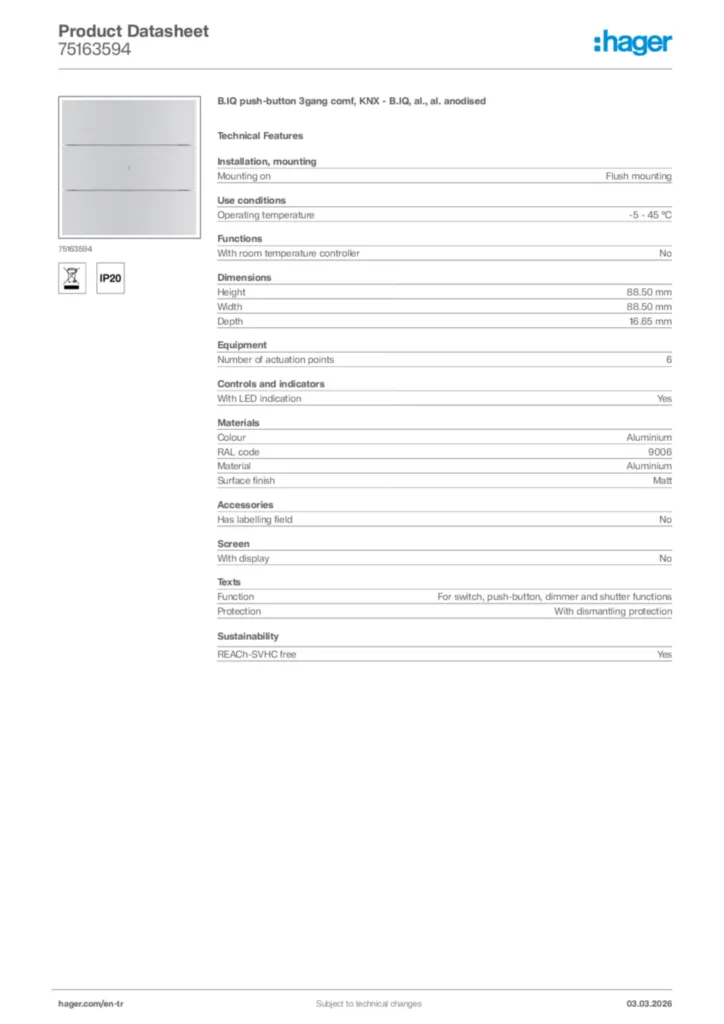

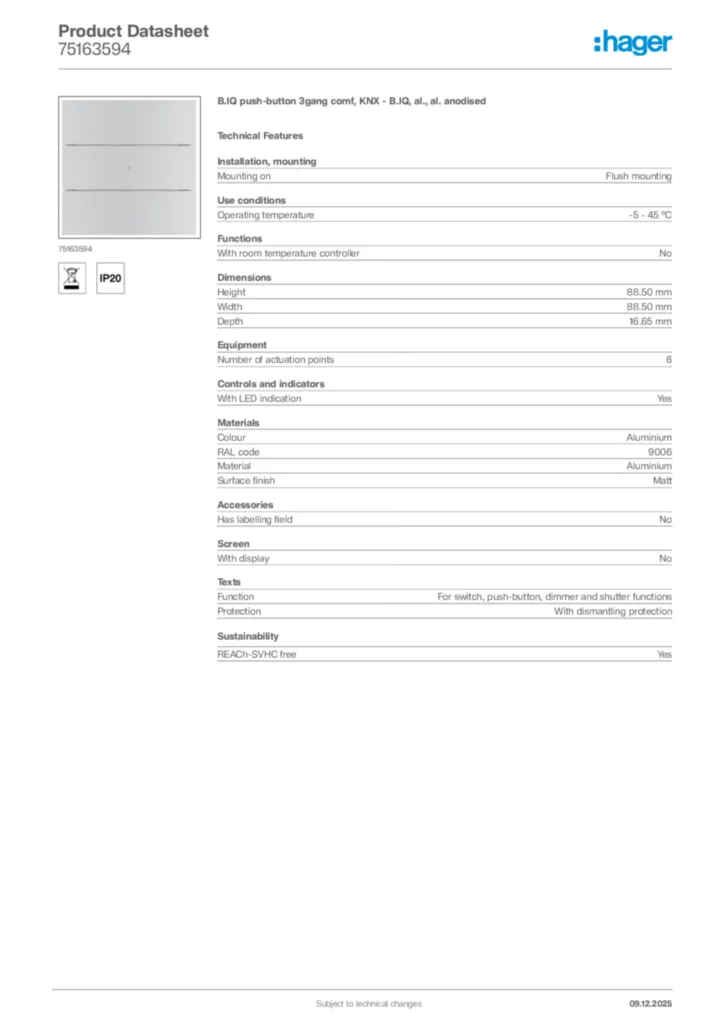

      Image Hager Product data sheet 75163594 | Hager

      Hager Product data sheet 75163594

      B.IQ push-button 3gang comf, KNX - B.IQ, al., al. anodised

      PDF

    • Installation manual

      Image Manual for 751615xx-751625xx-751635xx-751645xx - B.IQ push-button 1gang comfort (DE-EN-NL-NO-ES, 2021-12) | Hager

      Manual for 751615xx-751625xx-751635xx-751645xx - B.IQ push-button 1gang comfort (DE-EN-NL-NO-ES, 2021-12)

      Installation manual International 2004-04-20

      PDF
      400,23 kB

    • Tool

      Image Label templates (DesignPro 2000) for B.IQ touch sensors - 7516xx-7566xx, as from: 2014-01 | Hager

      Label templates (DesignPro 2000) for B.IQ touch sensors - 7516xx-7566xx, as from: 2014-01

      Tool de-DE 2023-10-30

      ZIP
      72,77 kB

    • KNX product database

      Image KNX Database (from ETS2) for 751635xx - B.IQ push-button 3gang comfort (2012-10) | Hager

      KNX Database (from ETS2) for 751635xx - B.IQ push-button 3gang comfort (2012-10)

      KNX product database International 2023-08-25

      VD1
      99,62 kB
      Image KNX Database (from ETS2) for 7516359xx - B.IQ push-button 3gang comfort (2012-10) | Hager

      KNX Database (from ETS2) for 7516359xx - B.IQ push-button 3gang comfort (2012-10)

      KNX product database International 2023-08-25

      VD1
      200,26 kB

    • Application Guide

      Image Application description ETS for 7516159xx-7516259xx-7516359xx-7516459xx - B.IQ push-button comfort (EN, 2004-08) | Hager

      Application description ETS for 7516159xx-7516259xx-7516359xx-7516459xx - B.IQ push-button comfort (EN, 2004-08)

      Application Guide en-GB 2020-01-01

      PDF
      195,58 kB

    • Declaration of conformity

      Image Declaration of Conformity | Hager

      Declaration of Conformity

      Declaration of conformity International 2021-03-05

      PDF
      258,49 kB
      Image Declaration of Conformity | Hager

      Declaration of Conformity

      Declaration of conformity International 2021-03-05

      PDF
      258,73 kB
    More documentation
