B.IQ push-button 3gang comf, KNX - B.IQ, glass p. white 75163590

EAN
4011334380870
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

B.IQ push-button 3gang comf, KNX - B.IQ, glass p. white

75163590

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Must-have accessories

Previous
Previous
75040001
75040001
Bus coupling unit flush-mtd, KNX
Add to a list
Add to a list

Technical properties

Install­a­tion, mounting
  • Mounting on
    Flush mounting
Use condi­tions
  • Oper­ating temper­ature
    -5 - 45 °C
Func­tions
  • With room temper­ature controller
    No
Dimen­sions
  • Height
    88.50 mm
  • Width
    88.50 mm
  • Depth
    16.65 mm
Equip­ment
  • Number of actu­ation points
    6
Controls and indic­ators
  • With LED indic­a­tion
    Yes
Mater­ials
  • Colour
    Polar white
  • RAL code
    9010
  • Material
    Glass
  • Surface finish
    Glossy
Accessories
  • Has labelling field
    No
Screen
  • With display
    No
Texts
  • Func­tion
    For switch, push-but­ton, dimmer and shutter func­tions
  • Protec­tion
    With dismant­ling protec­tion

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

Push-button module 2gang, intg temp. sensor+bus coupl. unit,KNX-S.1/B.3/B.7
PDF
1,50 MB
Hager REACH declaration 75163590
PDF
Hager RoHS report 75163590
PDF

Downloads

  • Image 75163590 | Hager

    Product Image 75163590

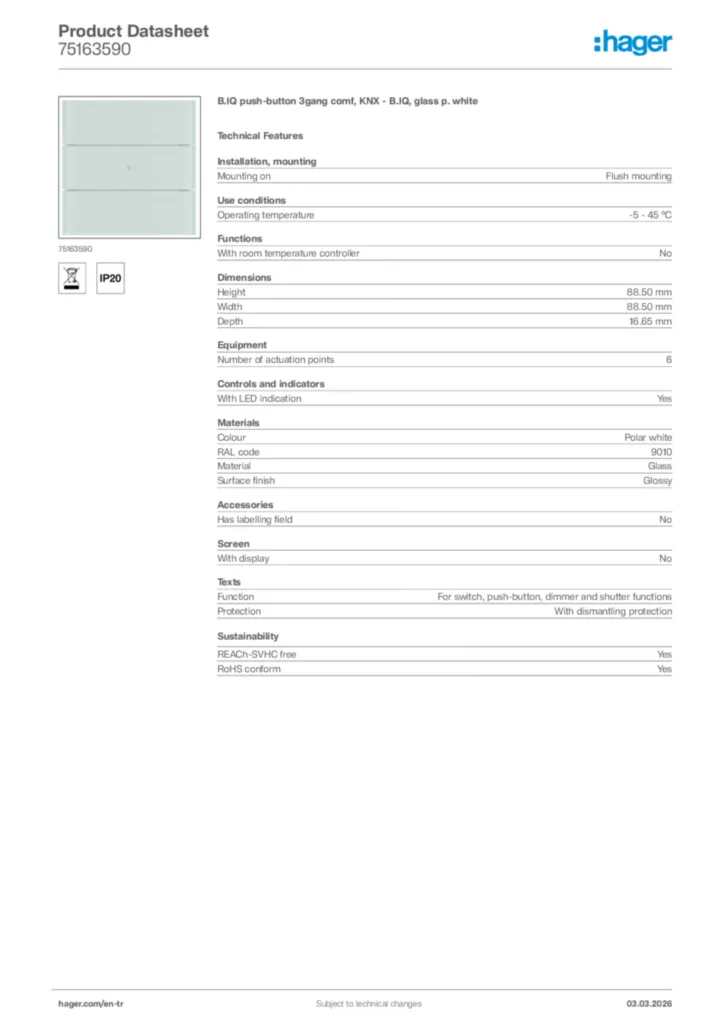

  • Product datasheet

    Image Hager Product data sheet 75163590 | Hager

    Hager Product data sheet 75163590

    B.IQ push-button 3gang comf, KNX - B.IQ, glass p. white

    PDF

  • Installation manual

    Image Manual for 751615xx-751625xx-751635xx-751645xx - B.IQ push-button 1gang comfort (DE-EN-NL-NO-ES, 2021-12) | Hager

    Manual for 751615xx-751625xx-751635xx-751645xx - B.IQ push-button 1gang comfort (DE-EN-NL-NO-ES, 2021-12)

    Installation manual International 2004-04-20

    PDF
    400,23 kB

  • Tool

    Image Label templates (DesignPro 2000) for B.IQ touch sensors - 7516xx-7566xx, as from: 2014-01 | Hager

    Label templates (DesignPro 2000) for B.IQ touch sensors - 7516xx-7566xx, as from: 2014-01

    Tool de-DE 2023-10-30

    ZIP
    72,77 kB

  • KNX product database

    Image KNX Database (from ETS2) for 751635xx - B.IQ push-button 3gang comfort (2012-10) | Hager

    KNX Database (from ETS2) for 751635xx - B.IQ push-button 3gang comfort (2012-10)

    KNX product database International 2023-08-25

    VD1
    99,62 kB
    Image KNX Database (from ETS2) for 7516359xx - B.IQ push-button 3gang comfort (2012-10) | Hager

    KNX Database (from ETS2) for 7516359xx - B.IQ push-button 3gang comfort (2012-10)

    KNX product database International 2023-08-25

    VD1
    200,26 kB

  • Application Guide

    Image Application description ETS for 7516159xx-7516259xx-7516359xx-7516459xx - B.IQ push-button comfort (EN, 2004-08) | Hager

    Application description ETS for 7516159xx-7516259xx-7516359xx-7516459xx - B.IQ push-button comfort (EN, 2004-08)

    Application Guide en-GB 2020-01-01

    PDF
    195,58 kB

  • Declaration of conformity

    Image Declaration of Conformity | Hager

    Declaration of Conformity

    Declaration of conformity International 2021-03-05

    PDF
    258,49 kB
    Image Declaration of Conformity | Hager

    Declaration of Conformity

    Declaration of conformity International 2021-03-05

    PDF
    258,73 kB
