SCHUKO socket outlet/USB A-A, S.1/B.x, polar white matt 48031909
EAN
4011334510529
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 15 products available
Referenced by
-
10238919Frame 3gang hor., lab. field, S.1, p. white glossy
-
10228919Frame 2gang hor., lab. field, S.1, p. white glossy
-
10138919Frame 3gang vert., lab. field, S.1, p. white glossy
-
10128919Frame 2gang vert., lab. field, S.1, p. white glossy
-
10149909Frame 4gang, S.1, p. white, matt, plastic
-
10148989Frame 4gang, S.1, p. white glossy
-
10148982Frame 4gang, S.1, white glossy
-
10129909Frame 2gang, S.1, p. white, matt, plastic
-
10128989Frame 2gang, S.1, p. white glossy
-
10128982Frame 2gang, S.1, white glossy
-
13098989Frame l. cut-out, S.1, p. white glossy
-
10159909Frame 5gang, S.1, p. white, matt, plastic
-
10158989Frame 5gang, S.1, p. white glossy
-
10158982Frame 5gang, S.1, white glossy
-
10139909Frame 3gang, S.1, p. white, matt, plastic
Technical properties
Electric current
-
Rated current16 A
-
Output current2,400 mA
Voltage
-
Rated voltage250 V
-
Nominal voltage250 - 250 V
-
Output voltage4.75 - 5.25 V
Frequency
-
Frequency50 - 50 Hz
Power
-
Output power12 W
-
Power consumption standby0.05 W
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth45 mm
-
Number of units1
-
Built-in depth flush-mounted boxes40 mm
-
Built-in depth32 mm
Connection
-
Connector/plug typePlug clamp
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionPlug-in connection
-
Mounting typeScrew mounting, Claw mounting
-
Connector/plug type USBAA
Equipment
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertNo
-
With hinged lidNo
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionYes
-
Impact resistance IKIK02
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingNo
-
Related SystemsS.x/B.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

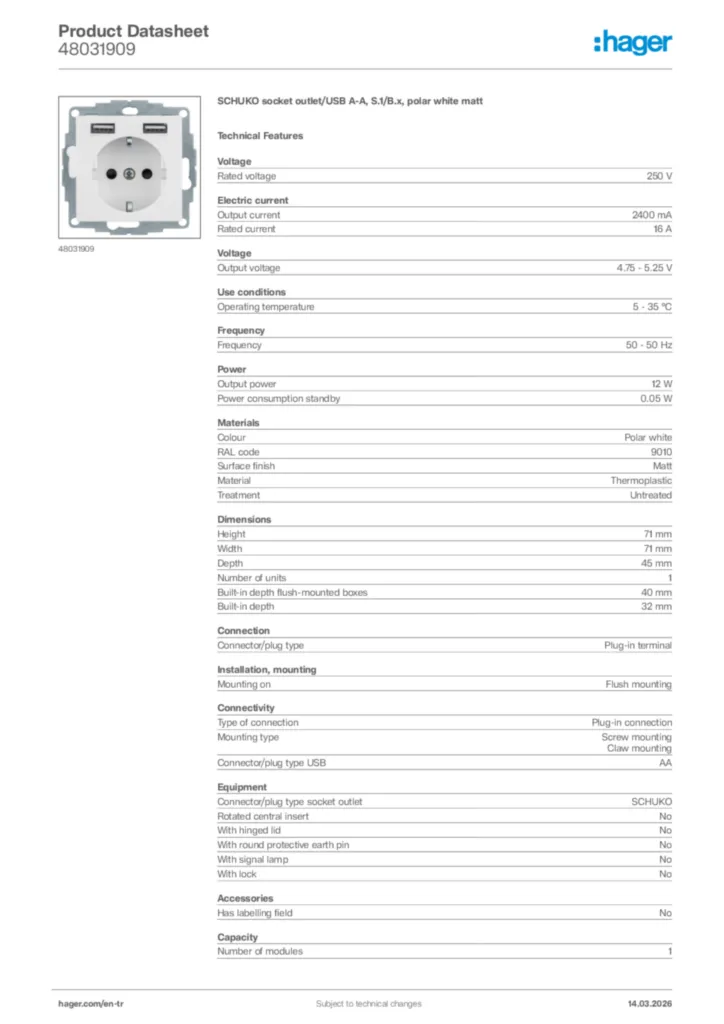

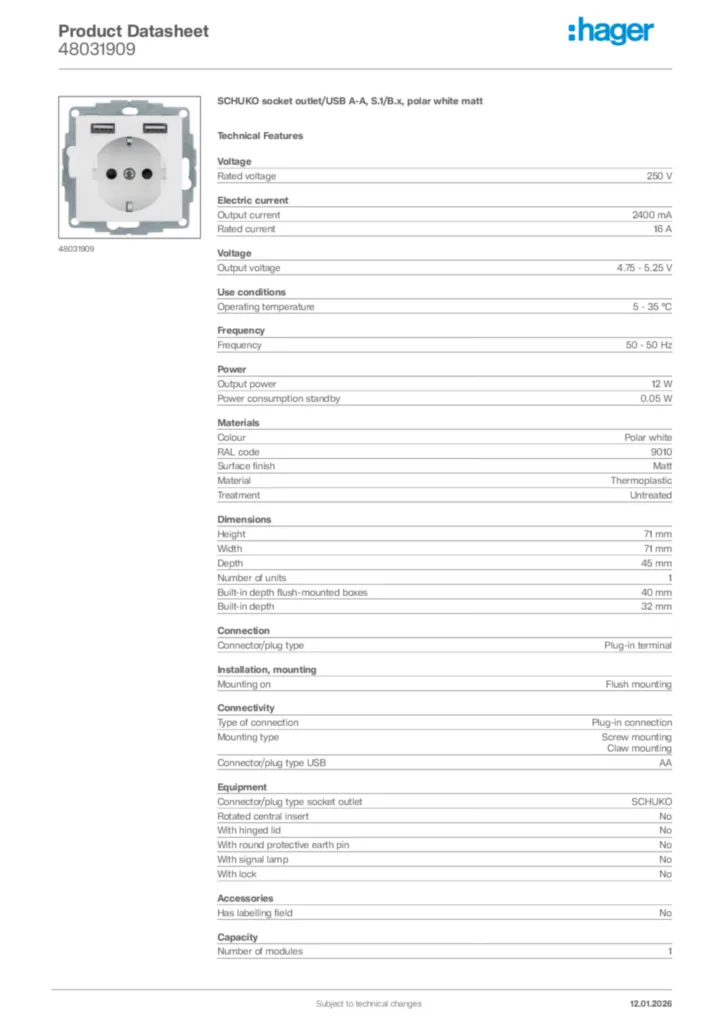

Product datasheet
