High definition soc. out., S.1, white glossy 3315428982
EAN
4011334341710
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Cover frame for domestic switching devices 3 products available
Compatible products
-
Referenced by 15 products available
Referenced by
-
10238919Frame 3gang hor., lab. field, S.1, p. white glossy
-
10228919Frame 2gang hor., lab. field, S.1, p. white glossy
-
10138919Frame 3gang vert., lab. field, S.1, p. white glossy
-
10128919Frame 2gang vert., lab. field, S.1, p. white glossy
-
10149909Frame 4gang, S.1, p. white, matt, plastic
-
10148989Frame 4gang, S.1, p. white glossy
-
10148982
Frame 4gang, S.1, white glossy
-
10129909Frame 2gang, S.1, p. white, matt, plastic
-
10128989Frame 2gang, S.1, p. white glossy
-
10128982Frame 2gang, S.1, white glossy
-
13098989Frame l. cut-out, S.1, p. white glossy
-
10159909Frame 5gang, S.1, p. white, matt, plastic
-
10158989Frame 5gang, S.1, p. white glossy
-
10158982Frame 5gang, S.1, white glossy
-
10139909Frame 3gang, S.1, p. white, matt, plastic
Technical properties
Connection
-
Connector/plug typeHDMI
-
Number of connections1
Frequency
-
Frequency50 - 85 Hz
Materials
-
ColourWhite
-
RAL code1013
-
Surface finishGlossy
-
MaterialMetal, Plastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth28.30 mm
-
Built-in depth flush-mounted boxes18 mm
-
Built-in depth16.80 mm
Connectivity
-
Mounting typeScrew mounting
Equipment
-
ShieldedYes
-
With dust coverNo
Safety
-
Ingress Protection (IP) classIP20
-
Related SystemsS.x/B.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

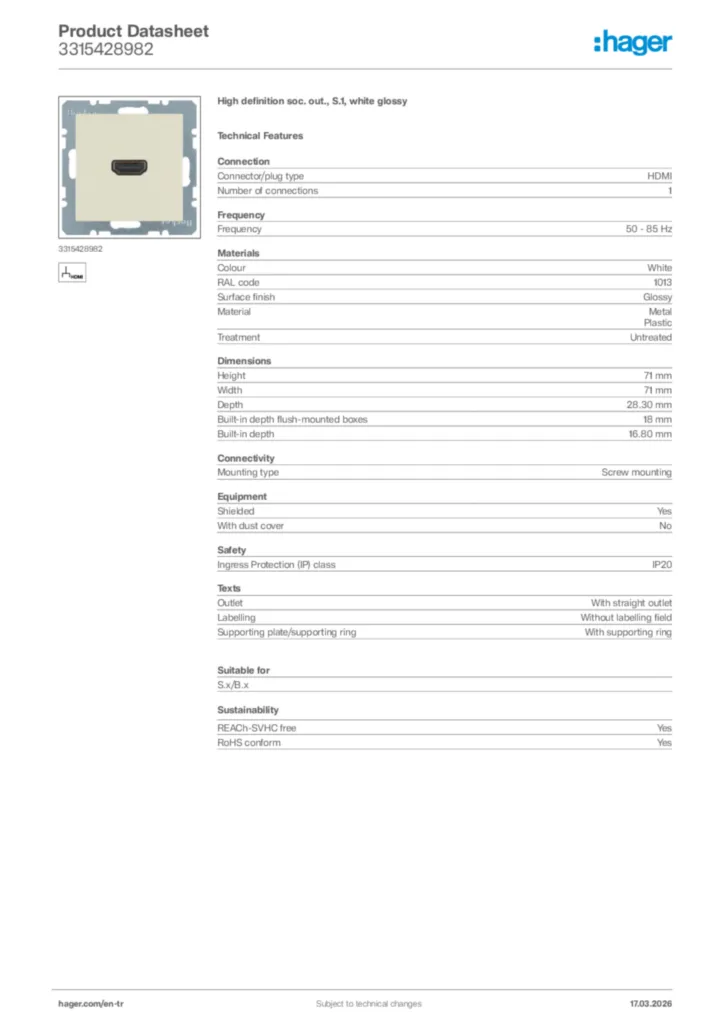

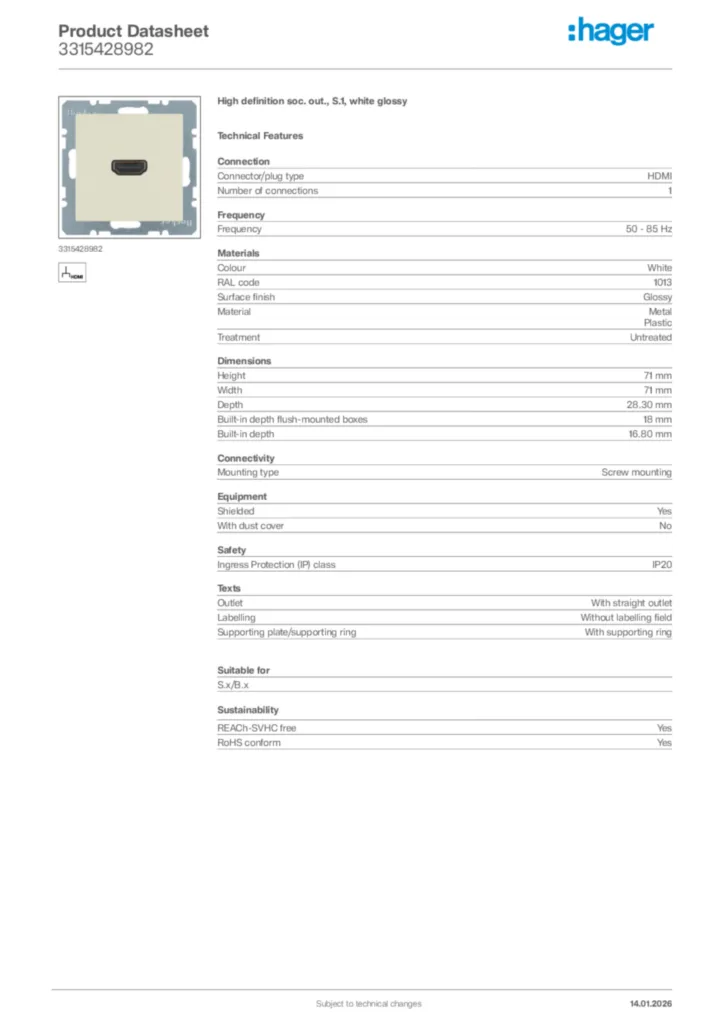

Hager Product data sheet 3315428982
High definition soc. out., S.1, white glossy
PDF -
Installation manual
Manual for 33153xx-33154xx - Multimedia sockets (DE-EN, 2020-12)
Installation manual en-GB, de-DE 2023-01-06
PDF3,31 MB
Manual for 33153xx-33154xx - Multimedia sockets (DE-EN, 2023-03)
Installation manual en-GB, de-DE 2023-04-13
PDF3,31 MB -
Declaration of conformity
Declaration of conformity International 2023-06-20
PDF267,76 kB
