SCHUKO sock.outl. w. hing. cov., label. field a. cont.prot., Q.x, alu velvety 47526084

EAN
4011334446743
Packaging
10 Pieces

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

SCHUKO sock.outl. w. hing. cov., label. field a. cont.prot., Q.x, alu velvety

47526084

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • Accessor­ies/s­pare parts for domestic switching devices 1 products available

Compatible products

  • Referenced by 39 products available

Complete your system

  • Accessor­ies/s­pare parts for domestic switching devices
  • 10107200

    Sealing set for soc. out.s/centre plates, K.x/Q.x, trans.
    0.00 €  / *

Referenced by

  • 10136086

    Frame 3gang, Q.1, ant. velvety, lacq.
    0.00 €  / *
  • 10146094

    Frame 4gang Q.3 alu velvety, lacquered
    0.00 €  / *
  • 10156099

    Frame 5gang, Q.3, p. white velvety
    0.00 €  / *
  • 10156096

    Frame 5gang, Q.3, ant. velvety, lacq.
    0.00 €  / *
  • 10156094

    Frame 5gang Q.3 alu velvety, lacquered
    0.00 €  / *
  • 10107200

    Sealing set for soc. out.s/centre plates, K.x/Q.x, trans.
    0.00 €  / *
  • 10136089

    Frame 3gang, Q.1, p. white velvety
    0.00 €  / *
  • 10116086

    Frame 1gang, Q.1, ant. velvety, lacq.
    0.00 €  / *
  • 10126086

    Frame 2gang, Q.1, ant. velvety, lacq.
    0.00 €  / *
  • 10146089

    Frame 4gang, Q.1, p. white velvety
    0.00 €  / *
  • 10116062

    Frame 1gang, Q.1, red velvety
    0.00 €  / *
  • 10126062

    Frame 2gang, Q.1, red velvety
    0.00 €  / *
  • 10136062

    Frame 3gang, Q.1, red velvety
    0.00 €  / *
  • 10116084

    Frame 1gang Q.1 alu velvety, lacquered
    0.00 €  / *
  • 10126084

    Frame 2gang Q.1 alu velvety, lacquered
    0.00 €  / *
  • 10136084

    Frame 3gang Q.1 alu velvety, lacquered
    0.00 €  / *
  • 10116045

    Contrast frame, 1gang Q.1 anthracite, velvety
    0.00 €  / *
  • 10146096

    Frame 4gang, Q.3, ant. velvety, lacq.
    0.00 €  / *
  • 13096089

    Frame l. cut-out, Q.1, p. white velvety
    0.00 €  / *
  • 10156089

    Frame 5gang, Q.1, p. white velvety
    0.00 €  / *

Technical properties

Elec­tric current
  • Rated current
    16 A
Voltage
  • Rated voltage
    250 V
  • Nominal voltage
    250 - 250 V
Frequency
  • Frequency
    50 - 60 Hz
Mater­ials
  • Colour
    Aluminium
  • RAL code
    9006
  • Surface finish
    Velvety
  • Material
    Ther­mo­plastic
  • Treat­ment
    Varnished
Dimen­sions
  • Height
    71 mm
  • Width
    71 mm
  • Number of units
    1
  • Built-in depth flush-­mounted boxes
    35 mm
  • Built-in depth
    32 mm
Connec­tion
  • Connect­or/plug type
    Plug clamp
Install­a­tion, mounting
  • Mounting on
    Flush mounting
Connectivity
  • Type of connec­tion
    Plug-in connec­tion
  • Mounting type
    Screw mounting, Claw mounting
Equip­ment
  • Connect­or/plug type socket outlet
    SCHUKO
  • Rotated central insert
    No
  • With hinged lid
    Yes
  • With round protective earth pin
    No
  • With signal lamp
    No
  • With lock
    No
Accessories
  • Has labelling field
    Yes
Cover, door
  • Type of lid
    Self-closing hinged cover
Capa­city
  • Number of modules
    1
Safety
  • With enhanced contact protec­tion
    Yes
  • Impact resist­ance IK
    IK02
  • Ingress Protec­tion (IP) class
    IP20
Func­tions
  • With orient­a­tion lighting
    No
  • With func­tion lighting
    No
  • Related Systems
    Q.x

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

Socket-outlet 2-gang Wago plug/clamp technique C-Profile in traffic white
PDF
48,73 MB
Hager REACH declaration 47526084
PDF
Hager RoHS report 47526084
PDF

Downloads

  • Image 47526084 | Hager

    Product Image 47526084

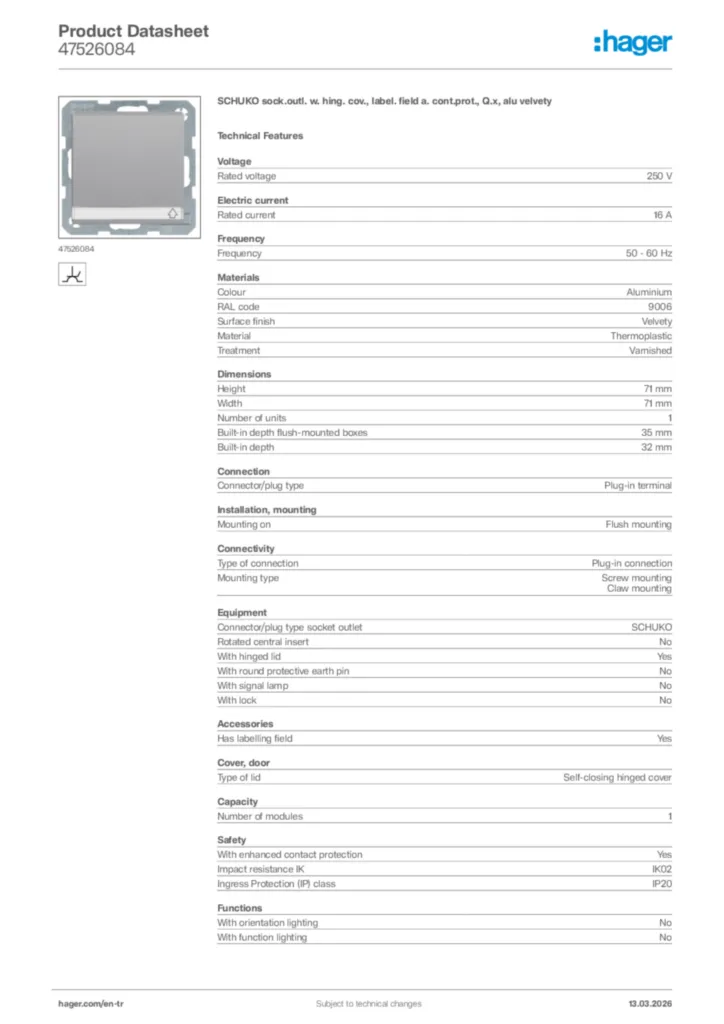

  • Product datasheet

    Image Hager Product data sheet 47526084 | Hager

    Hager Product data sheet 47526084

    SCHUKO sock.outl. w. hing. cov., label. field a. cont.prot., Q.x, alu velvety

    PDF

  • Declaration of conformity

    Image Declaration of conformity International 2023-05-02 | Hager

    Declaration of conformity International 2023-05-02

    PDF
    451,70 kB
