    • 47436089
    EAN
    4011334312918
    Packaging
    10 Pieces
    • Sockets - Berker Q.1
    • Sockets - Berker Q.3
    • See more

    SCHUKO soc. out., Q.x, p. white velvety 47436089

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    SCHUKO soc. out., Q.x, p. white velvety

    47436089

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Compatible products

    • Referenced by 6 products available

    Referenced by

    • 10116019

      Frame 1gang, lab. field, Q.1, p. white velvety
      0.00 €  / *
    • 10516099

      Frame 1gang, lab. field, Q.3, p. white velvety
      0.00 €  / *
    • 10226099

      Frame 2gang hor., lab. field, Q.3, p. white velvety
      0.00 €  / *
    • 10236099

      Frame 3gang hor., lab. field, Q.3, p. white velvety
      0.00 €  / *
    • 10526099

      Frame 2gang vert., lab. field, Q.3, p. white velvety
      0.00 €  / *
    • 10536099

      Frame 3gang vert., lab. field, Q.3, p. white velvety
      0.00 €  / *

    Technical properties

    Voltage
    • Rated voltage
      250 V
    Elec­tric current
    • Rated current
      16 A
    Frequency
    • Frequency
      50 - 60 Hz
    Mater­ials
    • Colour
      Polar white
    • RAL code
      9010
    • Surface finish
      Velvety
    • Material
      Duro­plastic
    • Treat­ment
      Untreated
    Dimen­sions
    • Height
      71 mm
    • Width
      71 mm
    • Number of units
      1
    • Built-in depth flush-­mounted boxes
      31 mm
    • Built-in depth
      32 mm
    Connec­tion
    • Connect­or/plug type
      Plug-in terminal
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    Connectivity
    • Type of connec­tion
      Plug-in connec­tion
    • Mounting type
      Screw mounting, Claw mounting
    Equip­ment
    • Connect­or/plug type socket outlet
      SCHUKO
    • Rotated central insert
      No
    • With hinged lid
      No
    • With round protective earth pin
      No
    • With signal lamp
      No
    • With lock
      No
    Accessories
    • Has labelling field
      No
    Capa­city
    • Number of modules
      1
    Safety
    • With enhanced contact protec­tion
      No
    • Ingress Protec­tion (IP) class
      IP20
    Func­tions
    • With orient­a­tion lighting
      No
    • With func­tion lighting
      No
    • Related Systems
      Q.x

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    Certifications and documents

    Socket-outlet 2-gang Wago plug/clamp technique C-Profile in traffic white
    PDF
    48,73 MB

    Downloads

    • Image 47436089 | Hager

      Product Image 47436089

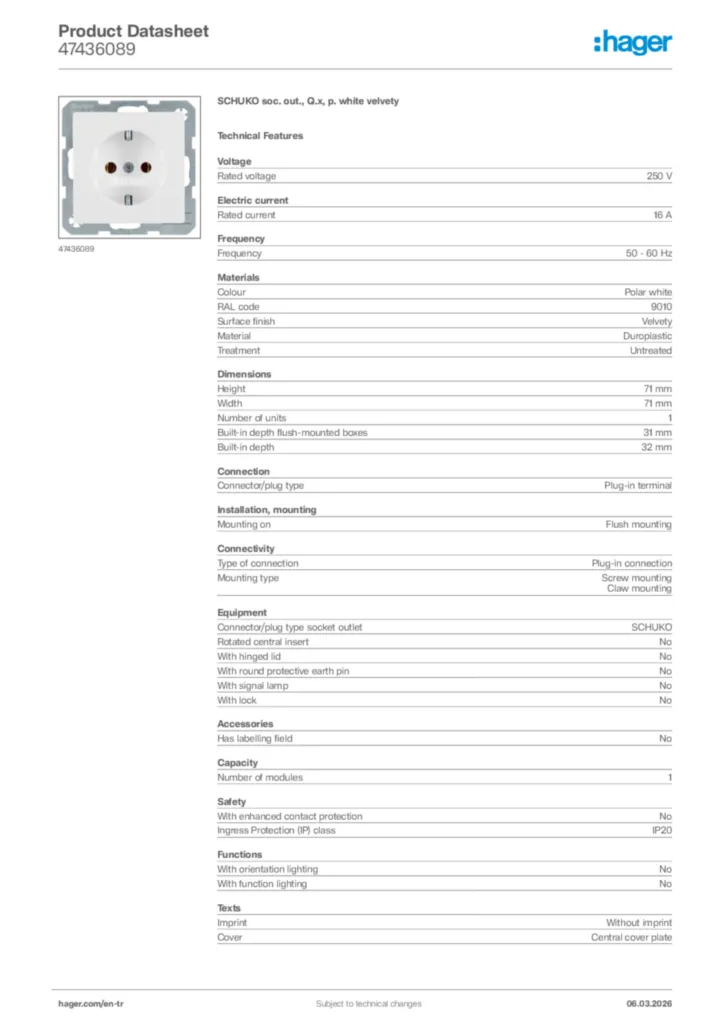

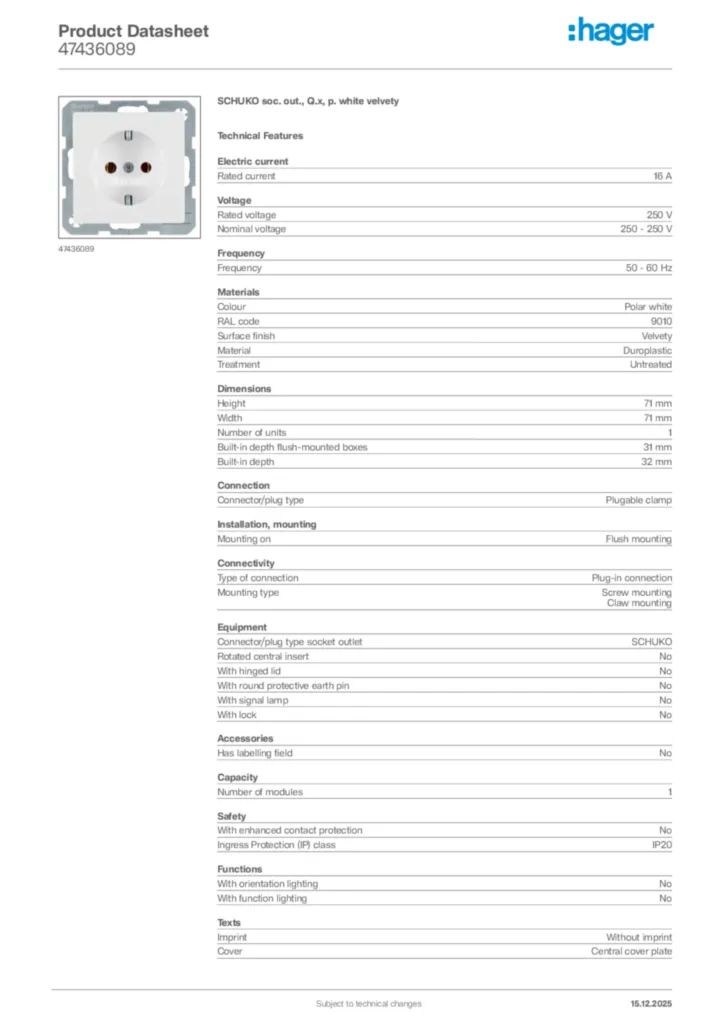

    • Product datasheet

      Image Hager Product data sheet 47436089 | Hager

      Hager Product data sheet 47436089

      SCHUKO soc. out., Q.x, p. white velvety

      PDF

    • Declaration of performance

      Image Declaration of performance en-GB 2026-02-20 | Hager

      Declaration of performance en-GB 2026-02-20

      PDF
      630,03 kB

    • Declaration of conformity

      Image Declaration of conformity International 2023-05-02 | Hager

      Declaration of conformity International 2023-05-02

      PDF
      451,70 kB
    More documentation

    Discover more of this product range

      5
    • 1
      6765106086 - Soc.out. earth.pin+LED orient.,enhncd contact prot.,screw-in lift ,Q1/3,ant.velv
      6765106086
      Soc.out. earth.pin+LED orient., enhncd contact prot., screw-in lift , Q1/3, ant.velv
    • 2
      47466089 - SCHUKO soc.out. hinged cover,enhncd contact prot.,var. in 45°step,Q.x
      47466089
      SCHUKO soc.out. hinged cover, enhncd contact prot., var. in 45°step, Q.x
    • 3
      6768766086 - Soc. out. earthing pin, enhncd contact prot., Q.x, ant. velvety, lacq.
      6768766086
      Soc. out. earthing pin, enhncd contact prot., Q.x, ant. velvety, lacq.
    • 4
      47516086 - SCHUKO soc. out. hinged cover, enhncd contact prot., Q.x, ant. velvety lacq.
      47516086
      SCHUKO soc. out. hinged cover, enhncd contact prot., Q.x, ant. velvety lacq.
    • 5
      6167036086 - Soc. out. out earthing contact, Q.x, ant. velvety, lacq.
      6167036086
      Soc. out. out earthing contact, Q.x, ant. velvety, lacq.
