SCHUKO soc. out. 45°, Q.x, p. white velvety 47276089
Login to create a product list
You need to be logged into your myHager account to create product lists
Also available in
Product colour - Polar white
Anthracite
Polar white
Complete your system
Compatible products
-
Referenced by 65 products available
Referenced by
-
10526099Frame 2gang vert., lab. field, Q.3, p. white velvety
-
10116045Contrast frame, 1gang Q.1 anthracite, velvety
-
10136084Frame 3gang Q.1 alu velvety, lacquered
-
10126084Frame 2gang Q.1 alu velvety, lacquered
-
10536094Frame 3gang with labelling field vertical Q.3 alu velvety, lacquered
-
10526094Frame 2gang with labelling field vertical Q.3 alu velvety, lacquered
-
10236094Frame 3gang with labelling field horizontal Q.3 alu velvety, lacquered
-
10226094Frame 2gang with labelling field horizontal Q.3 alu velvety, lacquered
-
10516094Frame 1gang with labelling field Q.3 alu velvety, lacquered
-
10536099Frame 3gang vert., lab. field, Q.3, p. white velvety
-
10116089Frame 1gang, Q.1, p. white velvety
-
10236099Frame 3gang hor., lab. field, Q.3, p. white velvety
-
10226099Frame 2gang hor., lab. field, Q.3, p. white velvety
-
10516099Frame 1gang, lab. field, Q.3, p. white velvety
-
10156094Frame 5gang Q.3 alu velvety, lacquered
-
10156096Frame 5gang, Q.3, ant. velvety, lacq.
-
10156099Frame 5gang, Q.3, p. white velvety
-
10256014Frame 5gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10246014Frame 4gang with labelling field horizontal Q.1 alu velvety, lacquered
-
10236014Frame 3gang with labelling field horizontal Q.1 alu velvety, lacquered
Technical properties
Voltage
-
Rated voltage250 V
Electric current
-
Rated current16 A
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishVelvety
-
MaterialDuroplastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Number of units1
-
Built-in depth32 mm
Connection
-
Connector/plug typePlug-in terminal
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionPlug-in connection
-
Mounting typeScrew mounting, Claw mounting
Equipment
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertYes
-
With hinged lidNo
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionNo
-
Impact resistance IKIK02
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingNo
Identification
-
With imprintNo
-
Related SystemsQ.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

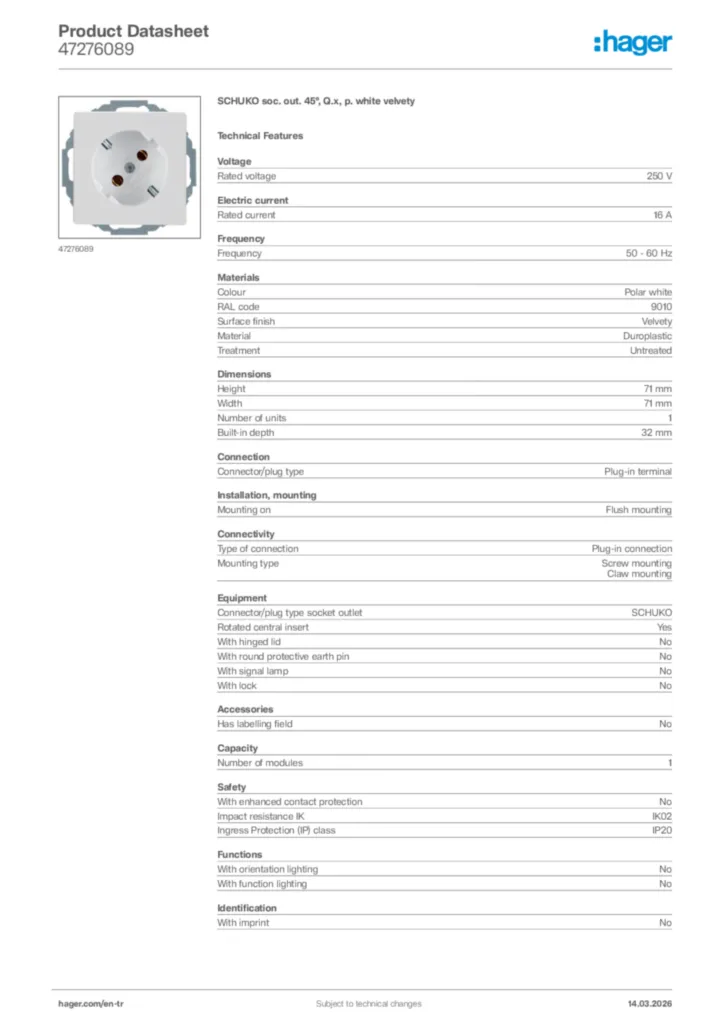

Product datasheet
Hager Product data sheet 47276089
SCHUKO soc. out. 45°, Q.x, p. white velvety
PDF -
Declaration of performance
Declaration of performance en-GB 2026-02-20
PDF630,03 kB -
Declaration of conformity
Declaration of conformity International 2023-05-02
PDF451,70 kB
