    • 47397003
    EAN
    4011334378471
    Packaging
    10 Pieces
    • Sockets - Berker K.5

    SCHUKO soc. out., K.5, al., matt, lacq. 47397003

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    SCHUKO soc. out., K.5, al., matt, lacq.

    47397003

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Compatible products

    • Referenced by 20 products available

    Referenced by

    • 13337003

      Frame 3gang vert., K.5, al., al. anodised
      0.00 €  / *
    • 13537004

      Frame 5gang vert., K.5, stainless steel, metal matt finish
      0.00 €  / *
    • 13437004

      Frame 4gang vert., K.5, stainless steel, metal matt finish
      0.00 €  / *
    • 13337004

      Frame 3gang vert., K.5, stainless steel, metal matt finish
      0.00 €  / *
    • 13937004

      Frame 5gang hor., K.5, stainless steel, metal matt finish
      0.00 €  / *
    • 13837004

      Frame 4gang hor., K.5, stainless steel, metal matt finish
      0.00 €  / *
    • 13737004

      Frame 3gang hor., K.5, stainless steel, metal matt finish
      0.00 €  / *
    • 13637004

      Frame 2gang hor., K.5, stainless steel, metal matt finish
      0.00 €  / *
    • 13537003

      Frame 5gang vert., K.5, al., al. anodised
      0.00 €  / *
    • 13437003

      Frame 4gang vert., K.5, al., al. anodised
      0.00 €  / *
    • 13097003

      Frame l. cut-out, K.5, al., al. anodised
      0.00 €  / *
    • 13937003

      Frame 5gang hor., K.5, al., al. anodised
      0.00 €  / *
    • 13837003

      Frame 4gang hor., K.5, al., al. anodised
      0.00 €  / *
    • 13737003

      Frame 3gang hor., K.5, al., al. anodised
      0.00 €  / *
    • 13637003

      Frame 2gang hor., K.5, al., al. anodised
      0.00 €  / *
    • 13237004

      Frame 2gang vert., K.5, stainless steel, metal matt finish
      0.00 €  / *
    • 13237003

      Frame 2gang vert., K.5, al., al. anodised
      0.00 €  / *
    • 13137004

      Frame 1gang, K.5, stainless steel, metal matt finish
      0.00 €  / *
    • 13137003

      Frame 1gang, K.5, al., al. anodised
      0.00 €  / *
    • 13097004

      Frame l. cut-out, K.5, stainless steel, metal matt finish
      0.00 €  / *

    Technical properties

    Voltage
    • Rated voltage
      250 V
    Elec­tric current
    • Rated current
      16 A
    Frequency
    • Frequency
      50 - 60 Hz
    Mater­ials
    • Colour
      Aluminium
    • RAL code
      9006
    • Surface finish
      Matt
    • Material
      Ther­mo­plastic
    • Treat­ment
      Untreated, Varnished
    Dimen­sions
    • Height
      71 mm
    • Width
      71 mm
    • Number of units
      1
    • Built-in depth flush-­mounted boxes
      31 mm
    • Built-in depth
      32 mm
    Connec­tion
    • Connect­or/plug type
      Plug-in terminal
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    Connectivity
    • Type of connec­tion
      Plug-in connec­tion
    • Mounting type
      Screw mounting, Claw mounting
    Equip­ment
    • Connect­or/plug type socket outlet
      SCHUKO
    • Rotated central insert
      No
    • With hinged lid
      No
    • With round protective earth pin
      No
    • With signal lamp
      No
    • With lock
      No
    Accessories
    • Has labelling field
      Yes
    Capa­city
    • Number of modules
      1
    Safety
    • With enhanced contact protec­tion
      No
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP20
    Func­tions
    • With orient­a­tion lighting
      No
    • With func­tion lighting
      No
    Iden­ti­fic­a­tion
    • With imprint
      No
    • Related Systems
      K.x

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Socket-outlet 2-gang Wago plug/clamp technique C-Profile in traffic white
    PDF
    48,73 MB
    Hager REACH declaration 47397003
    PDF
    Hager RoHS report 47397003
    PDF

    Downloads

    • Image 47397003 | Hager

      Product Image 47397003

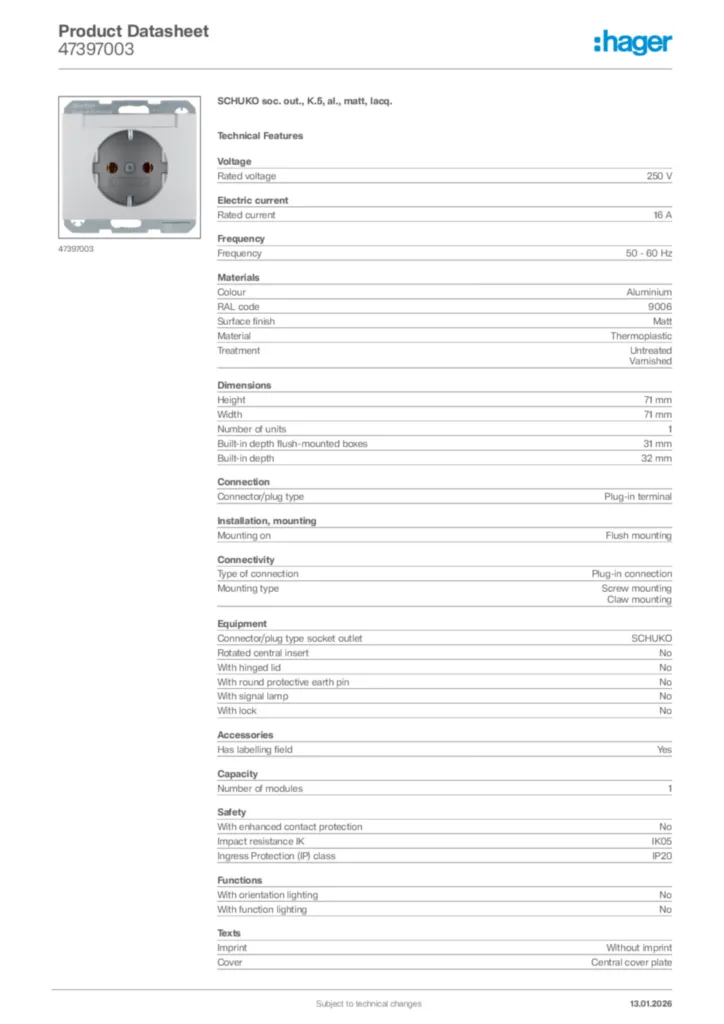

    • Product datasheet

      Image Hager Product data sheet 47397003 | Hager

      Hager Product data sheet 47397003

      SCHUKO soc. out., K.5, al., matt, lacq.

      PDF

    • Declaration of performance

      Image Declaration of performance en-GB 2026-02-20 | Hager

      Declaration of performance en-GB 2026-02-20

      PDF
      630,03 kB

    • Declaration of conformity

      Image Declaration of conformity International 2023-05-02 | Hager

      Declaration of conformity International 2023-05-02

      PDF
      451,70 kB
