Schuko socket outlet with screw-in lift terminals K.5 aluminium anodised 47157003
EAN
4011334378426
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 20 products available
Referenced by
-
13337003Frame 3gang vert., K.5, al., al. anodised
-
13537004Frame 5gang vert., K.5, stainless steel, metal matt finish
-
13437004Frame 4gang vert., K.5, stainless steel, metal matt finish
-
13337004Frame 3gang vert., K.5, stainless steel, metal matt finish
-
13937004Frame 5gang hor., K.5, stainless steel, metal matt finish
-
13837004Frame 4gang hor., K.5, stainless steel, metal matt finish
-
13737004Frame 3gang hor., K.5, stainless steel, metal matt finish
-
13637004Frame 2gang hor., K.5, stainless steel, metal matt finish
-
13537003Frame 5gang vert., K.5, al., al. anodised
-
13437003Frame 4gang vert., K.5, al., al. anodised
-
13097003Frame l. cut-out, K.5, al., al. anodised
-
13937003Frame 5gang hor., K.5, al., al. anodised
-
13837003Frame 4gang hor., K.5, al., al. anodised
-
13737003Frame 3gang hor., K.5, al., al. anodised
-
13637003Frame 2gang hor., K.5, al., al. anodised
-
13237004Frame 2gang vert., K.5, stainless steel, metal matt finish
-
13237003Frame 2gang vert., K.5, al., al. anodised
-
13137004Frame 1gang, K.5, stainless steel, metal matt finish
-
13137003Frame 1gang, K.5, al., al. anodised
-
13097004Frame l. cut-out, K.5, stainless steel, metal matt finish
Technical properties
Electric current
-
Rated current16 A
Voltage
-
Rated voltage250 V
-
Nominal voltage250 - 250 V
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourAluminium
-
RAL code9006
-
Surface finishMatt
-
MaterialAluminium
-
TreatmentAnodised
Dimensions
-
Height71 mm
-
Width71 mm
-
Number of units1
-
Built-in depth flush-mounted boxes31 mm
-
Built-in depth32 mm
Connection
-
Connector/plug typePlug clamp
Installation, mounting
-
Mounting onFlush mounting
Connectivity
-
Type of connectionPlug-in connection
-
Mounting typeScrew mounting, Claw mounting
Equipment
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertNo
-
With hinged lidNo
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionNo
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP20
Functions
-
With orientation lightingNo
-
With function lightingNo
-
Related SystemsK.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

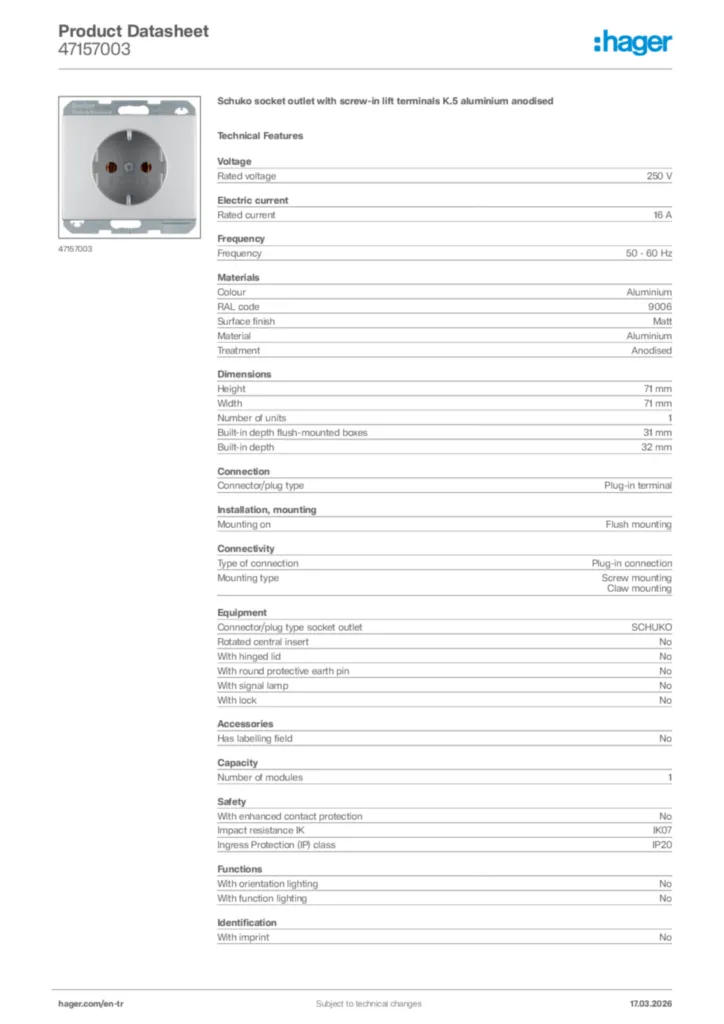

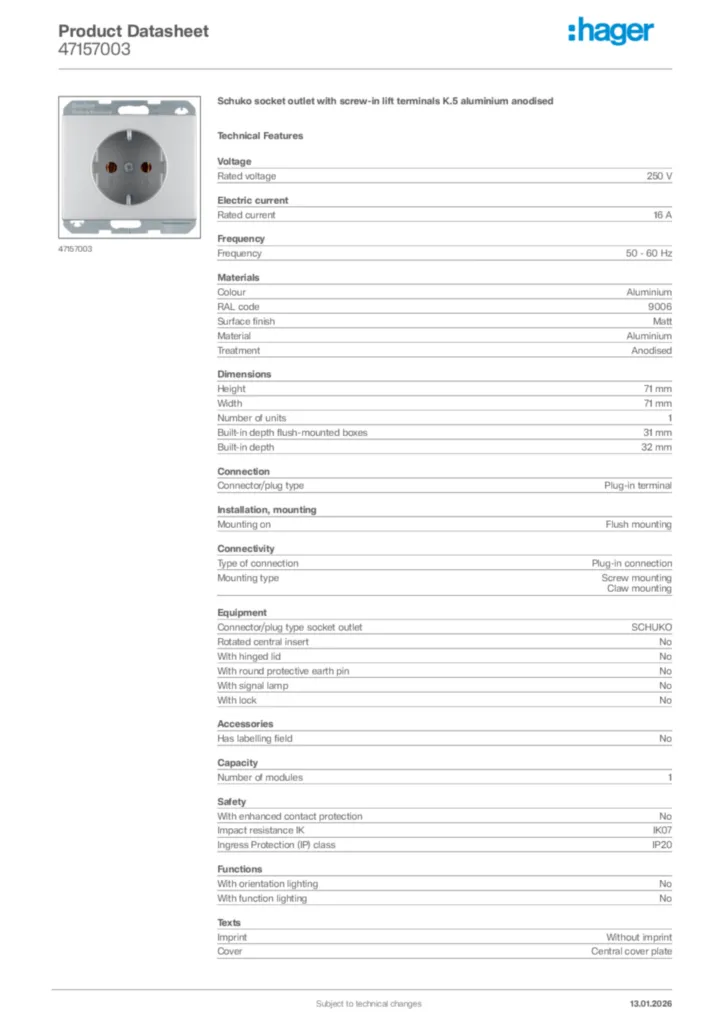

Product datasheet
Hager Product data sheet 47157003
Schuko socket outlet with screw-in lift terminals K.5 aluminium anodised
PDF -
Declaration of conformity
Declaration of conformity International 2023-05-02
PDF451,70 kB
