  • Home
  • Catalog
  • Switch ranges - design
  • Berker Q.1
  • Sockets - Berker Q.1
  • 41496089
  • Switch ranges - design

SCHUKO soc.out.,lab.field,enhncd contact prot.,screw-in lift term.,Q.x,wh velv 41496089

EAN
4011334313403
Packaging
10 Pieces

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

SCHUKO soc.out.,lab.field,enhncd contact prot.,screw-in lift term.,Q.x,wh velv

41496089

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Compatible products

  • Referenced by 37 products available

Referenced by

  • 10126062

    Frame 2gang, Q.1, red velvety
    0.00 €  / *
  • 10156096

    Frame 5gang, Q.3, ant. velvety, lacq.
    0.00 €  / *
  • 10156094

    Frame 5gang Q.3 alu velvety, lacquered
    0.00 €  / *
  • 10116089

    Frame 1gang, Q.1, p. white velvety
    0.00 €  / *
  • 10126089

    Frame 2gang, Q.1, p. white velvety
    0.00 €  / *
  • 10136089

    Frame 3gang, Q.1, p. white velvety
    0.00 €  / *
  • 10116086

    Frame 1gang, Q.1, ant. velvety, lacq.
    0.00 €  / *
  • 10126086

    Frame 2gang, Q.1, ant. velvety, lacq.
    0.00 €  / *
  • 10136086

    Frame 3gang, Q.1, ant. velvety, lacq.
    0.00 €  / *
  • 10116062

    Frame 1gang, Q.1, red velvety
    0.00 €  / *
  • 10156099

    Frame 5gang, Q.3, p. white velvety
    0.00 €  / *
  • 10136062

    Frame 3gang, Q.1, red velvety
    0.00 €  / *
  • 10116084

    Frame 1gang Q.1 alu velvety, lacquered
    0.00 €  / *
  • 10126084

    Frame 2gang Q.1 alu velvety, lacquered
    0.00 €  / *
  • 10136084

    Frame 3gang Q.1 alu velvety, lacquered
    0.00 €  / *
  • 10116045

    Contrast frame, 1gang Q.1 anthracite, velvety
    0.00 €  / *
  • 10116096

    Frame 1gang, Q.3, ant. velvety, lacq.
    0.00 €  / *
  • 10126096

    Frame 2gang, Q.3, ant. velvety, lacq.
    0.00 €  / *
  • 10136096

    Frame 3gang, Q.3, ant. velvety, lacq.
    0.00 €  / *
  • 10126099

    Frame 2gang Q.3 polar white velvety
    0.00 €  / *

Technical properties

Voltage
  • Rated voltage
    250 V
Elec­tric current
  • Rated current
    16 A
Frequency
  • Frequency
    50 - 60 Hz
Mater­ials
  • Colour
    Polar white
  • RAL code
    9010
  • Surface finish
    Velvety
  • Material
    Duro­plastic
  • Treat­ment
    Untreated
Dimen­sions
  • Height
    71 mm
  • Width
    71 mm
  • Number of units
    1
  • Built-in depth flush-­mounted boxes
    31 mm
  • Built-in depth
    32 mm
Install­a­tion, mounting
  • Mounting on
    Flush mounting
Connectivity
  • Type of connec­tion
    Screw terminal
  • Mounting type
    Screw mounting, Claw mounting
Equip­ment
  • Connect­or/plug type socket outlet
    SCHUKO
  • Rotated central insert
    No
  • With hinged lid
    No
  • With round protective earth pin
    No
  • With signal lamp
    No
  • With lock
    No
Accessories
  • Has labelling field
    Yes
Capa­city
  • Number of modules
    1
Safety
  • With enhanced contact protec­tion
    Yes
  • Impact resist­ance IK
    IK02
  • Ingress Protec­tion (IP) class
    IP20
Func­tions
  • With orient­a­tion lighting
    No
  • With func­tion lighting
    No
Iden­ti­fic­a­tion
  • With imprint
    No
  • Related Systems
    Q.x

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
Halogen free Yes

Certifications and documents

Socket-outlet 2-gang Wago plug/clamp technique C-Profile in traffic white
PDF
48,73 MB
Hager REACH declaration 41496089
PDF
Hager RoHS report 41496089
PDF

Downloads

  • Image 41496089 | Hager

    Product Image 41496089

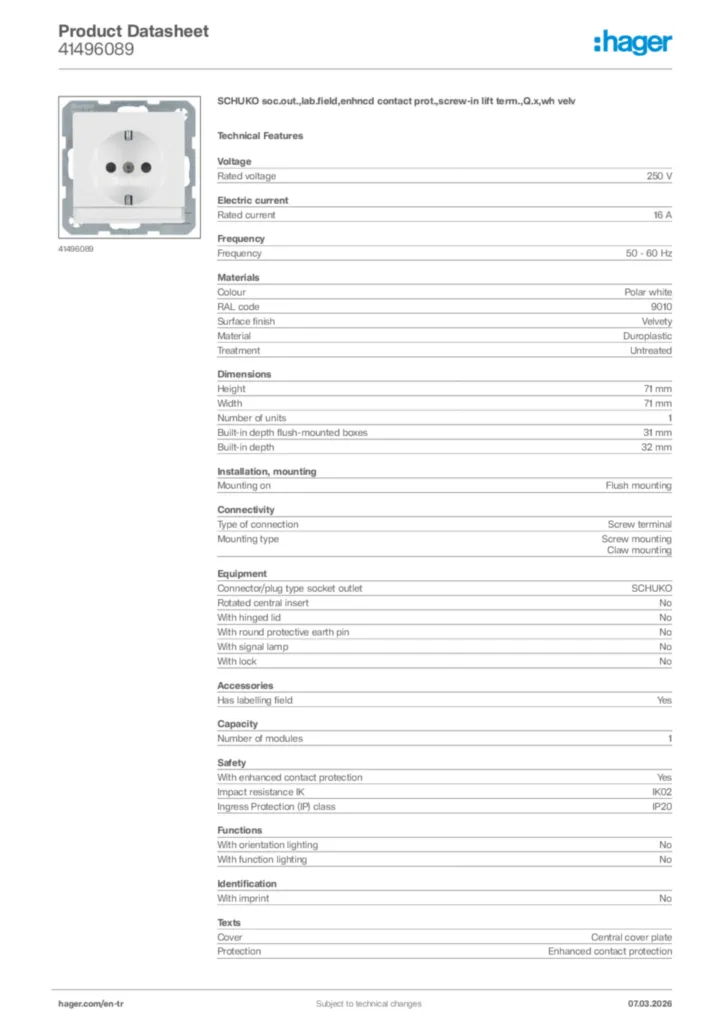

  • Product datasheet

    Image Hager Product data sheet 41496089 | Hager

    Hager Product data sheet 41496089

    SCHUKO soc.out.,lab.field,enhncd contact prot.,screw-in lift term.,Q.x,wh velv

    PDF

  • Declaration of conformity

    Image Declaration of conformity International 2023-05-02 | Hager

    Declaration of conformity International 2023-05-02

    PDF
    451,70 kB
