Push-button, NO contact, TS, chrome glossy, brass galvanised 181110
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See All (5)
Optional accessories
-
Binary input for bus system 1 products available
Compatible products
-
Referenced by 6 products available
Referenced by
-
1391Glass cover plate 1gang TS polar white glossy
-
1392Glass cover plate 2gang TS polar white glossy
-
1394Glass cover plate 4gang TS polar white glossy
-
1311Glass cover plate 1gang facet , TS, clear glossy
-
1321Glass cover plate 2gang facet , TS, clear glossy
-
TRB302B
Module 2 inputs flush mounted 230V KNX QL
Technical properties
Electric current
-
Momentary contact current1.50 A
Voltage
-
Rated voltage12 V
Architecture
-
Control/operation elementPush button
-
Number of poles1
Materials
-
ColourChrome
-
Surface finishGlossy
-
MaterialBrass
-
TreatmentChrome plated, Galvanised
-
TransparentNo
Dimensions
-
Height22 mm
-
Width22 mm
-
Depth19.70 mm
-
Built-in depth13 mm
-
Built-in depth flush-mounted boxes0
Controls and indicators
-
Number of buttons1
-
With feedback signal contactNo
Safety
-
Ingress Protection (IP) classIP20
-
Impact resistance IKIK07
Accessories
-
Has labelling fieldNo
-
Related SystemsTS
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

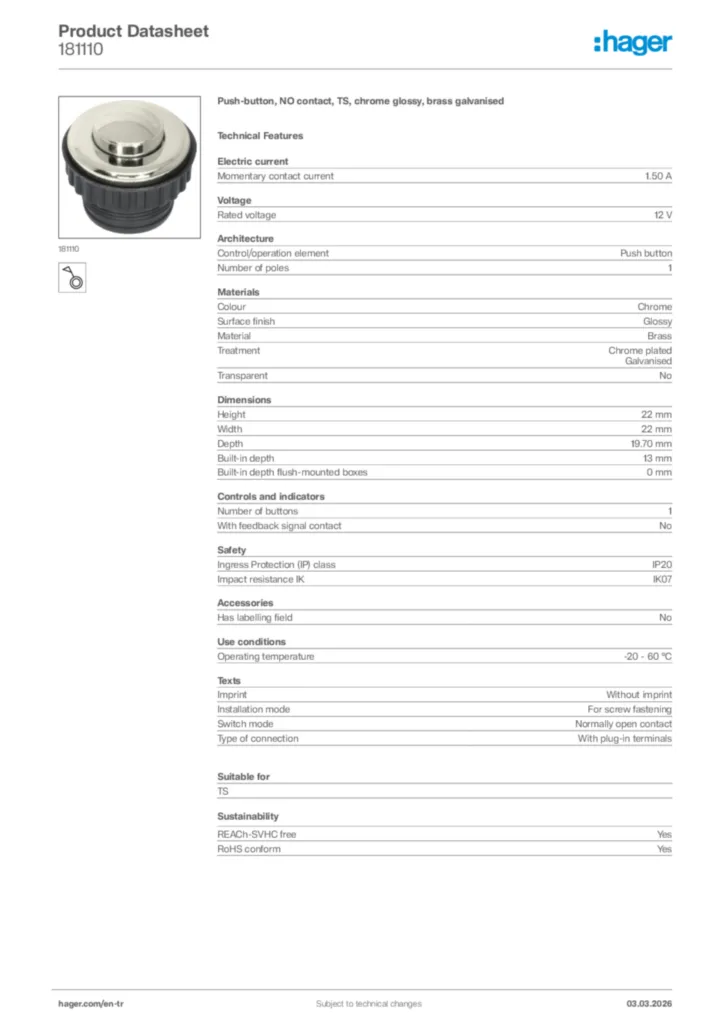

Product datasheet
Hager Product data sheet 181110
Push-button, NO contact, TS, chrome glossy, brass galvanised
PDF -
Installation manual
Manual for 1811xx - Push-button, NO contact (DE-EN, 2005-06)
Installation manual en-GB, de-DE 2020-10-28
PDF636,23 kB -
Declaration of conformity
Declaration of conformity International 2021-09-03
Declaration of conformity International 2021-09-28
PDF108,59 kB
