Surface-mtd housing 3gang hor., K.5, al., matt, lacq. 10537003
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Socket outlet 1 products available
Compatible products
-
Referenced by 4 products available
Technical properties
Capacity
-
Number of modules3
Materials
-
ColourAluminium
-
RAL code9006
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated, Varnished
Dimensions
-
Height82 mm
-
Width230.50 mm
-
Depth41.50 mm
-
Built-in depth36 mm
Equipment
-
With cable entryYes
Installation, mounting
-
Mounting onSurface mounting
Accessories
-
With frame coverNo
Safety
-
Ingress Protection (IP) classIP20
-
Related SystemsK.x
-
Related SeriesK.5
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

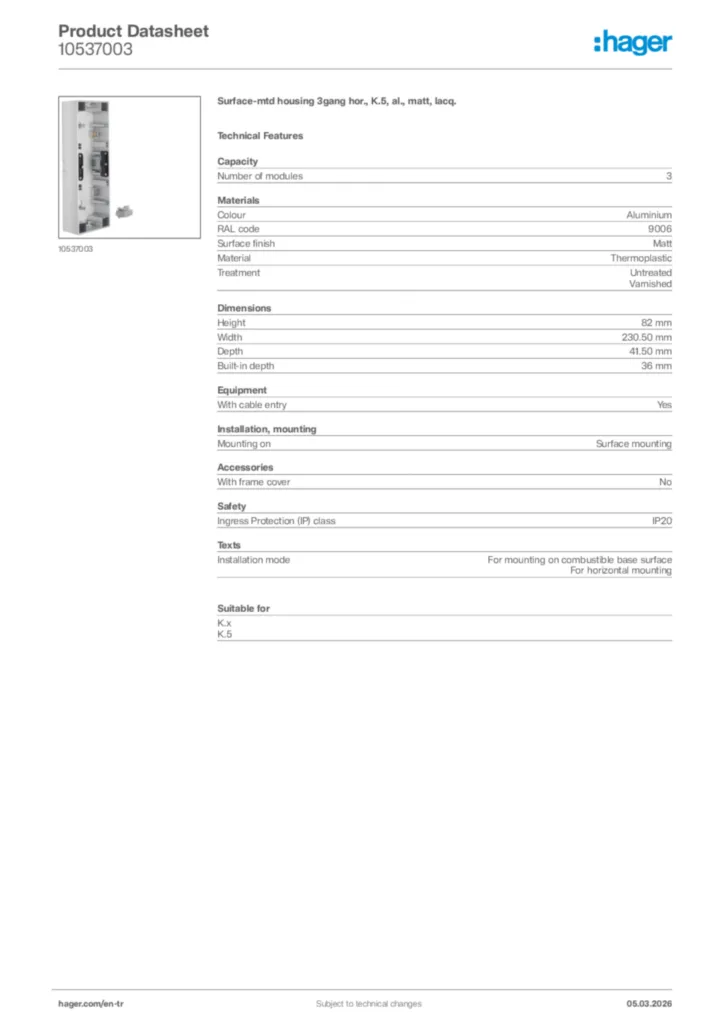

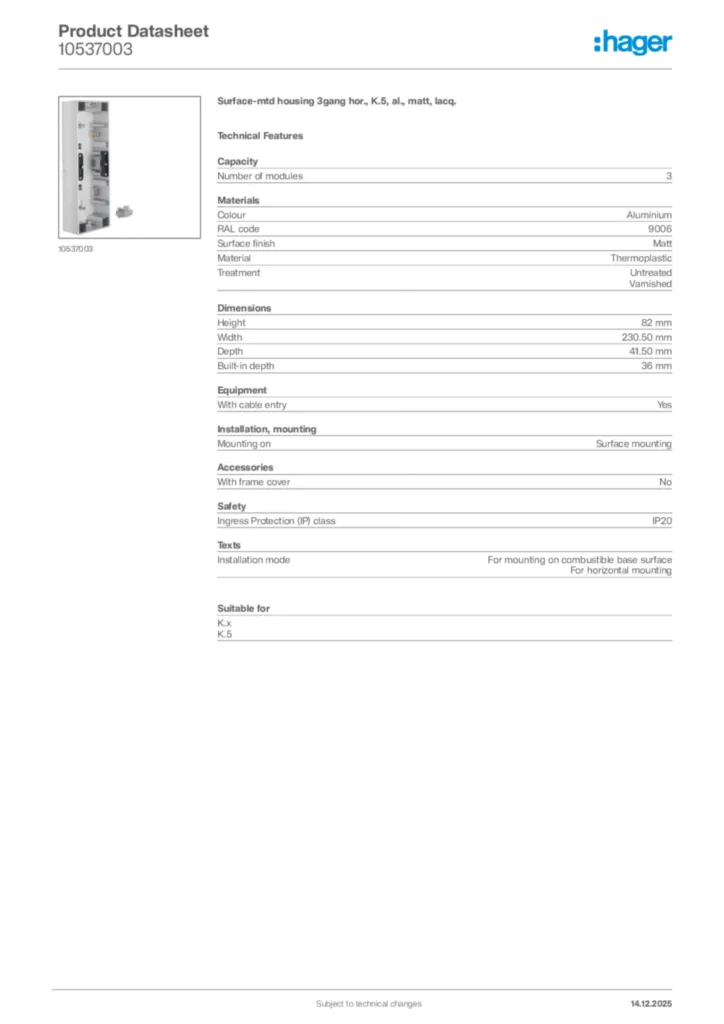

Product datasheet
Hager Product data sheet 10537003
Surface-mtd housing 3gang hor., K.5, al., matt, lacq.
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2021-10-04
PDF179,12 kB
