Hager The Hager Premiere 1G IP66 vertical switch delivers reliable control in harsh or outdoor areas. Rated 16A, 50Hz, it suits residential and commercial circuits. The IP66 sealed, glossy white polycarbonate cover resists water and dust. Flush-mounted with screw fastening and screw terminals for secure installation. 2-way operation with loop terminal allows flexible switching. Non-illuminated, 25 mm built-in depth.
EAN
3250617000918
Packaging
1 Piece
Premiere IP66 1-gang 2-way vertical switch 16A flush mount screw terminals WBWSV1
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current16 A
Installation, mounting
-
Mounting onFlush mounting
Frequency
-
Frequency50 - 50 Hz
Materials
-
ColourWhite
-
Surface finishGlossy
-
MaterialPolycarbonate (PC)
Identification
-
Assembly arrangementBasic element with full cover plate
Connectivity
-
Mounting typeScrew mounting
Controls and indicators
-
Number of buttons1
Dimensions
-
Built-in depth25 mm
Texts
-
Installation modeFor screw fastening
-
Type of connectionWith screw terminals
-
LightingWithout lighting (cannot be illuminated)
-
Push buttonNo
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

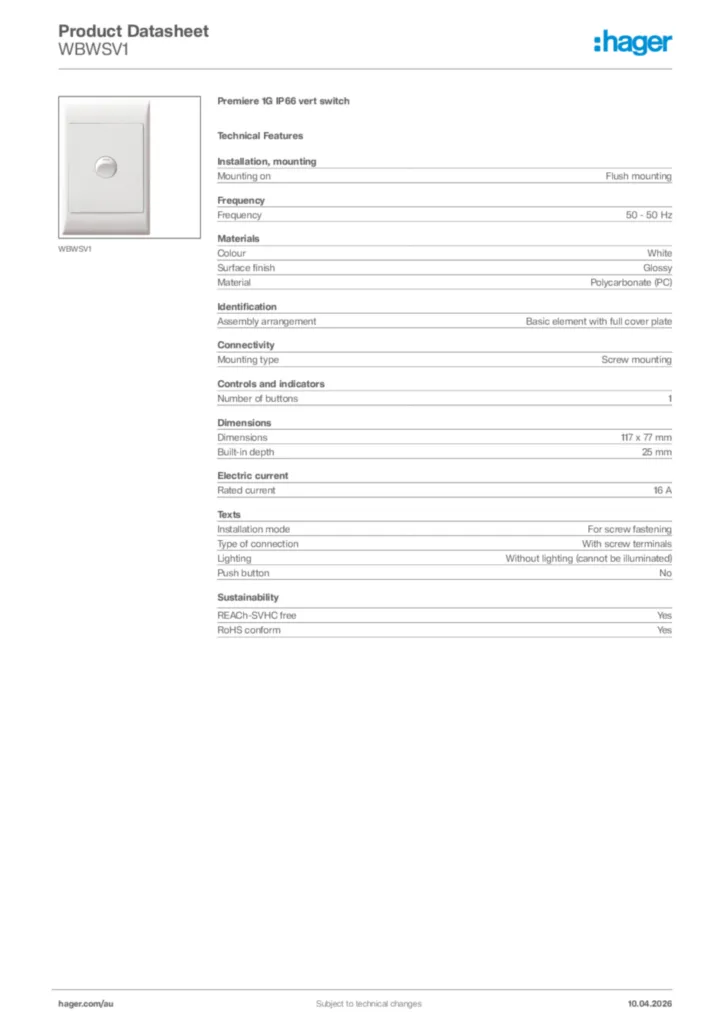

Product datasheet
Hager Product data sheet WBWSV1
Premiere 1G IP66 vert switch
