    Hager 1-pole 63A modular switch, red toggle, for 230V AC circuits reliable isolation/control in residential/commercial switchboards. Compact 1-module (17.5 mm), IP20 protection. Ratings: AC21/AC22 63A, Ui 440V, Uimp 6 kV, Icm 1.33 kA, Icw 0.94 kA. 40,000 ops. Screw terminals: up to 50 mm² rigid/35 mm² flexible, 3.6 Nm, ensuring secure, high-capacity connections. Suitable for DIN-rail mounting; designed for reliable installation and compliant electrical distribution applications in boards.
    EAN
    3250617008976
    Packaging
    5
    • Switches and Plates

    Hager Silhouette 4-gang 2-way Switch 16A Flush White Matt IP20 Screw terminals WBSSV4-MW

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Hager Silhouette 4-gang 2-way Switch 16A Flush White Matt IP20 Screw terminals

    WBSSV4-MW

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Accessor­ies/s­pare parts for domestic switching devices 2 products available

    Complete your system

    • Accessor­ies/s­pare parts for domestic switching devices
    • WBSCV4-AL

      Silhouette 4G switch cover AL
      EUR 0.00  / *
    • WBSCV4-SS

      Silhouette 4G switch cover SS
      EUR 0.00  / *

    Technical properties

    Elec­tric current
    • Rated current
      16 A
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    Frequency
    • Frequency
      50 - 50 Hz
    Mater­ials
    • Colour
      White
    • Surface finish
      Matt
    • Material
      Polycar­bonate (PC)
    • Treat­ment
      Varnished
    Iden­ti­fic­a­tion
    • Assembly arrange­ment
      Basic element with full cover plate
    Connectivity
    • Mounting type
      Screw mounting
    Controls and indic­ators
    • Number of buttons
      4
    Dimen­sions
    • Built-in depth
      23 mm
    Texts
    • Install­a­tion mode
      For screw fastening
    • Type of connec­tion
      With screw terminals
    • Lighting
      Without lighting (cannot be illu­min­ated)
    • Push button
      No

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes
    Halogen free Yes

    Certifications and documents

    PEP - 2 way switch gallery InterBP with neutral 2 modules (English)
    PDF
    28,95 MB
    Hager RoHS report WBSSV4-MW
    PDF

    Downloads

    • Product image

      Image WBSSV4-MW | Hager Australia

      Product Image WBSSV4-MW

    • Product datasheet

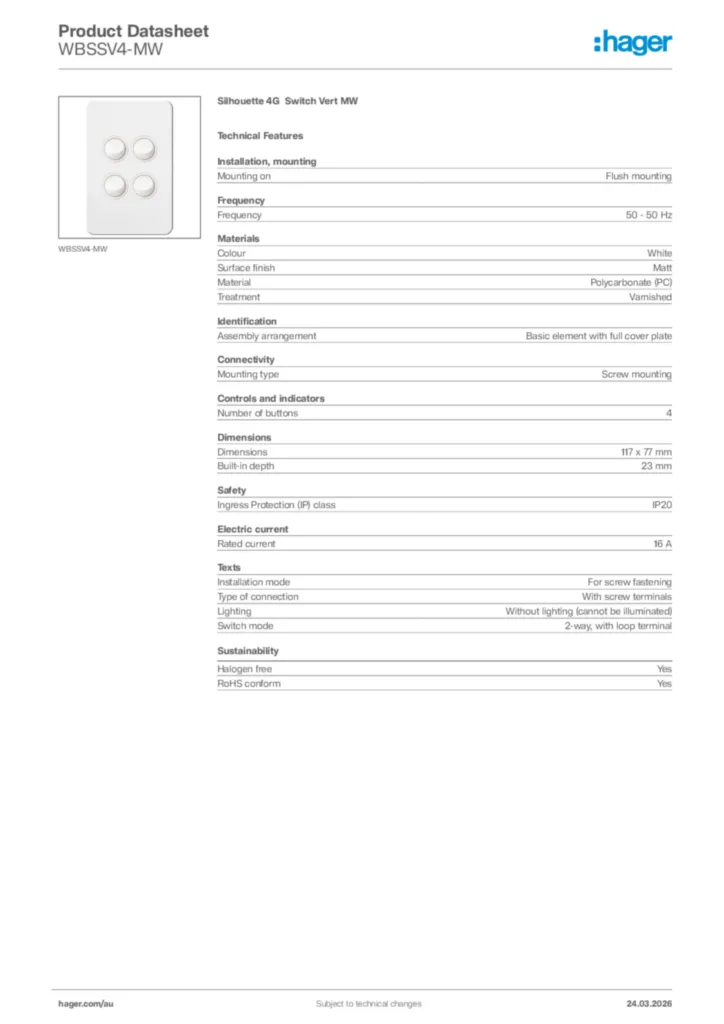

      Image Hager Product data sheet WBSSV4-MW | Hager Australia

      Hager Product data sheet WBSSV4-MW

      Silhouette 4G Switch Vert MW

      PDF
    More documentation
