EAN

3250617005746

Packaging

10

Sockets

Allure 10A Vertical Double Socket Gloss White WBHP2VS

Accessories
Technical properties
Environmental value
Documentations
More products

Download the data sheet

Complete your system

Suitable with 2 products available

Technical properties

Rated voltage

240 V
Output voltage

230 - 250 V

Rated current

10 A

Power consumption standby

0

Colour

White
RAL code

9010
Surface finish

Glossy
Material

Polycarbonate (PC)
Contains recycled material (% of total plastic weight)

0

Height

120 mm
Width

82 mm
Depth

9,5 mm
Built-in depth

20 mm

Connector/plug type

Australian standard AS/NZS 3112

Mounting on

Surface mounting
Mounting-/Connection Position

Back

Type of connection

Screw terminal
With claw mounting

No
Mounting type

Screw mounting

Connector/plug type socket outlet

Australian standard AS/NZS 3112
Rotated central insert

No
With hinged lid

No
With round protective earth pin

No
With signal lamp

No
With lock

No

Has labelling field

No
Pre-equipped with

None

Type of lid

Without lid

Number of modules

0

With enhanced contact protection

Yes
Impact resistance IK

IK07
Ingress Protection (IP) class

IP2X

With orientation lighting

No
With function lighting

No

With imprint

No

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes

Certifications and documents

Hager REACH declaration WBHP2VS

PDF

Hager RoHS report WBHP2VS

PDF

Downloads

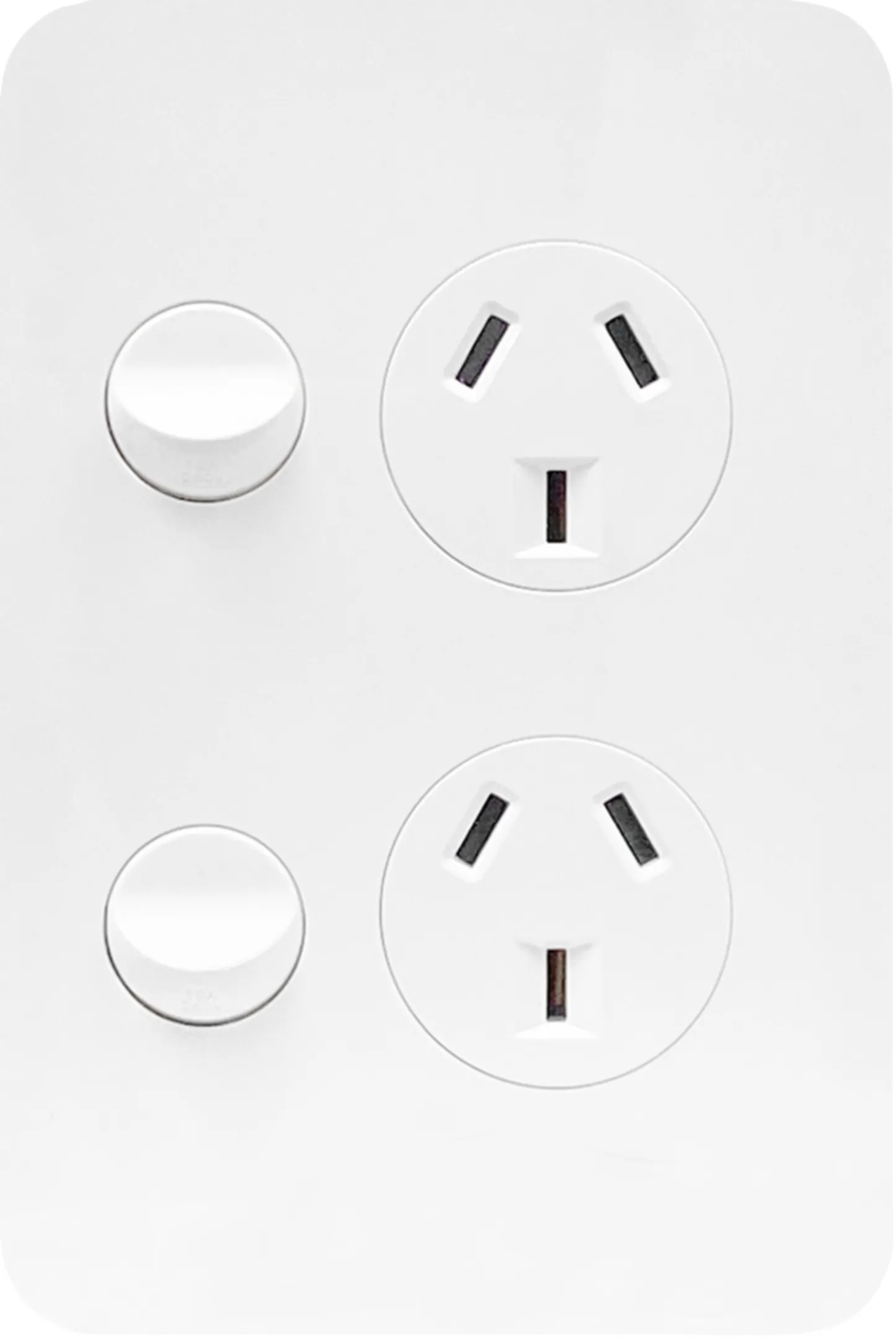

Product image

Product Image WBHP2VS
Product datasheet

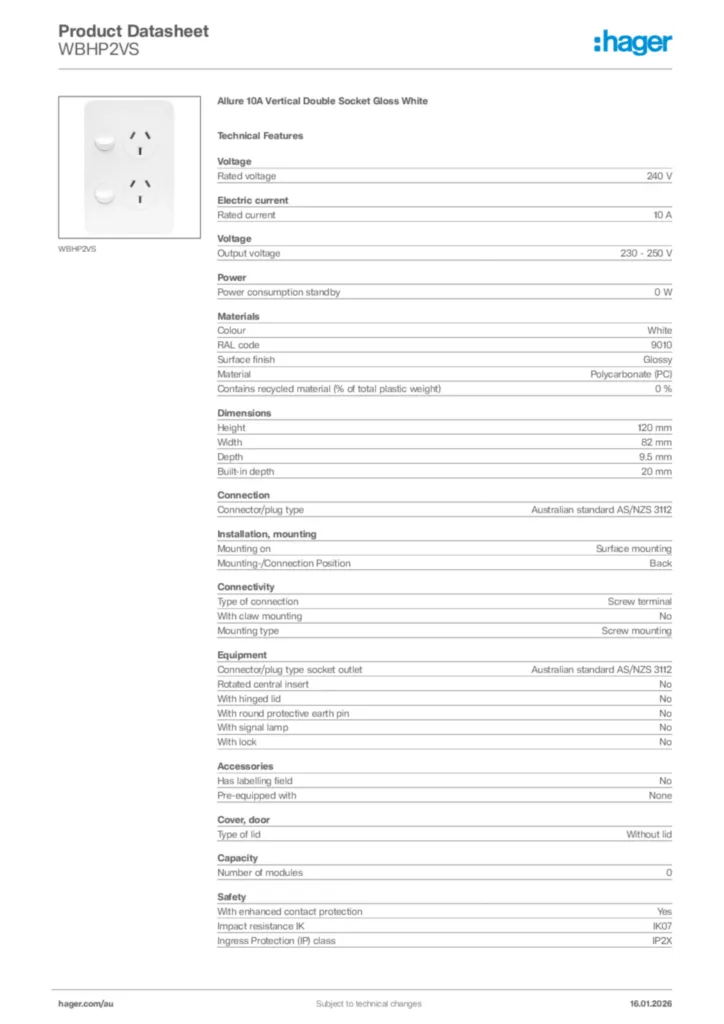

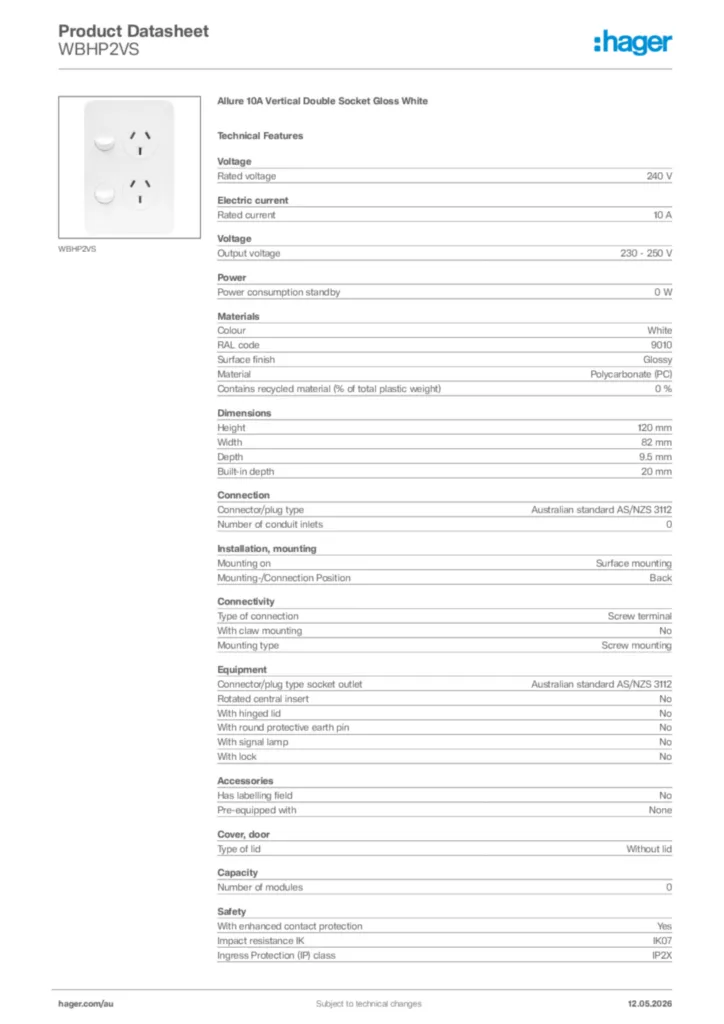

Hager Product data sheet WBHP2VS

Allure 10A Vertical Double Socket Gloss White

PDF

More documentation
