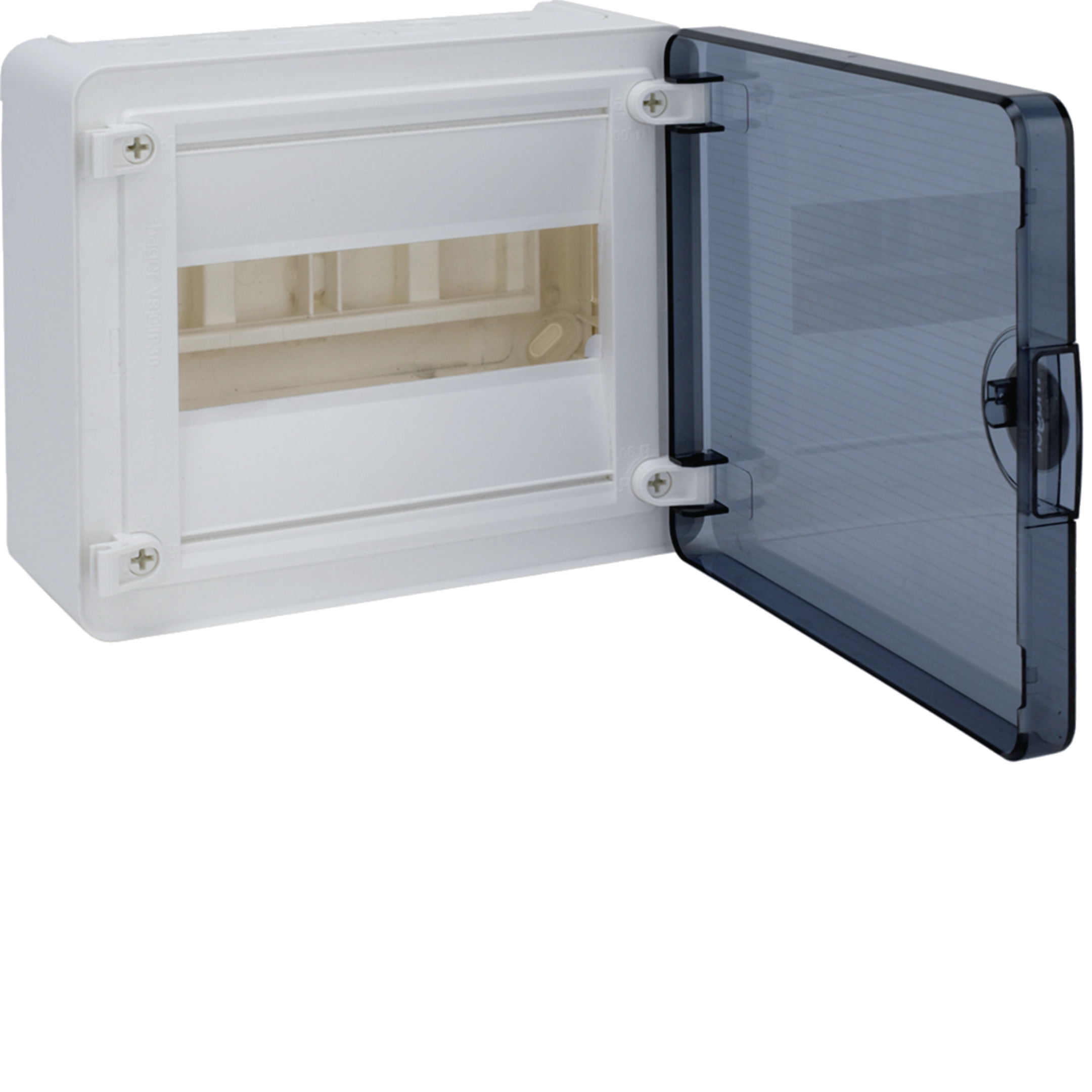

Hager Golf small surface-mounted 1-row distributor (IP40) for indoor use, ideal for residential/light commercial ANZ installations. Rated 80 A, 400 V, it holds 8 modules on 1 rail. Includes N and PE terminal blocks and MS terminals with conduit inlets for fast, tidy wiring. Transparent door enables easy inspection. Class II insulation, IK07 impact resistance, pure white RAL9010 plastic.
EAN
3250616594418
Packaging
1 Piece
Small distributor Golf Surface 1 Row IP40 8M Transparent Door N+PE VS108TT
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Cover/infill panel/identification strip 1 products available -
Door/operating panel 1 products available -
Cover strip 1 products available -
Coax connector 1 products available -
Quick-release fastener for housing covers 1 products available
Complete your system
Technical properties
Voltage
-
Nominal voltage400 - 400 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current80 A
Equipment
-
Number of rails1
-
Number of rows1
-
Number of section in width1
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules8
Functions
-
With conduit inletsYes
Dimensions
-
Height184 mm
-
Width210 mm
-
Depth99 mm
-
Number of width units8
Cover, door
-
Number of cabinet doors1
-
Number of locks0
-
Door/cover is transparentYes
-
Cabinet door typeSingle door
Materials
-
MaterialPlastic
-
RAL code9010
-
ColourPure white
-
Ultraviolet-resistantNo
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK07
-
Locking typeSnap on lock, Without lock
-
Glow wire test650 °C
-
Protection class with doorIP40
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

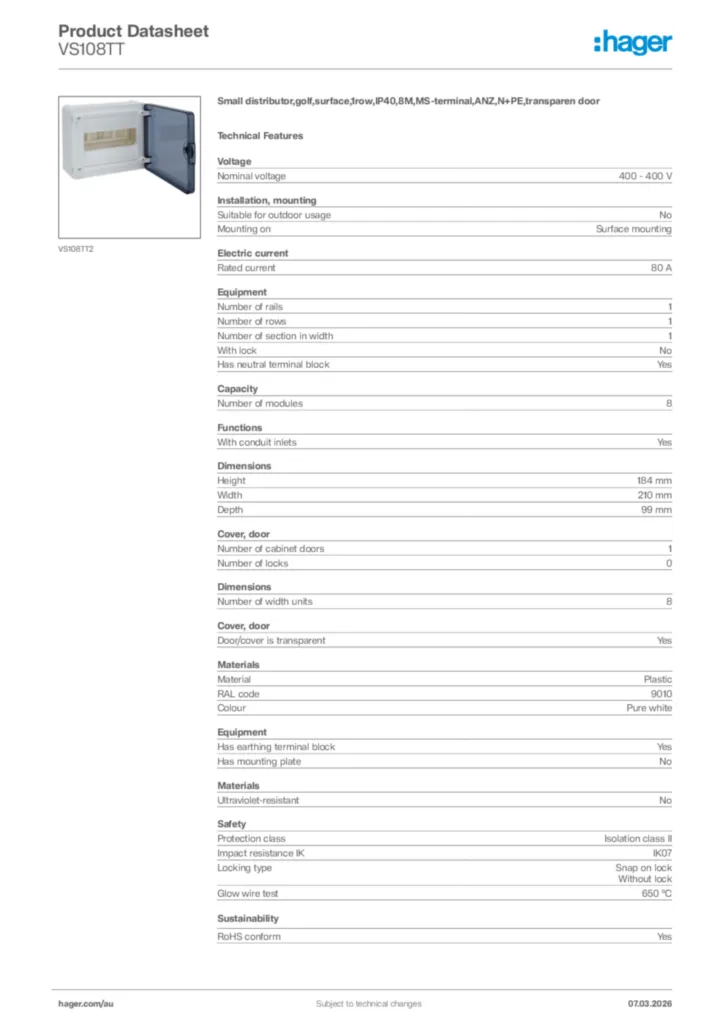

Product datasheet
Hager Product data sheet VS108TT
Small distributor,golf,surface,1row,IP40,8M,MS-terminal,ANZ,N+PE,transparen door
PDF -
Installation manual
Installation manual en-GB 2021-05-17
PDF5,13 MB
