Hager The Hager BG814 bar/cable-through current transformer 1250/5 A, 15 VA, Class 1 delivers accurate metering and protection relay inputs in LV panels. Plug-in design with 60 mm window fits bars or cables; screw terminals ease wiring. DIN-rail or plate mounting. Ui 3 kV, 50-60 Hz, IP10, -40…40 °C. Handles 1250 A primary, 5 A secondary for precise energy monitoring while saving panel space.
EAN
4049857139415
Packaging
1 Piece
Bar/Cable-through Plug-in Current Transformer BG814 1250/5A 15VA Class 1 Ø60mm SRE12505
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Specific identificaton attributes for Protection
-
Filter Type productPlug-in current transformer
Functions
-
Accuracy class1
Power
-
Power15 VA
-
Total power loss under IN11 W
Dimensions
-
Diameter of opening60 mm
-
Height122 mm
-
Width100 mm
-
Depth40 mm
-
Height of opening60 mm
-
Width of opening81 mm
Connectivity
-
Type of connectionScrew terminal
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated power-frequency withstand voltage (r.m.s.)3000 V
-
Max. operating voltage720 V
Use conditions
-
Operating temperature-40 - 40 °C
-
Storage/transport temperature-40 - 40 °C
Connection
-
Cross-section flexible conductor1.5 - 6 mm²
-
Cross-section rigid conductor1.5 - 6 mm²
Safety
-
Ingress Protection (IP) classIP10
-
Insulating classE
Electric current
-
Rated primary current (Ipr)1250 A
-
Rated secondary current (Isr)5 A
-
Rated current1250 A
-
Rated continuous thermal current1,2*Ipr
-
Rated short-time thermal current (Ith/1s)60*Ipr
-
Rated dynamic current2.5*Ith
-
Over voltage limiting factorFS 5
Installation, mounting
-
Mounting onDIN rail, Mounting plate
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet
Hager Product data sheet SRE12505

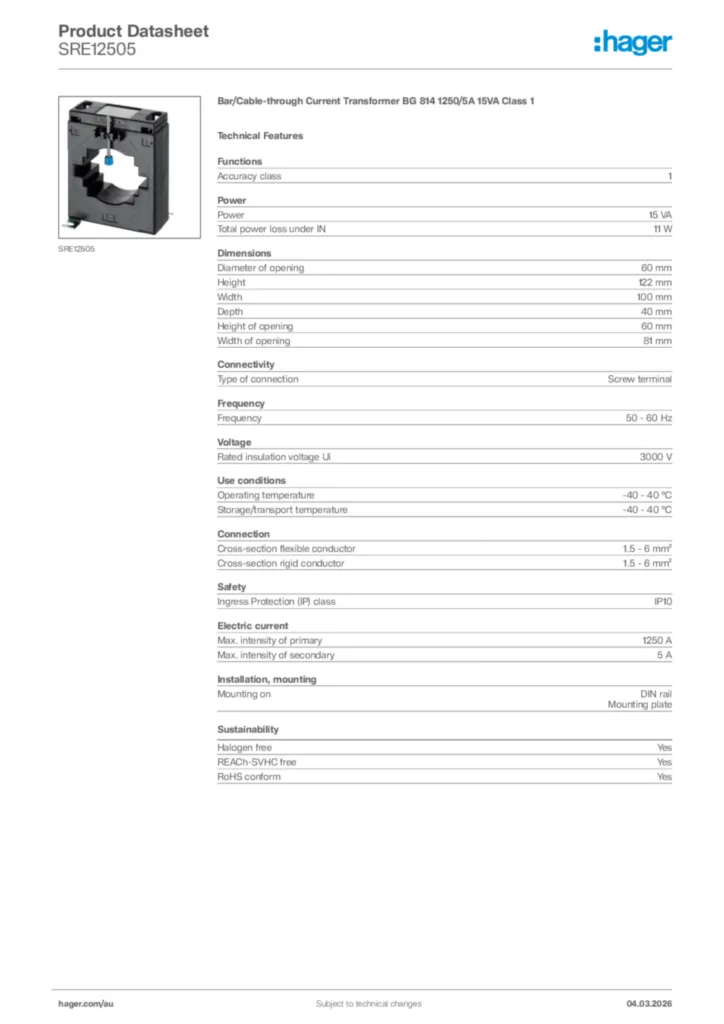

Bar/Cable-through Current Transformer BG 814 1250/5A 15VA Class 1
