Surge Protection Device 1P T2 TNC Uc 320V In 20kA Imax 65kA remote contact SPB165R
EAN
3250615515414
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Surge protection device for power supply systems 1 products available
Technical properties
Capacity
-
Number of modules1
Voltage
-
Rated operational voltage Ue240 - 240 V
-
Continuous operating voltage Uc according to IEC 61643-1320 V
-
Voltage protection level Up according to IEC 61643-11,45 kV
-
Voltage protection level Up L-PE/N-PE according to IEC 61643-111,70 kV
-
Voltage level Up L-N/PEN IEC 61643-111450 V
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 6164320 kA
-
Max. overcurrent protection device, parallel connection (fuse)160 A
-
Max. discharge (Imax) L-N(PEN)/ N-PE65 kA
Dimensions
-
Height96,8 mm
-
Width17,6 mm
-
Depth77,5 mm
Use conditions
-
Operating temperature-40 - 80 °C
Network configuration
-
Network typeTN-C, TN-S, TT
Equipment
-
With remote signalling contactYes
Connection
-
Cross-section of input and output with screws, for flexible conductors1,5 - 25,0 mm²
-
Cross-section of input and output with screws, for massive conductors1,5 - 35,0 mm²
-
Cross-section signal contact0,14 - 1,5 mm²
Standards
-
Requirement class IEC 61643T2
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque3 - 3 Nm
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

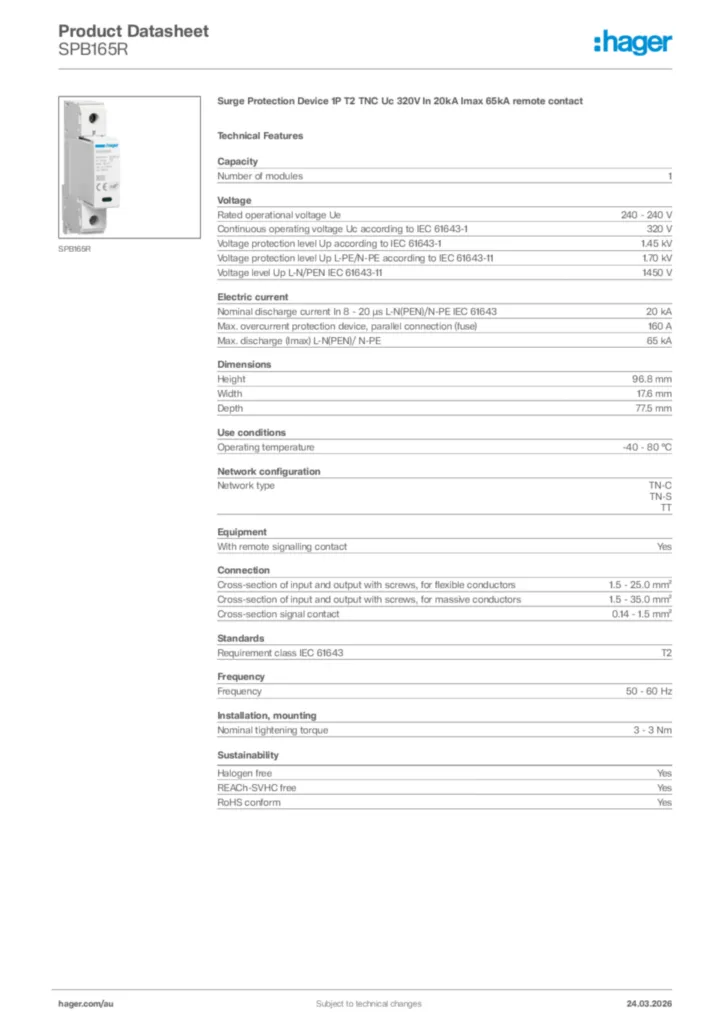

Hager Product data sheet SPB165R
