SPB008D - Cartridge L-N Uc 275 In 2kA Imax 8kA Up 1kV
SPB008D - Cartridge L-N Uc 275 In 2kA Imax 8kA Up 1kV

Cartridge L-N Uc 275 In 2kA Imax 8kA Up 1kV

SPB008D

SPB008D - Cartridge L-N Uc 275 In 2kA Imax 8kA Up 1kV
SPB008D - Cartridge L-N Uc 275 In 2kA Imax 8kA Up 1kV
  • DIN rail-­mounted devices

Cartridge L-N Uc 275 In 2kA Imax 8kA Up 1kV SPB008D

EAN
3250615515308
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Technical properties
  • Environmental value
  • Documentations
  • More products

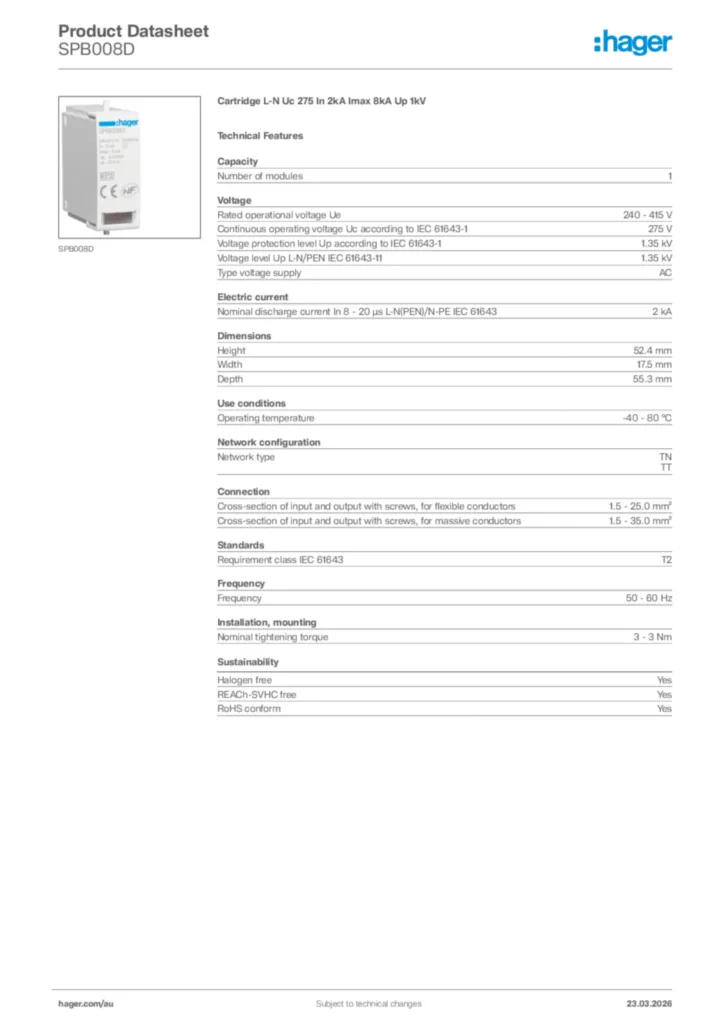

Download the data sheet

Technical properties

Capa­city
  • Number of modules
    1
Voltage
  • Rated oper­a­tional voltage Ue
    240 - 415 V
  • Continuous oper­ating voltage Uc according to IEC 61643-1
    275 V
  • Voltage protec­tion level Up according to IEC 61643-1
    1,35 kV
  • Voltage level Up L-N/PEN IEC 61643-11
    1,35 kV
Elec­tric current
  • Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 61643
    2 kA
Dimen­sions
  • Height
    52,4 mm
  • Width
    17,5 mm
  • Depth
    55,3 mm
Use condi­tions
  • Oper­ating temper­ature
    -40 - 80 °C
Network config­ur­a­tion
  • Network type
    TN, TT
Connec­tion
  • Cross-sec­tion of input and output with screws, for flex­ible conductors
    1,5 - 25,0 mm²
  • Cross-sec­tion of input and output with screws, for massive conductors
    1,5 - 35,0 mm²
Stand­ards
  • Require­ment class IEC 61643
    T2
Frequency
  • Frequency
    50 - 60 Hz
Install­a­tion, mounting
  • Nominal tight­ening torque
    3 - 3 Nm

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes
REACH conform Yes
Halogen free Yes

Certifications and documents

REACH declaration SPB008D (english)
PDF
103,10 kB
RoHS declaration SPB008D (english)
PDF
103,59 kB

Downloads

  • Product image

    Image SPB008D  | Hager Australia

    Product Image SPB008D

  • Brochure

    Image Surge Brochure for Australia  | Hager Australia

    Surge Brochure for Australia

    Keeping people and property safe. Learn more about our NEW range of surge devices.

    PDF
    934,14 kB
  • Declaration of conformity

    Image Declaration of conformity for Lightning rod 8-15-40-65-100kA  | Hager Australia

    Declaration of conformity for Lightning rod 8-15-40-65-100kA

    Declaration of conformity International 2021-08-25

    PDF
    305,83 kB
