SPD T1+T2+T3 4P 12.5kA with remote contact TNS/TT SPA412
EAN
3250615513199
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Incompatible with busbar
Technical properties
Electric current
-
Max. discharge (Imax) L-N(PEN)/ N-PE75 kA
-
Leakage-current freeYes
-
Max. overcurrent protection device, parallel connection (fuse)160 A
-
Lightning impulse current Iimp (10/350 µs) IEC 61643 L-N(PEN)/ N-PE12.5 kA, 50 kA
Network configuration
-
Network typeTN-S, TT, TN-C-S
Connectivity
-
Type of connectionScrew terminal
Equipment
-
With remote signalling contactYes
Capacity
-
Number of modules4
Voltage
-
Voltage protection level Up according to IEC 61643-11,50 kV
-
Continuous operating voltage Uc according to IEC 61643-1264 V
-
Rated operational voltage Ue240 - 415 V
-
Voltage level Up L-N/PEN IEC 61643-111,5 kV
Architecture
-
Number of poles4
Use conditions
-
Operating temperature-40 - 80 °C
Dimensions
-
Height99,7 mm
-
Width72 mm
-
Depth76,6 mm
Controls and indicators
-
With indicator lampYes
Standards
-
Requirement class IEC 61643T1, T2, T3
Installation, mounting
-
Nominal tightening torque3 - 4,5 Nm
Connection
-
Cross-section of input and output with screws, for flexible conductors2,5 - 25,0 mm²
-
Cross-section of input and output with screws, for massive conductors2,5 - 35,0 mm²
-
Cross-section signal contact0,2 - 25,0 mm²
Frequency
-
Frequency50 - 60 Hz
Safety
-
Ingress Protection (IP) classIP20
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

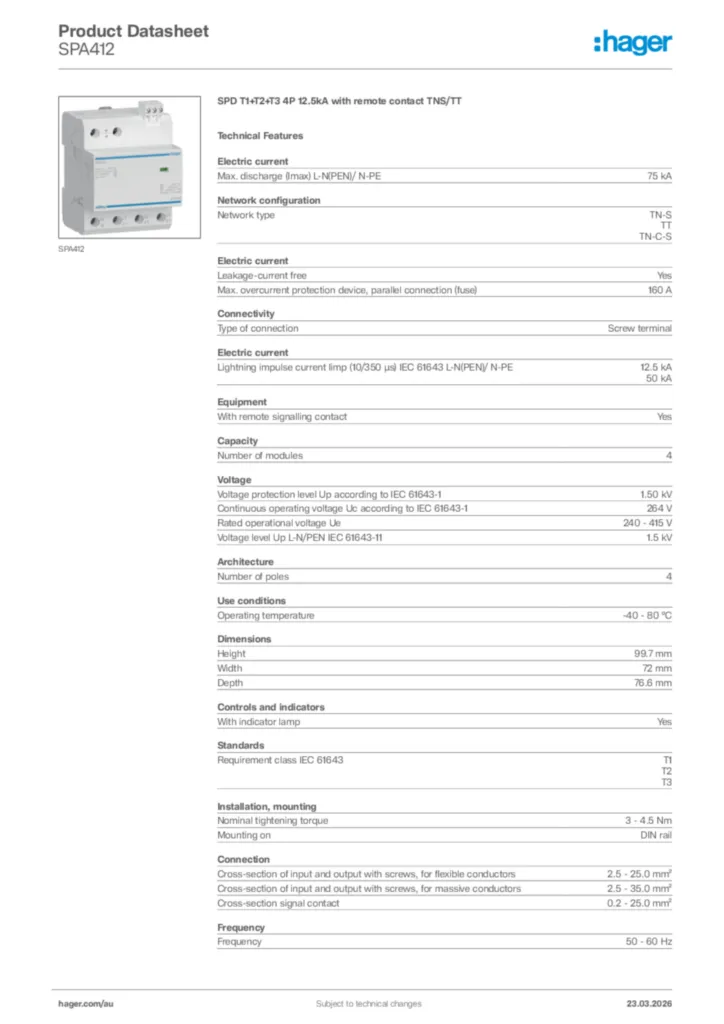

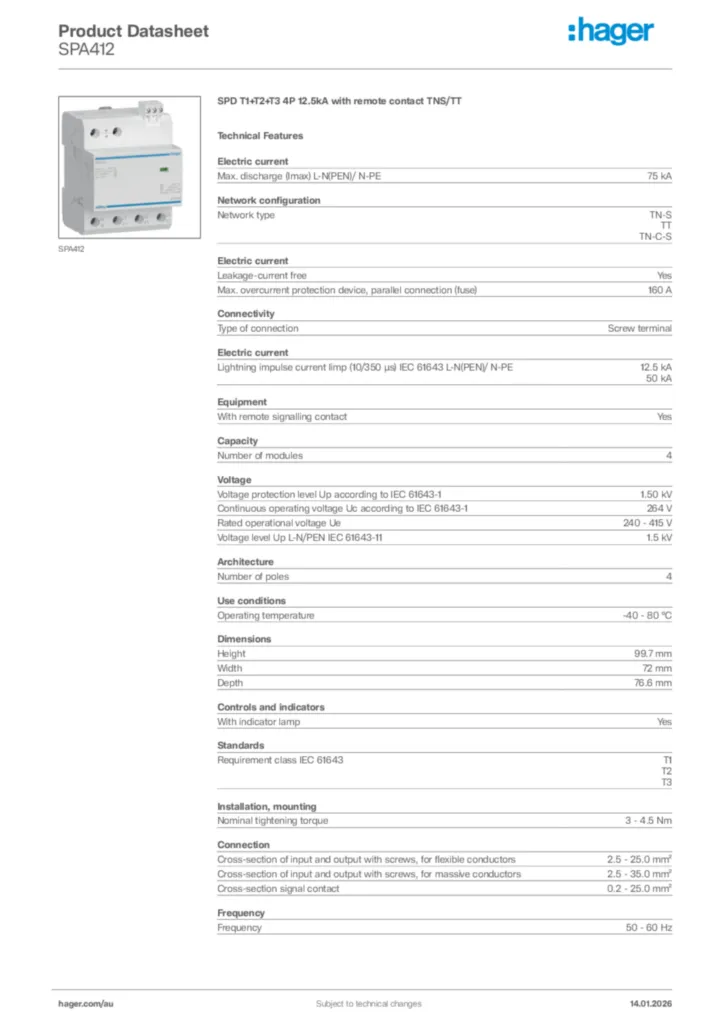

Hager Product data sheet SPA412
