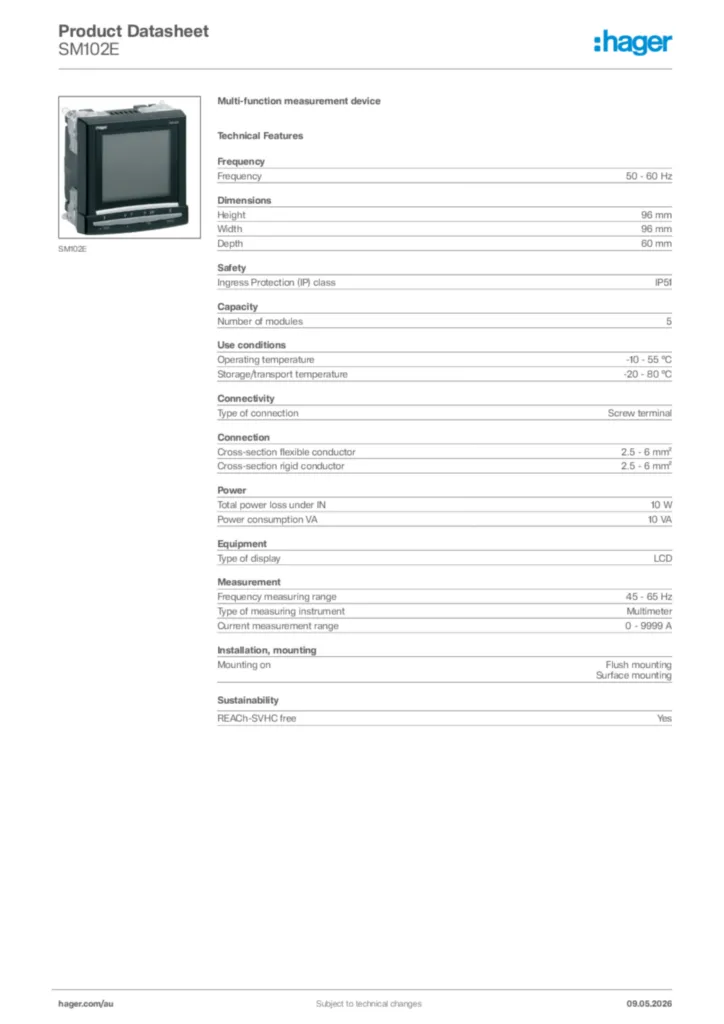

Multi-function measurement device SM102E
EAN
3250615639998
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Configuration
-
Number of modules5
Controls and indicators
-
Measurement scale5 A
Voltage
-
Rated insulation voltage4 kV
Dimensions
-
Depth of installed product60 mm
-
Height of installed product96 mm
-
Length80 mm
-
Width of installed product96 mm
Power
-
Power consumed10 VA
-
Total power loss under IN10 W
Measurement
-
Frequency measuring range45 to 65 Hz
-
Voltage measurement range50 to 500 V
-
Type of measuring instrumentmultimeter
Installation, mounting
-
Mounting typeflush mounted / surface mounted
Connection
-
Connection cross-sect. flexible conductor2,5 / 6mm²
-
Connection cross-sect. rigid cable2,5 / 6mm²
Equipment
-
Type of displayLCD
-
Digits number4
Use conditions
-
Operating temperature-10…55 °C
-
Storage/transport temperature-20…80 °C
