Multi-function measurement device Evolution

SM103E

  • DIN rail-­mounted devices

Multi-function measurement device Evolution SM103E

EAN
3250615639981
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

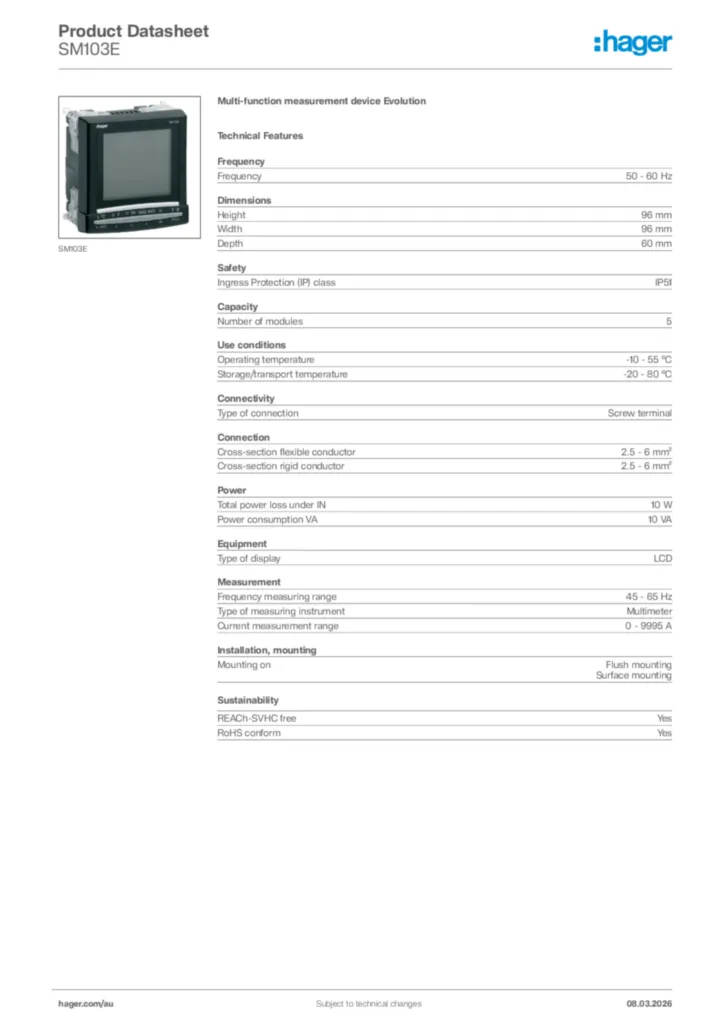

Download the data sheet

Complete your system

Optional accessories

  • Accessor­ies/s­pare parts for meas­uring instru­ments 4 products available

Complete your system

  • Accessor­ies/s­pare parts for meas­uring instru­ments
  • SM204

    Memory Unit for SM103E

    EUR 0.00  / *
    Add to a list
    Add to a list
  • SM211

    Unit RS485 Jbus/Modbus for SM103E

    EUR 0.00  / *
    Add to a list
    Add to a list
  • SM213

    Unit Ethernet Jbus/Modbus for SM103E

    EUR 0.00  / *
    Add to a list
    Add to a list
  • SM214

    Unit Ethernet+RS485 Jbus/Modbus for SM103E

    EUR 0.00  / *
    Add to a list
    Add to a list

Technical properties

Frequency
  • Frequency
    50 - 60 Hz
Dimen­sions
  • Height
    96 mm
  • Width
    96 mm
  • Depth
    60 mm
Safety
  • Ingress Protec­tion (IP) class
    IP51
Capa­city
  • Number of modules
    5
Use condi­tions
  • Oper­ating temper­ature
    -10 - 55 °C
  • Stor­age/trans­port temper­ature
    -20 - 80 °C
Connectivity
  • Type of connec­tion
    Screw terminal
Connec­tion
  • Cross-sec­tion flex­ible conductor
    2.5 - 6 mm²
  • Cross-sec­tion rigid conductor
    2.5 - 6 mm²
Power
  • Total power loss under IN
    10 W
  • Power consump­tion VA
    10 VA
Equip­ment
  • Type of display
    LCD
Meas­ure­ment
  • Frequency meas­uring range
    45 - 65 Hz
  • Type of meas­uring instru­ment
    Multi­meter
  • Current meas­ure­ment range
    0 - 9995 A
Install­a­tion, mounting
  • Mounting on
    Flush mounting, Surface mounting

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes
REACH conform Yes

Certifications and documents

REACH declaration SM103E (english)
PDF
103,10 kB
RoHS declaration SM103E (english)
PDF
103,59 kB

Downloads

  • Product image

    Image SM103E  | Hager Australia

    Product Image SM103E

  • Installation manual

    Image Notice SM103E FR-DE-GB-IT-NL-ES-PT  | Hager Australia

    Notice SM103E FR-DE-GB-IT-NL-ES-PT

    Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pt-PT 2011-09-21

    PDF
    7,56 MB
  • Product attachment

    Image Table de communications SM103E  | Hager Australia

    Table de communications SM103E

    Product attachment International 2024-01-31

    XLS
    450,00 kB
