Communicant Modular multifunction meter SM101C
EAN
3250615631022
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Functions
-
Precision class0.5%
Configuration
-
Number of modules4
Main electrical features
-
Rated operational voltage Ue200 / 230 / 277 V
Dimensions
-
Depth of installed product50 mm
-
Height of installed product45 mm
-
Length67 mm
-
Width of installed product73 mm
Power
-
Power consumed5 VA
-
Total power loss under IN5 W
Measurement
-
Frequency measuring range45 to 65 Hz
-
Voltage measurement range50 to 500 V
-
Type of measuring instrumentmultimeter
Installation, mounting
-
Mounting typedin-Rail
Connection
-
Connection cross-sect. flexible conductor0,5 / 4mm²
-
Connection cross-sect. rigid cable0,5 / 4mm²
Equipment
-
Type of displayDigital
-
Digits number4
Safety
-
REACH conformYes
-
RoHS conformYes
-
Halogen freeYes
Use conditions
-
Operating temperature-10…55 °C
-
Storage/transport temperature-20…70 °C
Downloads
-
Product image
-
Instruction manual
Notice SM101C FR_GB_DE_NL_IT_ES_PT_GR_FI_PL_RU
PDF1 MB -
Product attachment
Table de communications SM101C
XLS311 KB -
User brochure
Energy Meters Brochure
PDF15 MB -
Technical brochures
Energy Meters Specifications and Technical Guide
PDF1 MB -

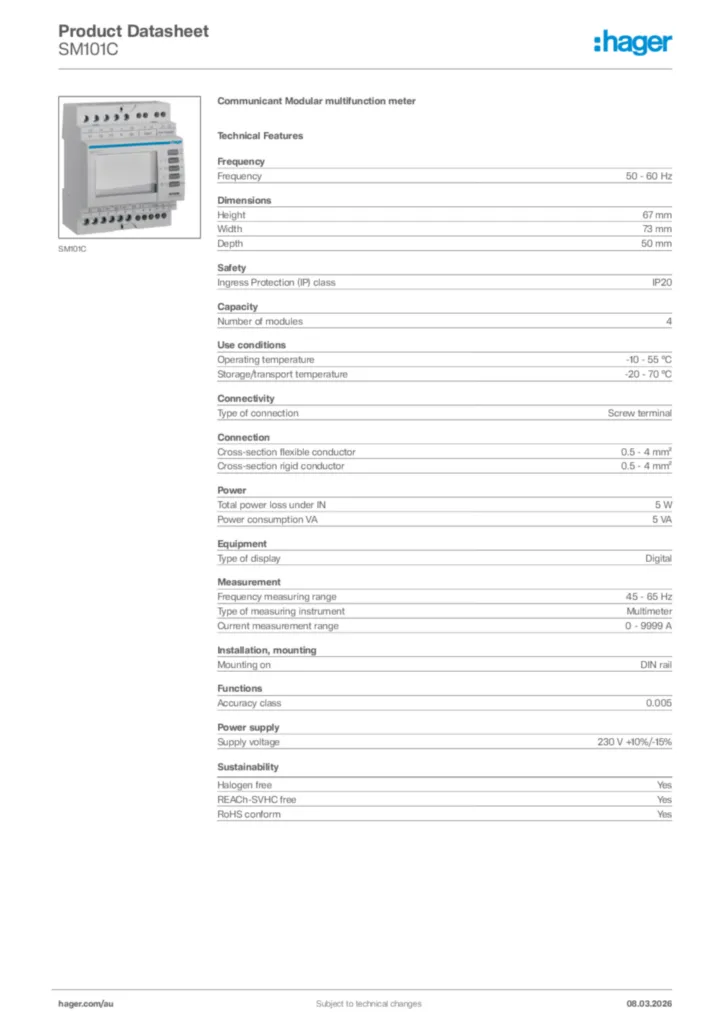

Product data sheet
UK_MD_TDS_MultiMeters
PDF38 KB -
PEP document
Product environmental profile for SM101C
PDF297 KB -
RoHS report
REACH-declaration 2023-10-20 (english)
PDF33 KB
RoHS-declaration 2023-10-20 (english)
PDF32 KB
More documentation
