The Hager 1‑pole 63A Modular Switch with red toggle provides reliable isolation and control for 230V AC circuits in residential and commercial boards. Compact 1‑module (17.5 mm) design with IP20 protection. Rated AC21/AC22 63A, Ui 440V, Uimp 6 kV, Icm 1.33 kA, Icw 0.94 kA. Durable 40,000 ops. Screw terminals accept up to 50 mm² rigid/35 mm² flexible (3.6 Nm), ensuring secure, high‑capacity connections. For installation in residential and commercial switchboards,suitable for DIN rail mounting.

EAN

3250615512260

Packaging

1 Piece

Load Break Switches, Push Buttons and LED Indicator Lights

Hager Modular Switch 1P 63A 230V 50mm² Red Toggle 1 Module SBR164

Accessories
Technical properties
Environmental value
Documentations
More products

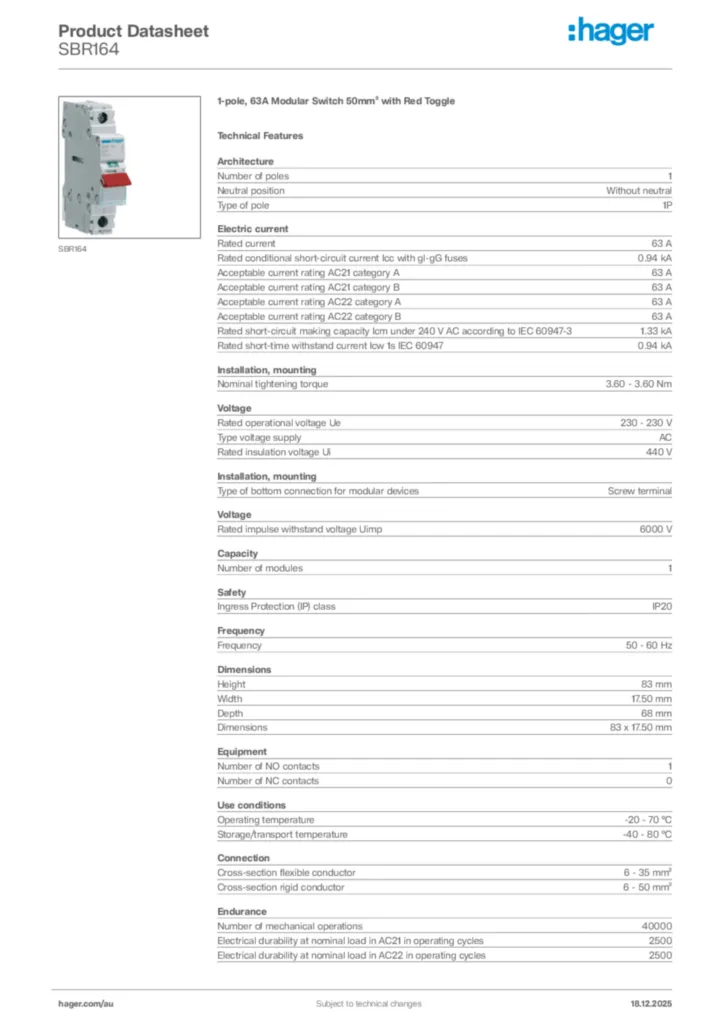

Download the data sheet

Complete your system

Locking interlocking functions 1 products available
Phase separation functions 1 products available
Terminal cover 1 products available
Auxiliary device for distribution board devices 1 products available

Technical properties

Number of poles

1
Type of pole

1P

Rated current

63 A
Rated conditional short-circuit current Icc with gl-gG fuses

0,94 kA
Acceptable current rating AC21 category A

63 A
Acceptable current rating AC21 category B

63 A
Acceptable current rating AC22 category A

63 A
Acceptable current rating AC22 category B

63 A
Rated short-circuit making capacity Icm under 240 V AC according to IEC 60947-3

1,33 kA
Rated short-time withstand current Icw 1s IEC 60947

0,94 kA
