4-pole, 100A Modular Switch with Red Toggle SBR490
EAN
3250615510488
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Type of orderBreak switch
-
Neutral positionwithout neutral
-
Number of poles4 P
Configuration
-
Number of modules4
Main electrical features
-
Rated operational voltage Ue400 V
Voltage
-
Rated insulation voltage440 V
-
Type of voltage input 1AC
-
Rated impulse withstand voltage6000 V
Electric current
-
Rated operational current in AC21category B100 A
-
Acceptable current rating with AC22 category A100 A
-
Rated current100 A
-
Rated short-time withstand current 1s1.2 kA
-
Thermal rated current outside of housings100 A
-
Rated operational current in AC21 category A100 A
-
Acceptable current rating with AC22 category B100 A
Dimensions
-
Depth of installed product69 mm
-
Height of installed product83 mm
-
Width of installed product70 mm
Frequency
-
Frequency50 to 60 Hz
Power
-
Total power loss under IN22 W
-
Power loss per pole at In5.5 W
Endurance
-
Electrical durability at nominal load in AC21in operating cycles2500
-
Electrical durability at nominal load in AC22 in operating cycles2500
-
Number of mechanical operations40000
Installation, mounting
-
Tightening torque3,6Nm
Connection
-
Connection cross-sect. flexible conductor6 / 35mm²
-
Connection cross-sect. rigid cable6 / 50mm²
-
Cage clamp positionin line
Equipment
-
Quantity of NC contacts0
-
Quantity of NO contacts4
-
Quantity of INV contacts0
Standards
-
Standard textIEC 60947-3
-
European directive WEEEnot concerned
Safety
-
RoHS conformYes
-
Halogen freeNo
Use conditions
-
Operating temperature-20…50 °C
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Altitude2000 m
-
Storage/transport temperature-40…80 °C
Downloads
-
Product image
-

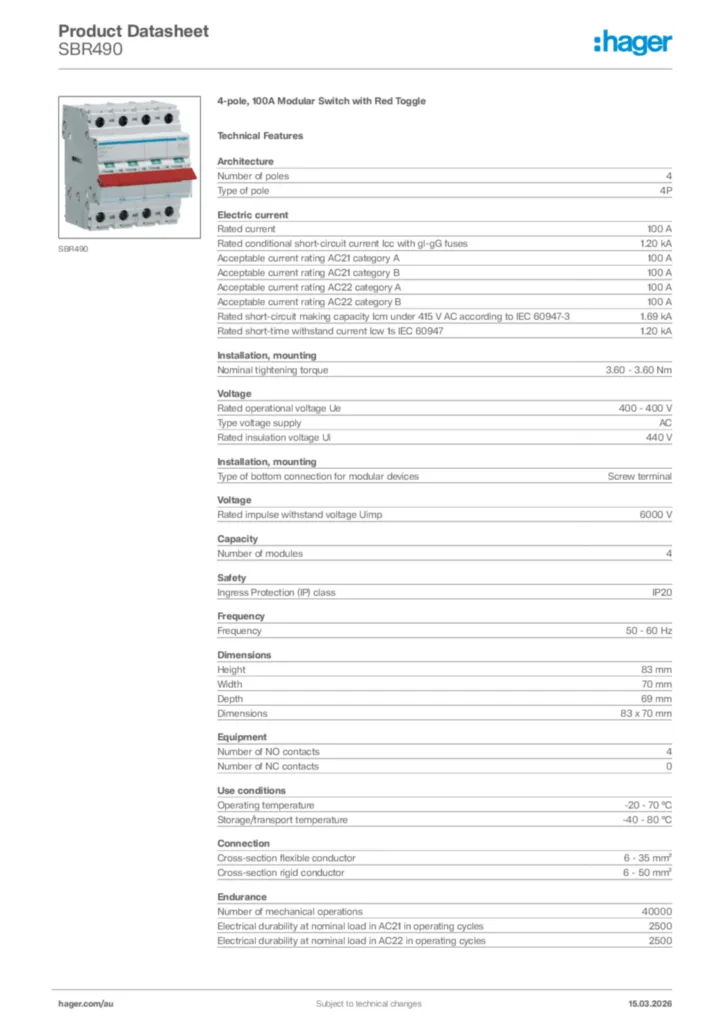

Product data sheet
