ELITE 18/24/24/12P Splt-200A MCCB-DIN-SS JPE4W78M20DS
No longer available
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for low-voltage switch technology 16 products available -
Document holder 1 products available -
Insert for lock system 1 products available
Complete your system
-
JVC0PFL
-
FL72Z
Cylinder insert for key lock, Orion.Plus
-
FL78Z1AU
Elite, Swing handel lock with padlock option + Insert key
-
JP012Pole filler, Consumer Unit, Single pole for Din rail ways
-
JPA0D250 -
JPA0D25KMain direct incomer link kit
-
JPA0EXTMPMounting Plate, APEX/ELITE, for extension box
-
JPA0M160 -
JPA0M16Kmain incomer 160A MCCB (X250) link kit
-
JPA0M200 -
JPA0M20Kmain incomer 200A MCCB (X250) link kit
-
JPA0S160 -
JPA0S16KPerforma 2 primary incoming link Kit
-
JPA0S250 -
JPA0S25Kmain incomer 250A switch link kit
-
JPA0S40K400A main switch kit (HA357 )

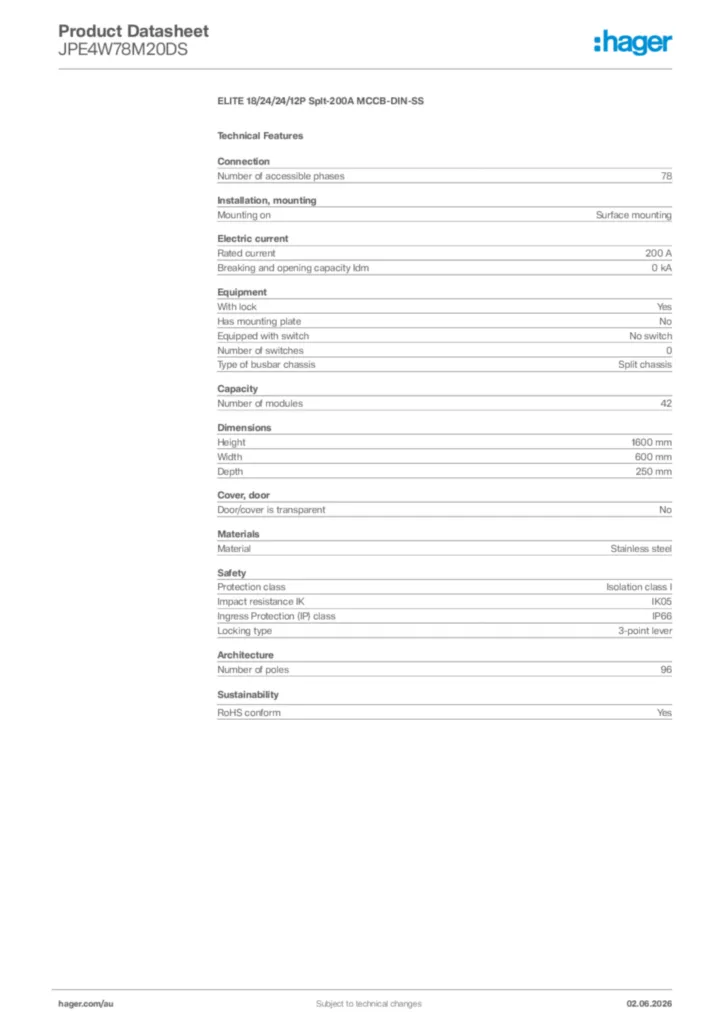

Technical properties
Connection
-
Number of accessible phases78
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Rated current IN200 A
-
Breaking and opening capacity Idm0
Equipment
-
With lockYes
-
Has mounting plateNo
-
Equipped with switchNo switch
-
Number of switches0
-
Type of busbar chassisSplit chassis
Capacity
-
Number of modules42
Dimensions
-
Height1600 mm
-
Width600 mm
-
Depth250 mm
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialStainless steel
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP66
-
Locking type3-point lever
Architecture
-
Number of poles96
