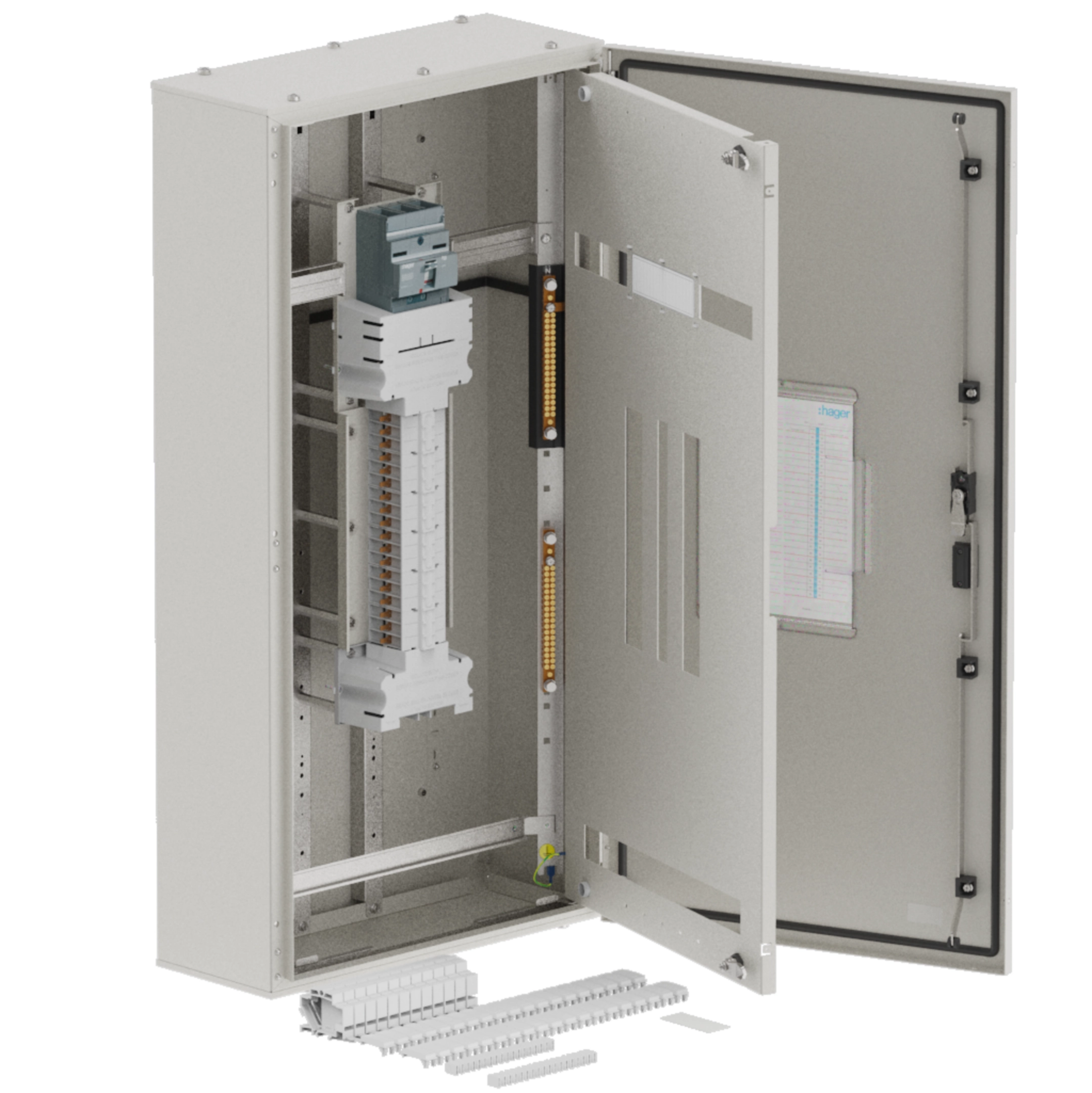

DB, elite, 36Pole, 200A MCCB Twin,8 Mod+26 Mod, grey,1200x600x250mm JPE3600M20DW
EAN
9329659004100
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Emergency lighting kit 2 products available -
Document holder 1 products available -
Accessories/spare parts for low-voltage switch technology 16 products available -
Key for enclosures/cabinets 1 products available -
Insert for lock system 1 products available
Complete your system
-
FL72Z
Cylinder insert for key lock, Orion.Plus
-
FL78Z1AU
Elite, Swing handel lock with padlock option + Insert key
-

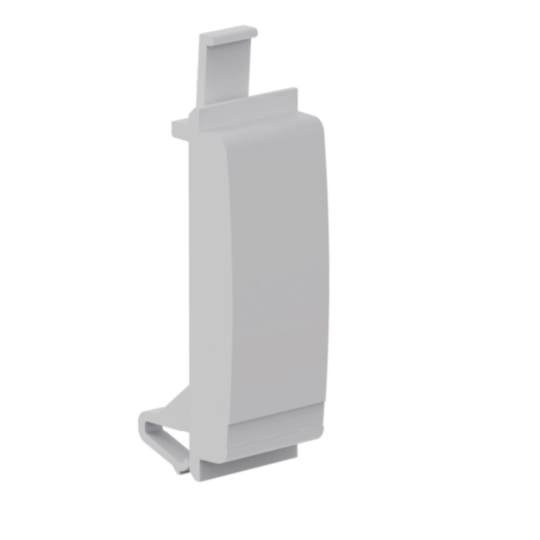

JP012Pole filler, Consumer Unit, Single pole for Din rail ways
-

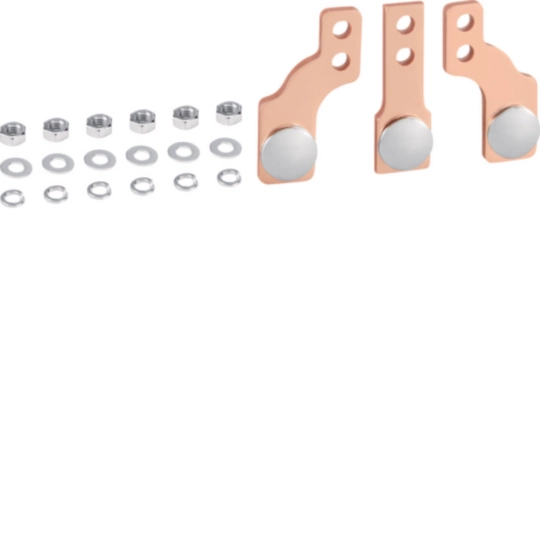

JPA0D250 -

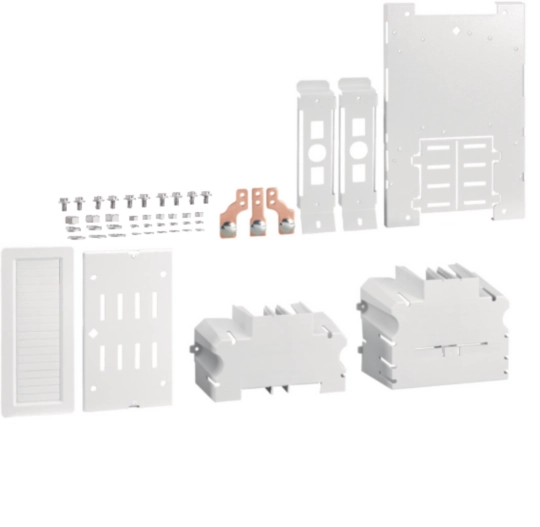

JPA0D25KMain direct incomer link kit
-

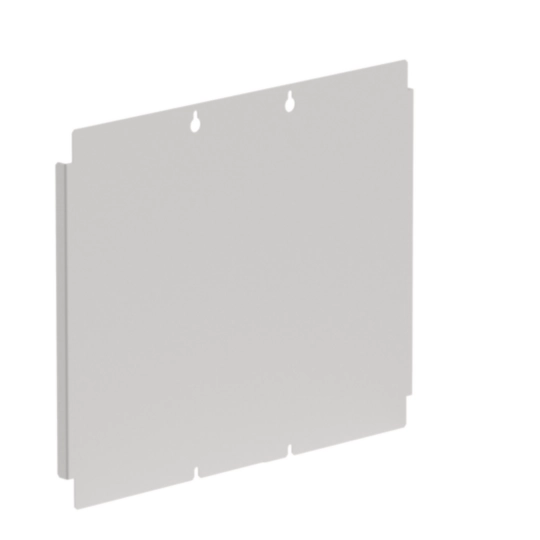

JPA0EXTMPMounting Plate, APEX/ELITE, for extension box
-
JPA0M160 -
JPA0M16Kmain incomer 160A MCCB (X250) link kit
-

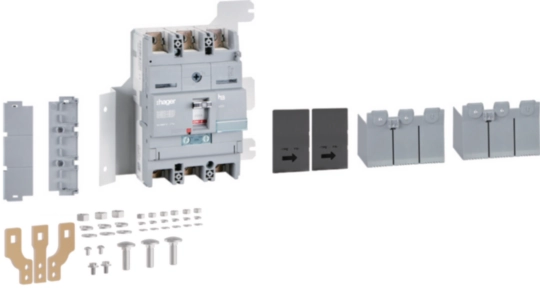

JPA0M200 -

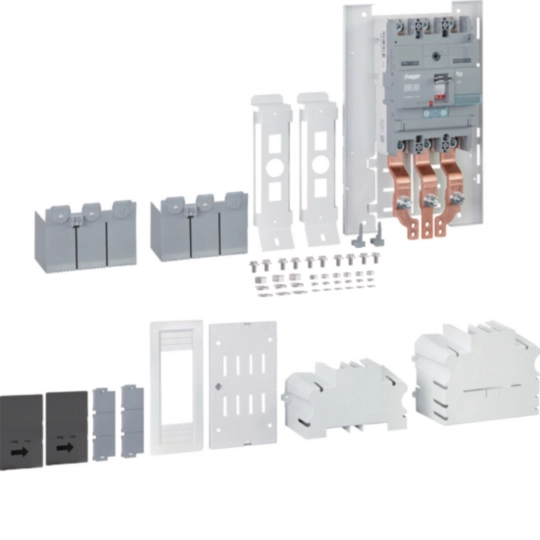

JPA0M20Kmain incomer 200A MCCB (X250) link kit
-

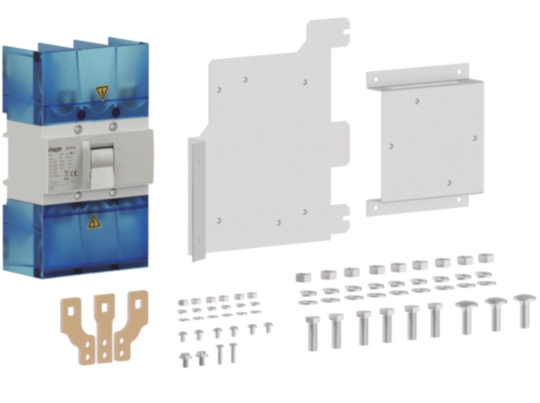

JPA0S160 -

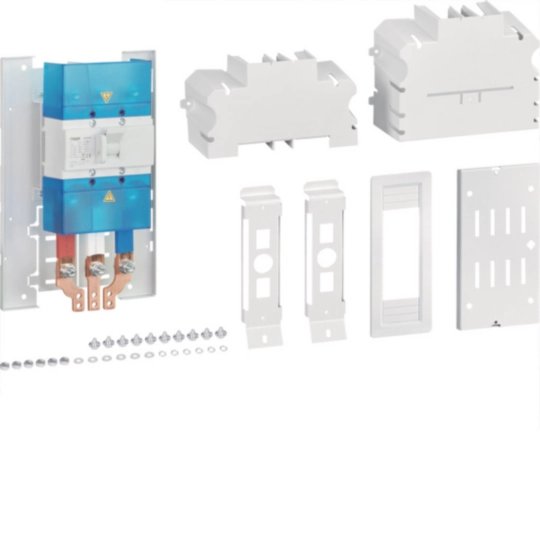

JPA0S16KPerforma 2 primary incoming link Kit
-

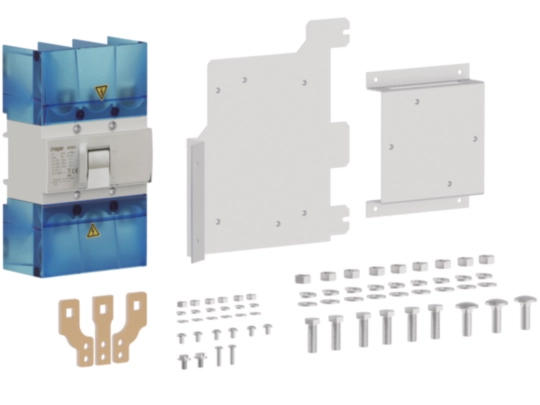

JPA0S250 -
JPA0S25Kmain incomer 250A switch link kit
-

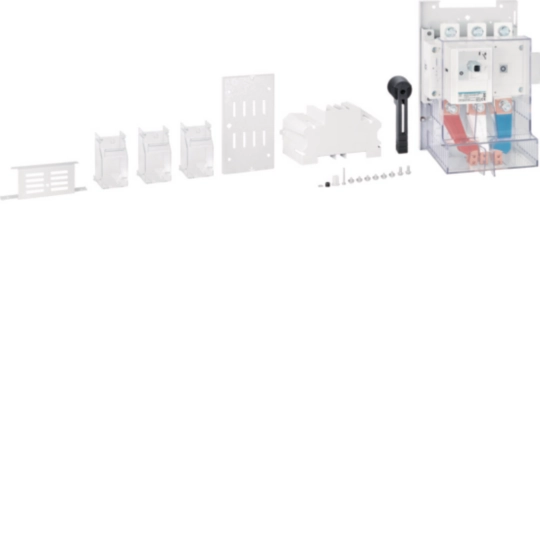

JPA0S40K400A main switch kit (HA357 )
-
JVC0PFL
Technical properties
Connection
-
Number of accessible phases36
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Rated current200 A
Equipment
-
With lockYes
-
Has mounting plateNo
Capacity
-
Number of modules40
Dimensions
-
Height1200 mm
-
Width600 mm
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP66
-
Locking type3-point lever, Key lock
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Manual
Manual en-GB 2024-03-05
PDF16,47 MB -
Brochure
Brochure en-AU 2023-12-15
PDF11,47 MB
