Extension Box, elite, 2x28 Modules, grey, 400x600x250mm JPE0EXTDW

EAN
9329659003660
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Extension Box, elite, 2x28 Modules, grey, 400x600x250mm

JPE0EXTDW

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Compatible products

  • Suitable with 11 products available

Suitable with

  • JPE1812NSSDW

    DB, elite, 18/12Pole, 250A Direct Twin, 8 Module, grey, 1200x600x250mm
    EUR 0.00  / *
  • JPE2418NSSDW

    DB, elite, 24/18Pole, 250A Direct Twin, 8 Modules, grey, 1200x600x250mm
    EUR 0.00  / *
  • JPE3012NSSDW

    DB, elite, 30/12Pole, 250A Direct Twin, 8 Modules, grey, 1200x600x250mm
    EUR 0.00  / *
  • JPE3618NSSDW

    DB, elite, 36/18Pole, 250A Direct Twin, 8 Modules, grey, 1400x600x250mm
    EUR 0.00  / *
  • JPE3630NSSDW

    DB, elite, 36/30Pole, 250A Direct Twin, 8 Modules, grey, 1400x600x250mm
    EUR 0.00  / *
  • JPE4212NSSDW

    DB, elite, 42/12Pole, 250A Direct Twin, 8 Modules, grey, 1400x600x250mm
    EUR 0.00  / *
  • JPE4224NSSDW

    DB, elite, 42/24Pole, 250A Direct Twin, 8 Modules, grey, 1600x600x250mm
    EUR 0.00  / *
  • JPE4818NSSDW

    DB, elite, 48/18Pole, 250A Direct Twin, 8 Modules, grey, 1400x600x250mm
    EUR 0.00  / *
  • JPE4842NSSDW

    DB, elite, 48/42Pole, 250A Direct Twin, 8 Modules, grey, 1600x600x250mm
    EUR 0.00  / *
  • JPE6030NSSDW

    DB, elite, 60/30Pole, 200A Direct Twin, 8 Modules, grey, 1600x600x250mm
    EUR 0.00  / *
  • JPE7218NSSDW

    DB, elite, 72/18Pole, 250A Direct Twin, 8 Modules, grey, 1600x600x250mm
    EUR 0.00  / *

Technical properties

Connec­tion
  • Number of access­ible phases
    0
Install­a­tion, mounting
  • Mounting on
    Surface mounting
Equip­ment
  • Number of rows
    2
  • With lock
    Yes
  • Has mounting plate
    No
Capa­city
  • Number of modules
    48
Dimen­sions
  • Height
    400 mm
  • Width
    600 mm
  • Depth
    250 mm
  • Number of width units
    24
Cover, door
  • Door/­cover is trans­parent
    No
Mater­ials
  • Material
    Steel
  • RAL code
    7035
  • Colour
    Light grey
Safety
  • Protec­tion class
    Isol­a­tion class I
  • Impact resist­ance IK
    IK05
  • Ingress Protec­tion (IP) class
    IP66
  • Locking type
    3-point lever, Key lock
Archi­tec­ture
  • Number of poles
    0

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

Certifications and documents

125A 4 Way TPN Board c/w SD & SPD
PDF
17,17 MB
Hager REACH declaration JPE0EXTDW
PDF
RoHS report JPE0EXTDW
PDF

Downloads

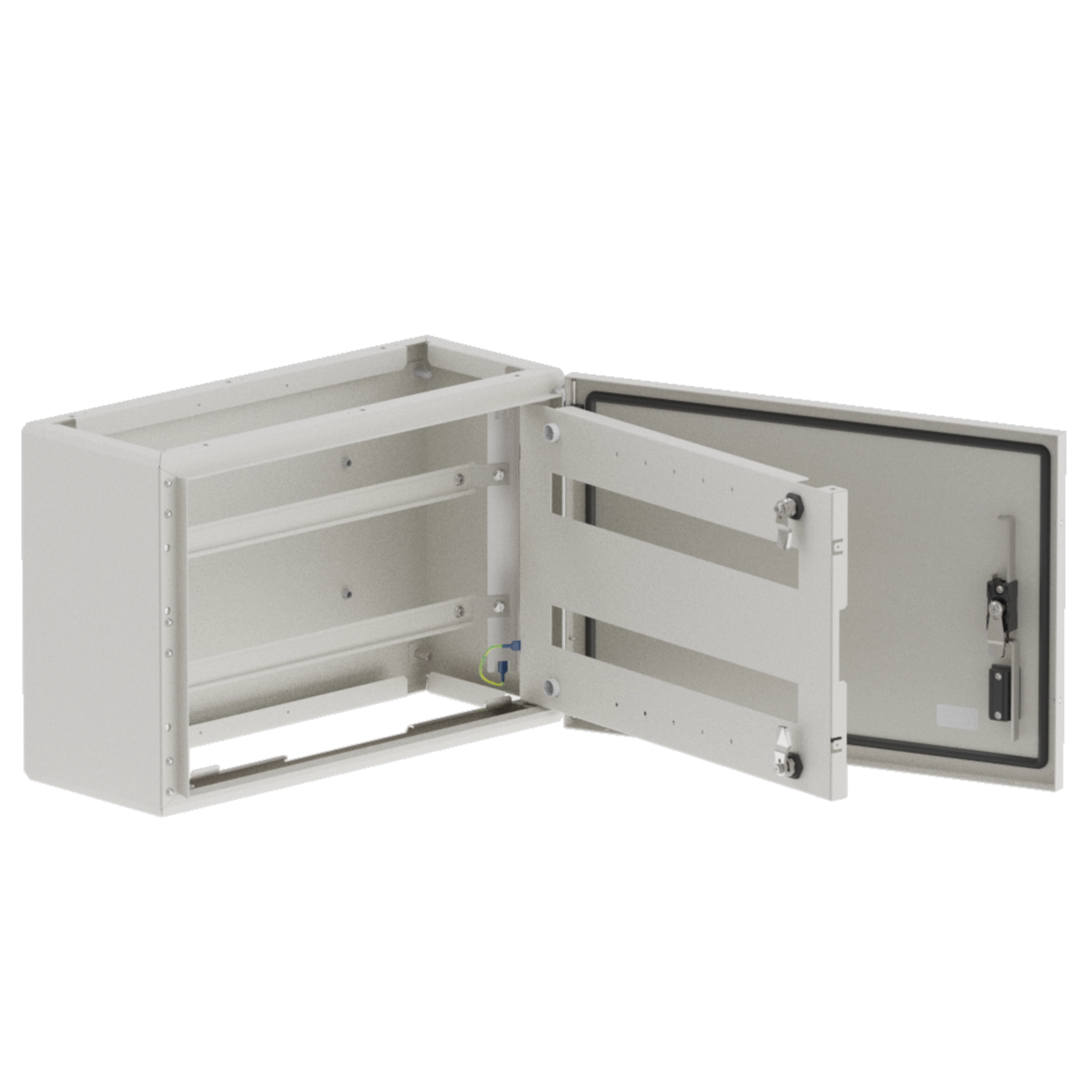

  • Product image

    Image JPE0EXTDW | Hager Australia

    Product Image JPE0EXTDW

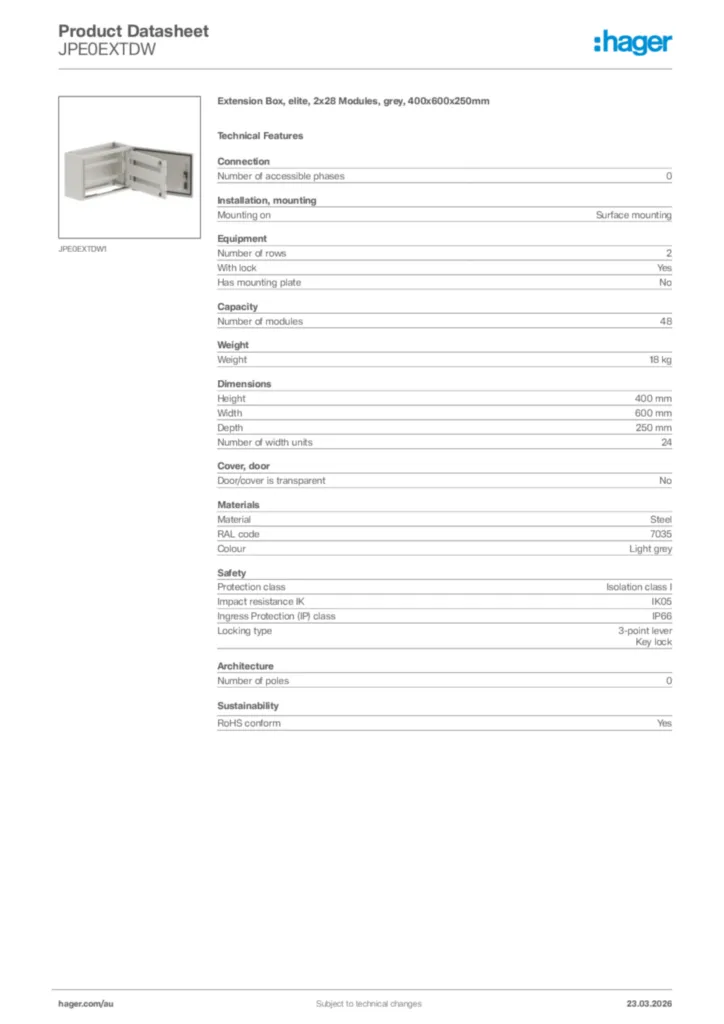

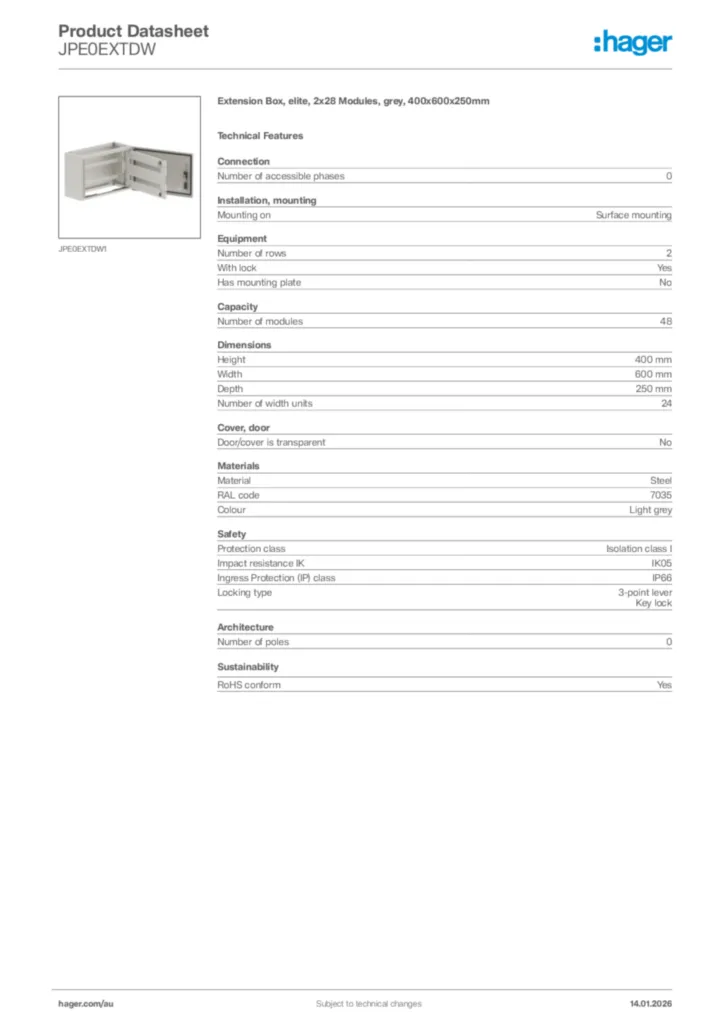

  • Product datasheet

    Image Hager Product data sheet JPE0EXTDW | Hager Australia

    Hager Product data sheet JPE0EXTDW

    Extension Box, elite, 2x28 Modules, grey, 400x600x250mm

    PDF

  • Manual

    Image Manual en-GB 2024-03-05 | Hager Australia

    Manual en-GB 2024-03-05

    PDF
    16,47 MB

  • Brochure

    Image Brochure en-AU 2023-12-15 | Hager Australia

    Brochure en-AU 2023-12-15

    PDF
    11,47 MB
