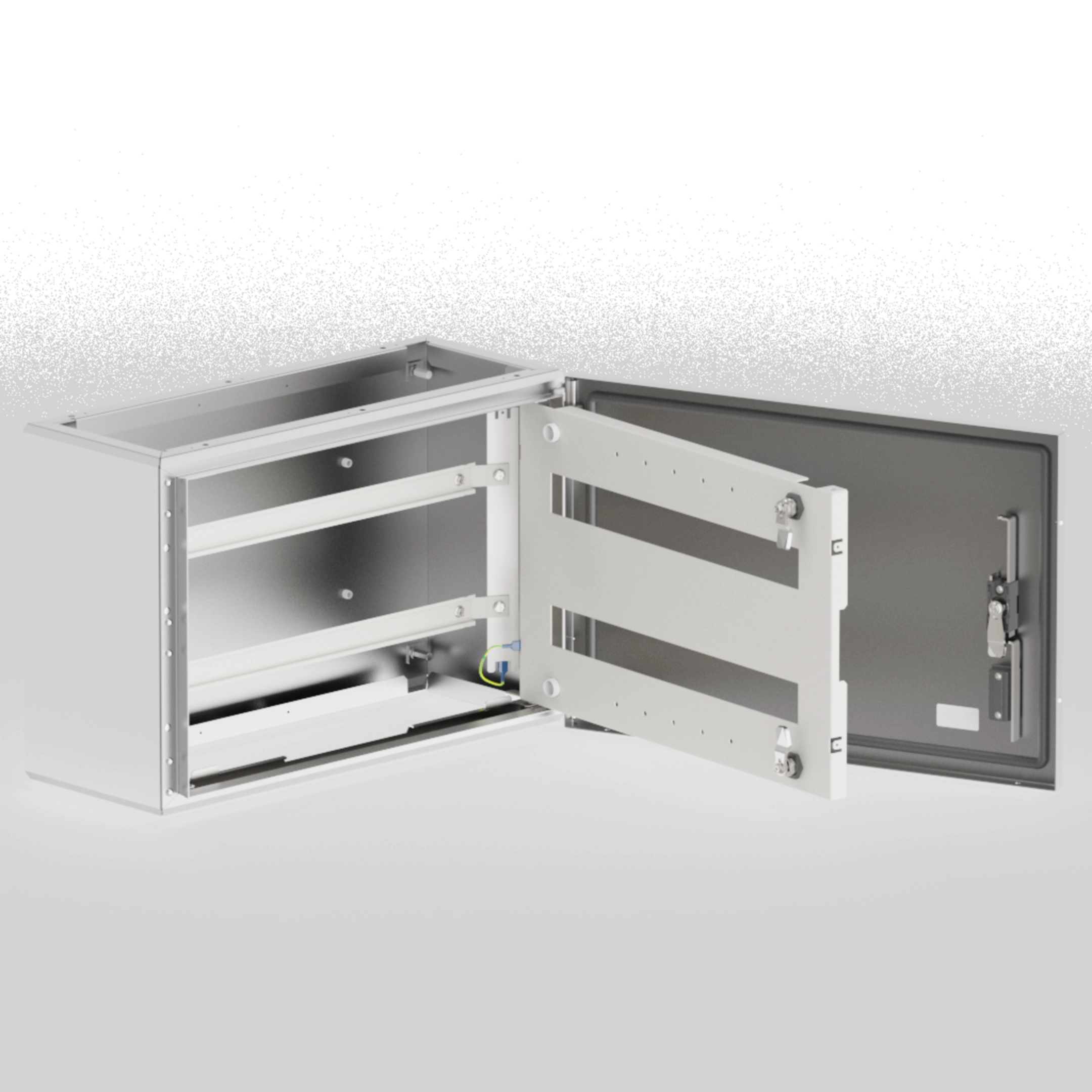

Hager The Hager ELITE Extension Box-48 Pole DIN (SS) 400x600x250 mm is a robust stainless-steel surface-mounted enclosure for up to 48 DIN modules over 2 rows (24 MU). IP66, IK05, Class I for dust, water, and impact resistance. Secure 3-point lever key lock, opaque door. Ideal for industrial or outdoor distribution and control expansions. Weight 18 kg, no mounting plate.
EAN
9329659007637
Packaging
1 Piece
Extension box 48 modules IP66 stainless steel surface mount 2-row key lock JPE0EXTDL
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 11 products available
Suitable with
-

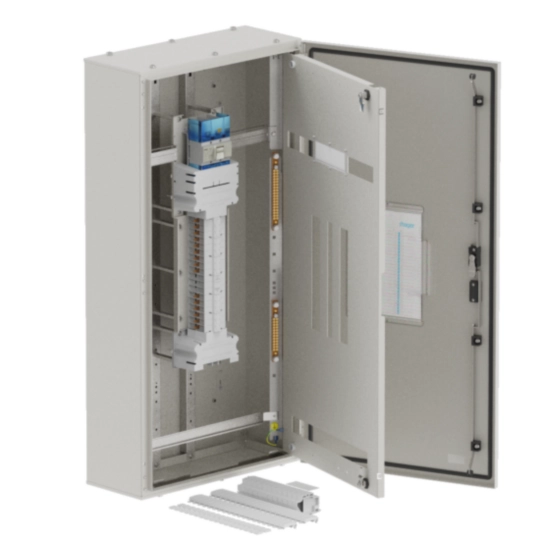

JPE1812S25DWDB, elite, 18/12Pole, 250A Isolator Twin, 8 Module, grey, 1200x600x250mm
-

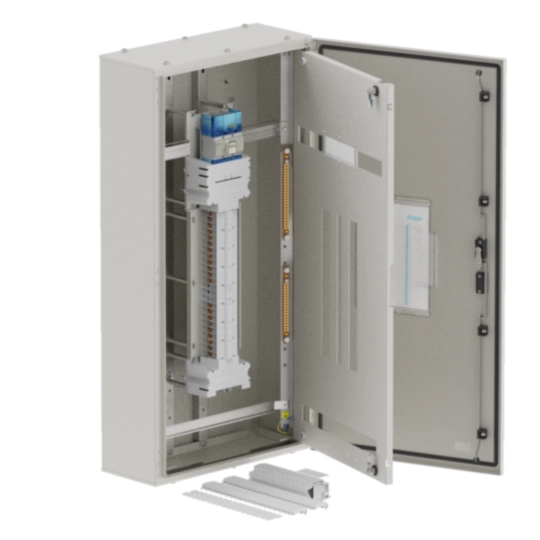

JPE2418S25DWDB, elite, 24/18Pole, 250A Isolator Twin, 8 Modules, grey, 1200x600x250mm
-

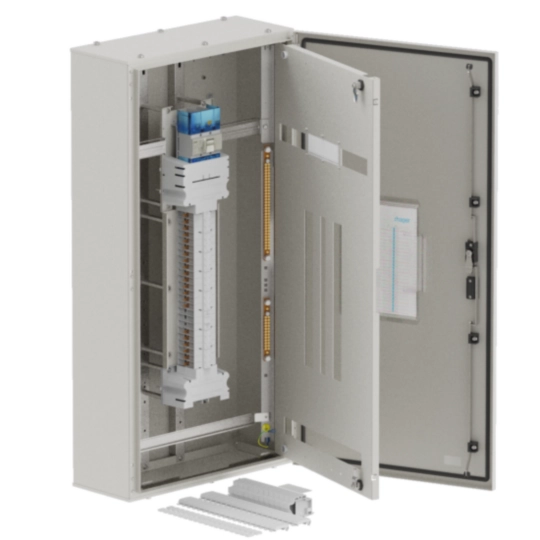

JPE3012S25DWDB, elite, 30/12Pole, 250A Isolator Twin, 8 Modules, grey, 1200x600x250mm
-
JPE3618S25DWDB, elite, 36/18Pole, 250A Isolator Twin, 8 Modules, grey, 1400x600x250mm
-

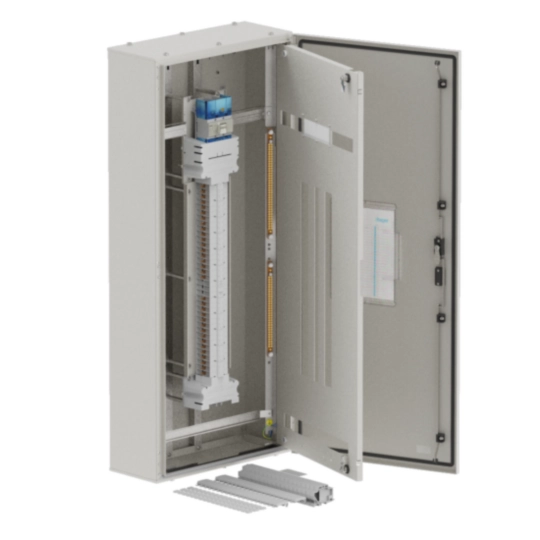

JPE3630S25DWDB, elite, 36/30Pole, 250A Isolator Twin, 8 Modules, grey, 1400x600x250mm
-

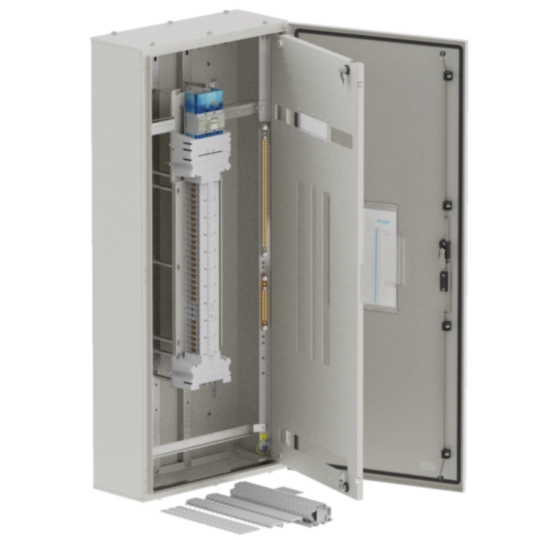

JPE4212S25DWDB, elite, 42/12Pole, 250A Isolator Twin, 8 Modules, grey, 1400x600x250mm
-

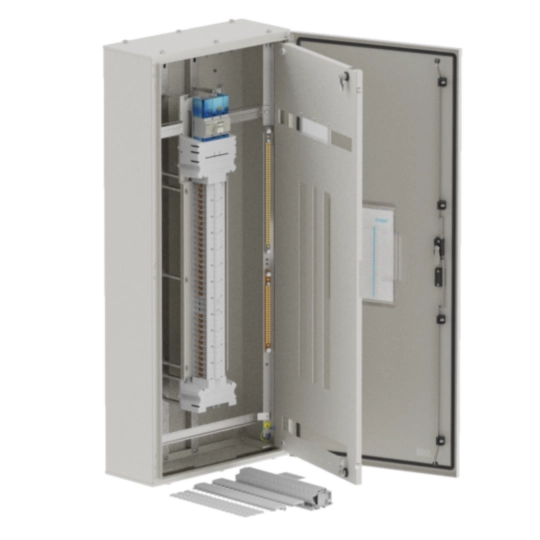

JPE4224S25DWDB, elite, 42/24Pole, 250A Isolator Twin, 8 Modules, grey, 1600x600x250mm
-

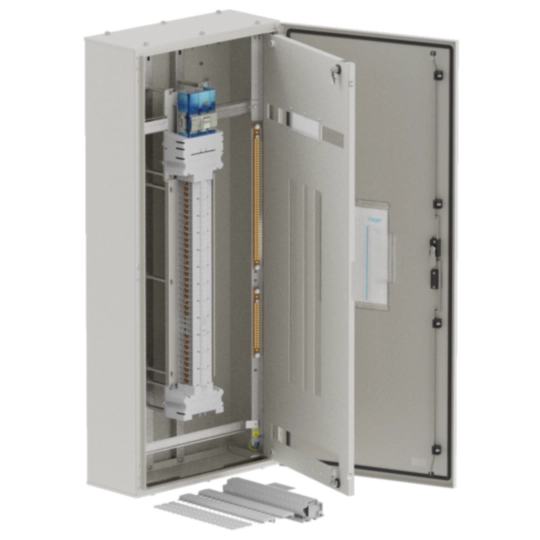

JPE4818S25DWDB, elite, 48/18Pole, 250A Isolator Twin, 8 Modules, grey, 1400x600x250mm
-

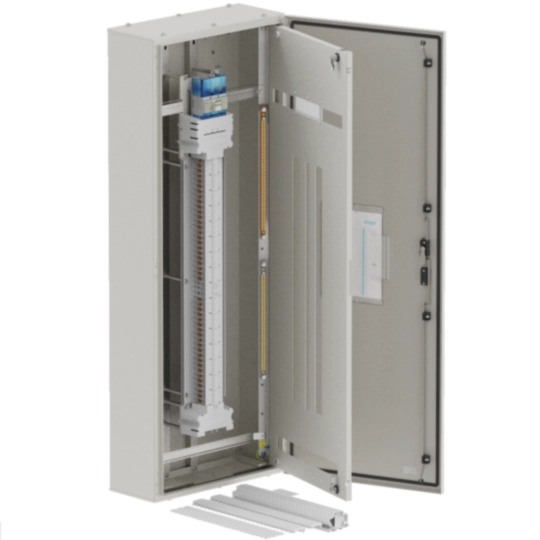

JPE4842S25DWDB, elite, 48/42Pole, 250A Isolator Twin, 8 Modules, grey, 1600x600x250mm
-
JPE6030S25DWDB, elite, 60/30Pole, 250A Isolator Twin, 8 Modules, grey, 1600x600x250mm
-

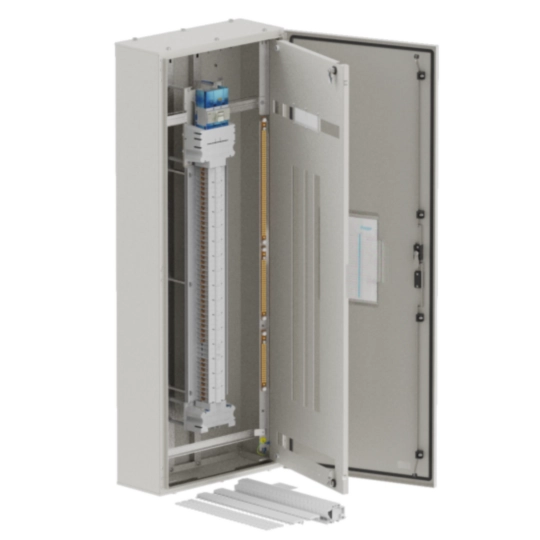

JPE7218S25DWDB, elite, 72/18Pole, 250A Isolator Twin, 8 Modules, grey, 1600x600x250mm
Technical properties
Connection
-
Number of accessible phases0
Installation, mounting
-
Mounting onSurface mounting
Equipment
-
Number of rows2
-
With lockYes
-
Has mounting plateNo
Capacity
-
Number of modules48
Weight
-
Weight18 kg
Dimensions
-
Height400 mm
-
Width600 mm
-
Depth250 mm
-
Number of width units24
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
ColourStainless steel
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP66
-
Locking type3-point lever, Key lock
Architecture
-
Number of poles0
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

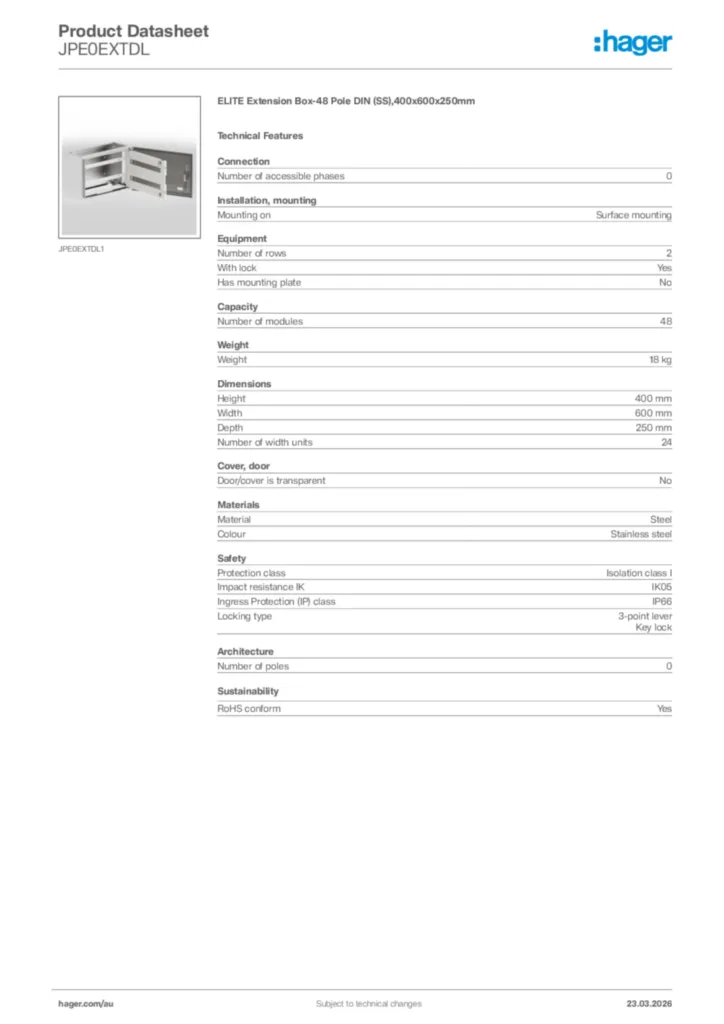

Hager Product data sheet JPE0EXTDL
