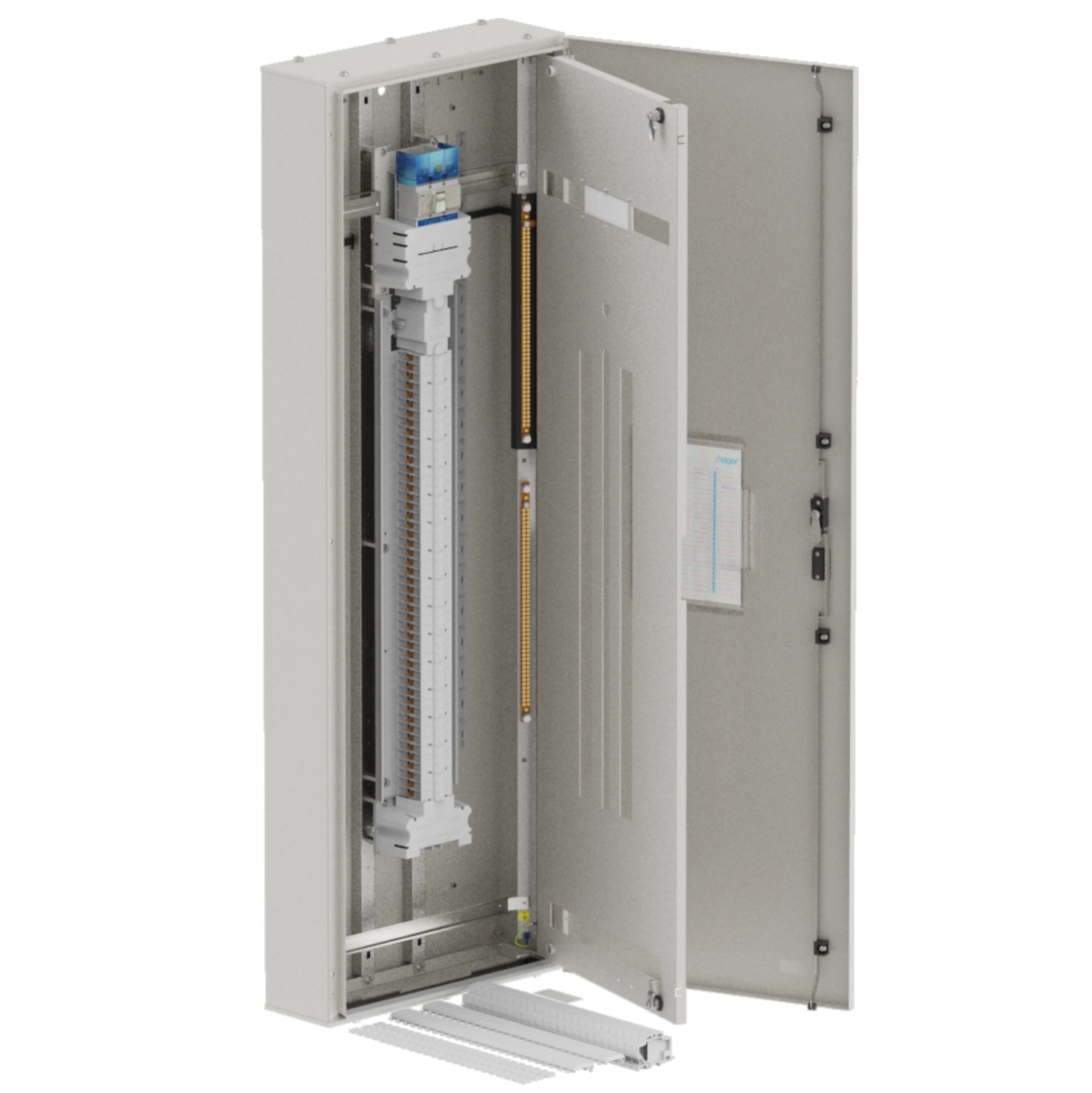

Hager The Hager apex+ DB 96‑pole metering distribution board delivers robust, space‑efficient power management for commercial sites. Surface‑mounted steel cabinet (RAL7035) with IP43/IK05, Class I. 42‑module capacity (2x8 + 26) on fixed load chassis with integrated CTs, ready for a 250 A isolator. 3‑point lever lock, non‑transparent door. Approx. 1800 x 600 x 200 mm, 70 kg. Ideal for metering and distribution.
EAN
9329659018794
Packaging
1 Piece
Apex+ distribution board 96P 250A IP43 IK05 42M surface 1800x600x200 RAL7035 JPD9600S25DW-M
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Power phase busbar 1 products available -
Accessories/spare parts for low-voltage switch technology 13 products available -
TPN/SPN boards 1 products available
Complete your system
-
JVC0PFL
-
JP012Pole filler, Consumer Unit, Single pole for Din rail ways
-
JPA0D250 -
JPA0D25KMain direct incomer link kit
-
JPA0EXTMPMounting Plate, APEX/ELITE, for extension box
-
JPA0M160 -
JPA0M16Kmain incomer 160A MCCB (X250) link kit
-
JPA0M200 -
JPA0M20Kmain incomer 200A MCCB (X250) link kit
-
JPA0S160 -
JPA0S16KPerforma 2 primary incoming link Kit
-
JPA0S250 -
JPA0S25Kmain incomer 250A switch link kit
Technical properties
Connection
-
Number of accessible phases96
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Rated current250 A
Equipment
-
With lockYes
-
Has mounting plateNo
-
Equipped with switchIsolator
-
Number of switches1
-
Type of busbar chassisFixed load chassis with CT integrated
Capacity
-
Number of modules42
Weight
-
Weight70 kg
Dimensions
-
Height1800 mm
-
Width600 mm
-
Depth200 mm
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP43
-
Locking type3-point lever
Architecture
-
Number of poles96
