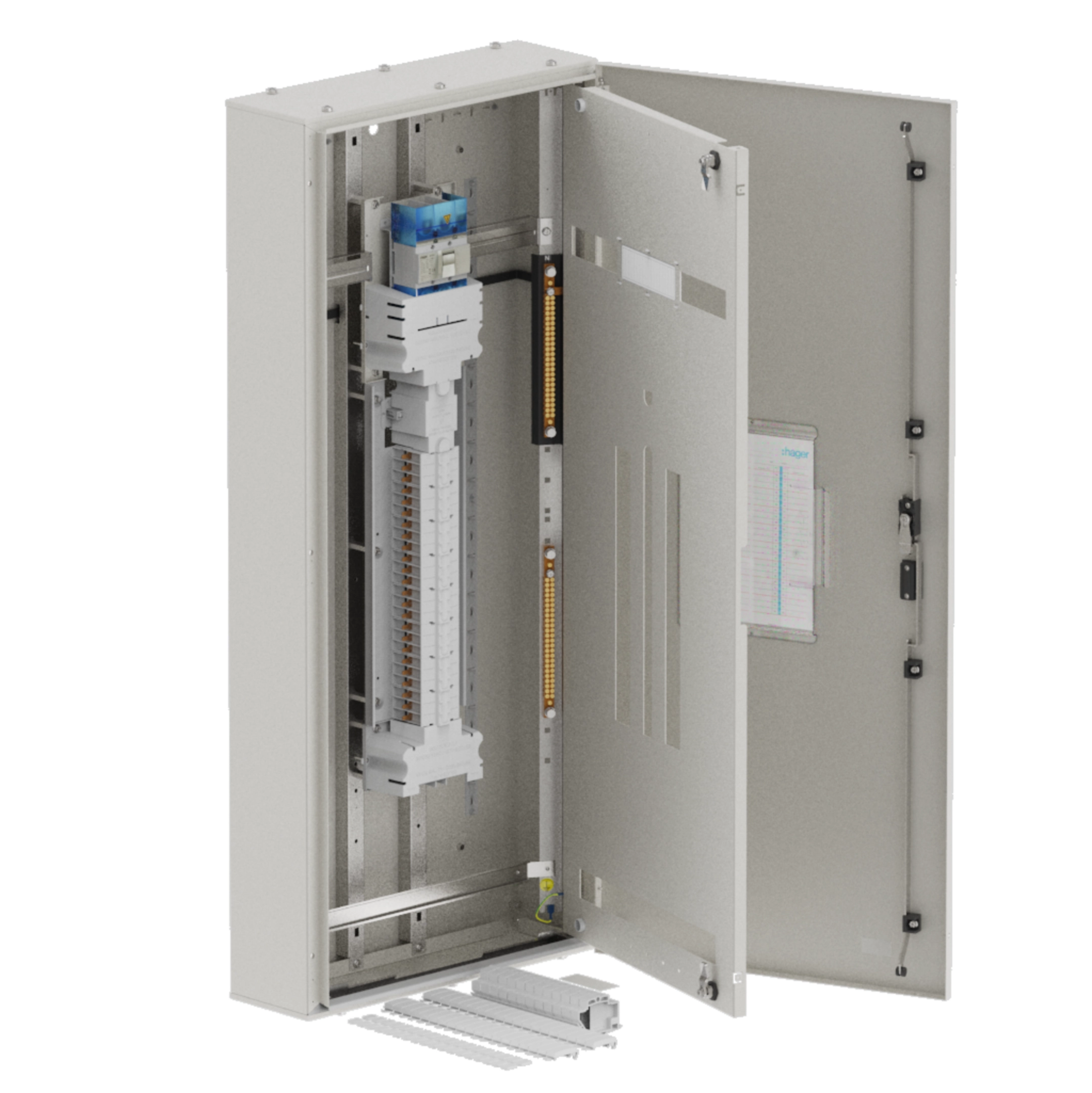

Hager The Hager apex+ DB 48-pole meter-ready board with 250A isolator provides reliable main isolation and distribution for multi-circuit installations. Surface-mounted steel enclosure (1400x600x200 mm) in RAL7035, IP43, IK05, Class I. Offers 42 modules (2x8 + 26) on a fixed load chassis with integrated CTs. Secure 3-point lever lock. Ideal for metered residential or light commercial panels where space and safety matter.
EAN
9329659018725
Packaging
1 Piece
Distribution board apex+ 48P Metered 250A Isolator IP43 IK05 42M CT integrated JPD4800S25DW-M
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Power phase busbar 2 products available -
Accessories/spare parts for low-voltage switch technology 13 products available -
TPN/SPN boards 1 products available
Complete your system
-
JVC0PFL
-
JP012Pole filler, Consumer Unit, Single pole for Din rail ways
-
JPA0D250 -
JPA0D25KMain direct incomer link kit
-
JPA0EXTMPMounting Plate, APEX/ELITE, for extension box
-
JPA0M160 -
JPA0M16Kmain incomer 160A MCCB (X250) link kit
-
JPA0M200 -
JPA0M20Kmain incomer 200A MCCB (X250) link kit
-
JPA0S160 -
JPA0S16KPerforma 2 primary incoming link Kit
-
JPA0S250 -
JPA0S25Kmain incomer 250A switch link kit
Technical properties
Connection
-
Number of accessible phases48
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Rated current250 A
Equipment
-
With lockYes
-
Has mounting plateNo
-
Equipped with switchIsolator
-
Number of switches1
-
Type of busbar chassisFixed load chassis with CT integrated
Capacity
-
Number of modules42
Weight
-
Weight65 kg
Dimensions
-
Height1400 mm
-
Width600 mm
-
Depth200 mm
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP43
-
Locking type3-point lever
Architecture
-
Number of poles48
