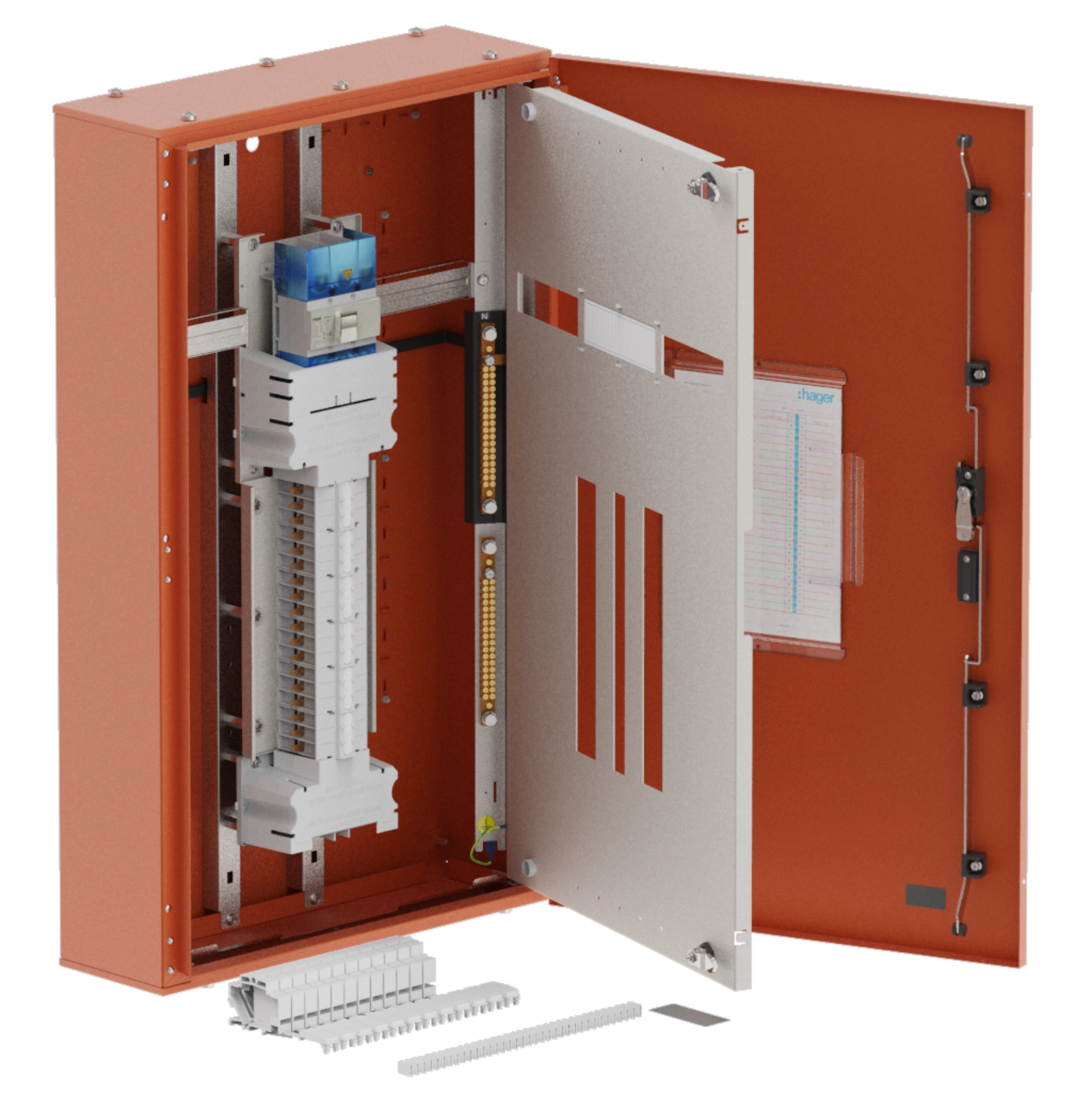

Hager The Hager single chassis apex 36‑pole enclosure delivers robust power distribution for commercial and industrial sites. Surface‑mounted and rated 250 A, it features a fixed‑load chassis and secure 3‑point key lock. Made of steel with IP43 and IK05 protection and Isolation Class I, it withstands demanding environments. Size 1000×600×200 mm, orange finish. Ideal for organizing multiple circuits with safe, controlled access.
EAN
9329659001536
Packaging
1 Piece
Apex single chassis 36-pole 250A isolator twin surface IP43 1000x600x200 orange JPA3600S25TX
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for low-voltage switch technology 13 products available -
Gland plate for enclosure 2 products available -
Document holder 1 products available -
Common Accessories 1 products available
Complete your system
-
JVC0PFL
-
JP012Pole filler, Consumer Unit, Single pole for Din rail ways
-
JPA0D250 -
JPA0D25KMain direct incomer link kit
-
JPA0EXTMPMounting Plate, APEX/ELITE, for extension box
-
JPA0M160 -
JPA0M16Kmain incomer 160A MCCB (X250) link kit
-
JPA0M200 -
JPA0M20Kmain incomer 200A MCCB (X250) link kit
-
JPA0S160 -
JPA0S16KPerforma 2 primary incoming link Kit
-
JPA0S250 -
JPA0S25Kmain incomer 250A switch link kit
Technical properties
Connection
-
Number of accessible phases36
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Rated current250 A
Equipment
-
With lockYes
-
Has mounting plateNo
-
Equipped with switchIsolator
-
Number of switches1
-
Type of busbar chassisFixed load chassis
Capacity
-
Number of modules16
Weight
-
Weight44 kg
Dimensions
-
Height1000 mm
-
Width600 mm
-
Depth200 mm
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
ColourOrange
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP43
-
Locking type3-point lever, Key lock
Architecture
-
Number of poles36
