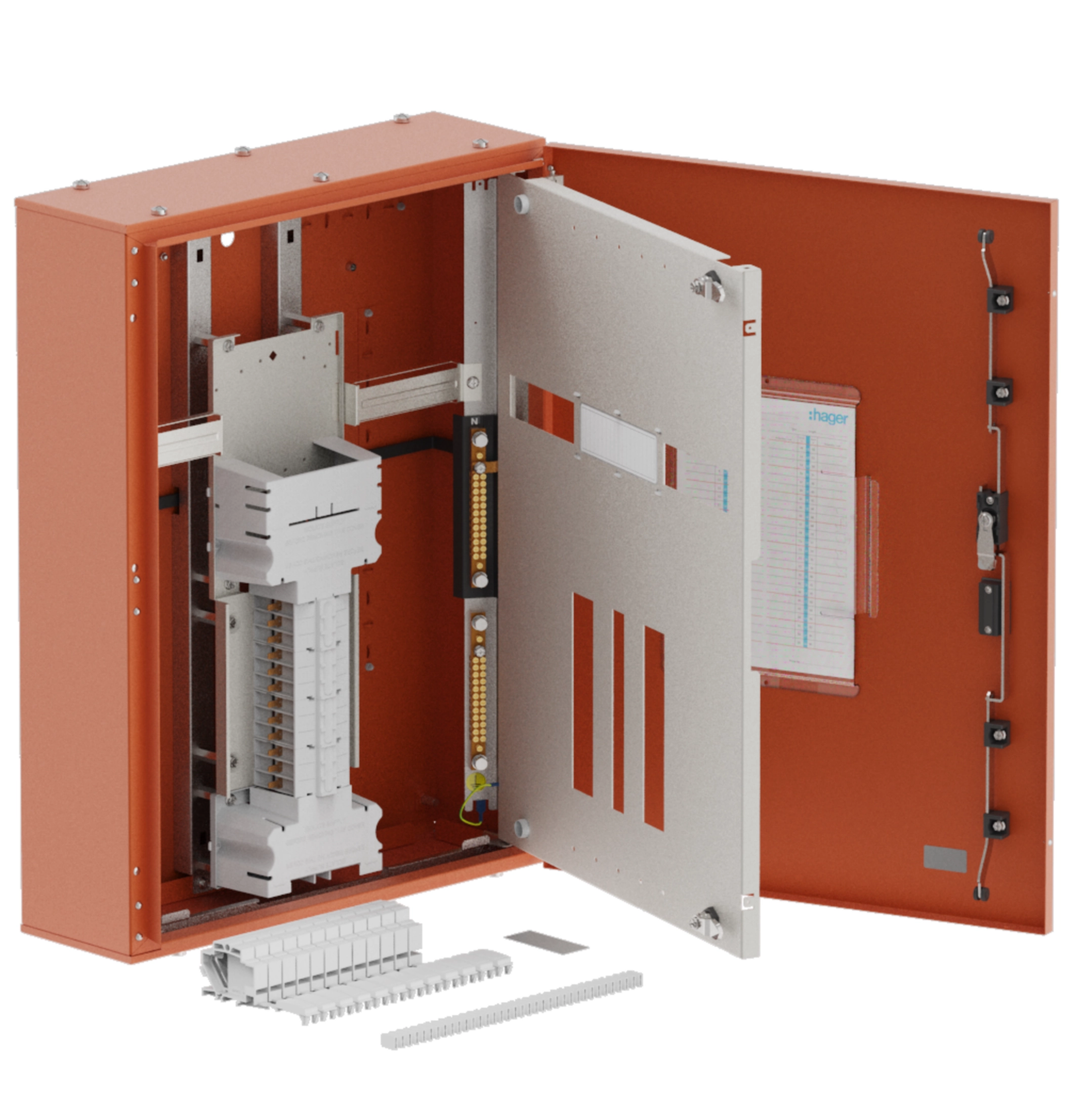

Hager The Hager Apex Single Chassis 24‑pole 250A Direct Twin provides a robust, surface‑mounted fixed‑load busbar frame for reliable power distribution. It accommodates up to 16 modules, with steel construction, IP43 and IK05 ratings, and Class I insulation. A non‑transparent door with 3‑point key lock enhances safety. Sized 800×600×200 mm and finished in orange, it suits commercial and industrial installations.
EAN
9329659001390
Packaging
1 Piece
Apex Single Chassis 24P 250A Direct Twin IP43, 800x600x200, Orange JPA2400NSSTX
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for low-voltage switch technology 13 products available -
Gland plate for enclosure 2 products available -
Document holder 1 products available -
Common Accessories 1 products available
Complete your system
-
JVC0PFL
-
JP012Pole filler, Consumer Unit, Single pole for Din rail ways
-
JPA0D250 -
JPA0D25KMain direct incomer link kit
-
JPA0EXTMPMounting Plate, APEX/ELITE, for extension box
-
JPA0M160 -
JPA0M16Kmain incomer 160A MCCB (X250) link kit
-
JPA0M200 -
JPA0M20Kmain incomer 200A MCCB (X250) link kit
-
JPA0S160 -
JPA0S16KPerforma 2 primary incoming link Kit
-
JPA0S250 -
JPA0S25Kmain incomer 250A switch link kit
Technical properties
Connection
-
Number of accessible phases24
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Rated current250 A
-
Breaking and opening capacity Idm0
Equipment
-
With lockYes
-
Has mounting plateNo
-
Equipped with switchNo switch
-
Number of switches0
-
Type of busbar chassisFixed load chassis
Capacity
-
Number of modules16
Weight
-
Weight34 kg
Dimensions
-
Height800 mm
-
Width600 mm
-
Depth200 mm
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
ColourOrange
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP43
-
Locking type3-point lever, Key lock
Architecture
-
Number of poles24
